Pick-Up Roller

D779 4 SM

1.4 PICK-UP ROLLER

1. Open the left cover.

2. Original feed unit (

page 3)

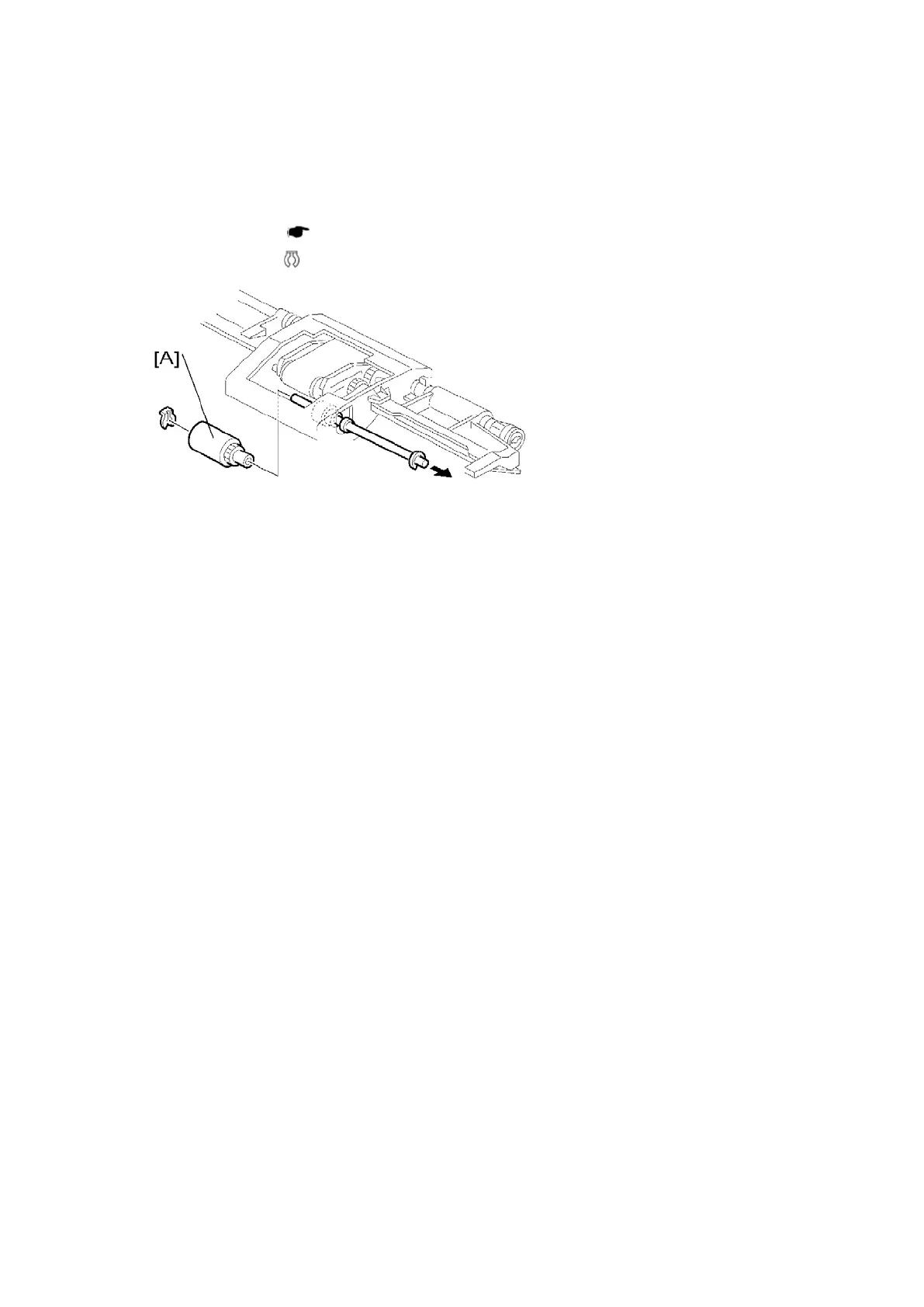

3. Pick-up roller [A] (

x 1)
