Ricoh D147 - Center-Folding Unit

Center-folding unit
SM 25 D686/D687
BOOKLET FINISHER
SR3150 / FINISHER
SR3140
(D686/D687)
1.13 CENTER-FOLDING UNIT

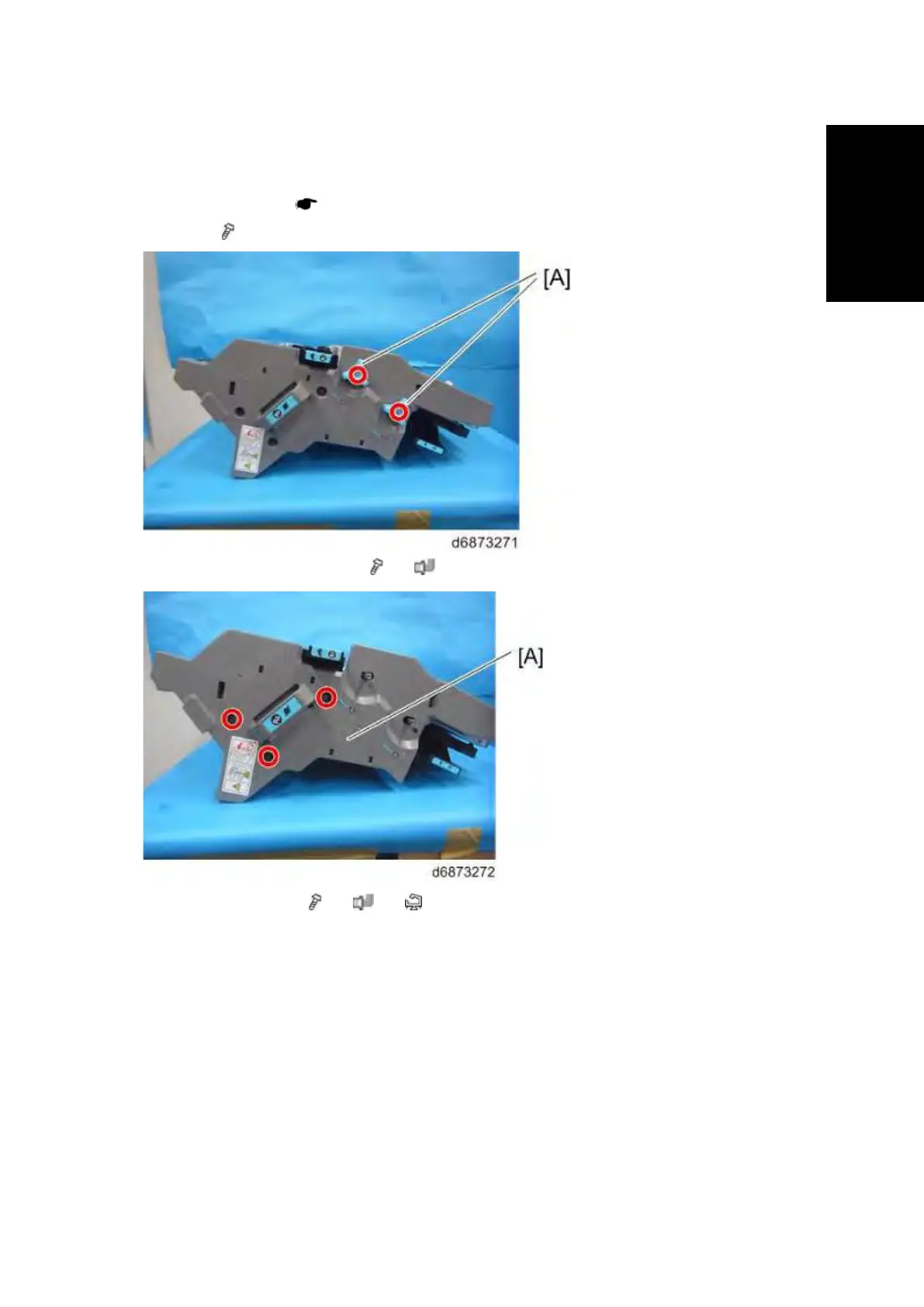

1. Booklet stitch unit ( page 23)
2. Knob [A] (
×2)
3. Booklet stitch unit cover [A] (
×3, ×1)
4. Remove connectors (
×1, ×4, ×4, ground plate×1)
