Ricoh D147 - Image Transfer Unit; Image Transfer Belt Unit; Adjustment before Replacing the Image Transfer Belt Unit; Replacement

Image Transfer Unit
SM 4-65 D146/D147/D148/D149/D150
Replacement
and Adjustment
4.10 IMAGE TRANSFER UNIT
4.10.1 IMAGE TRANSFER BELT UNIT

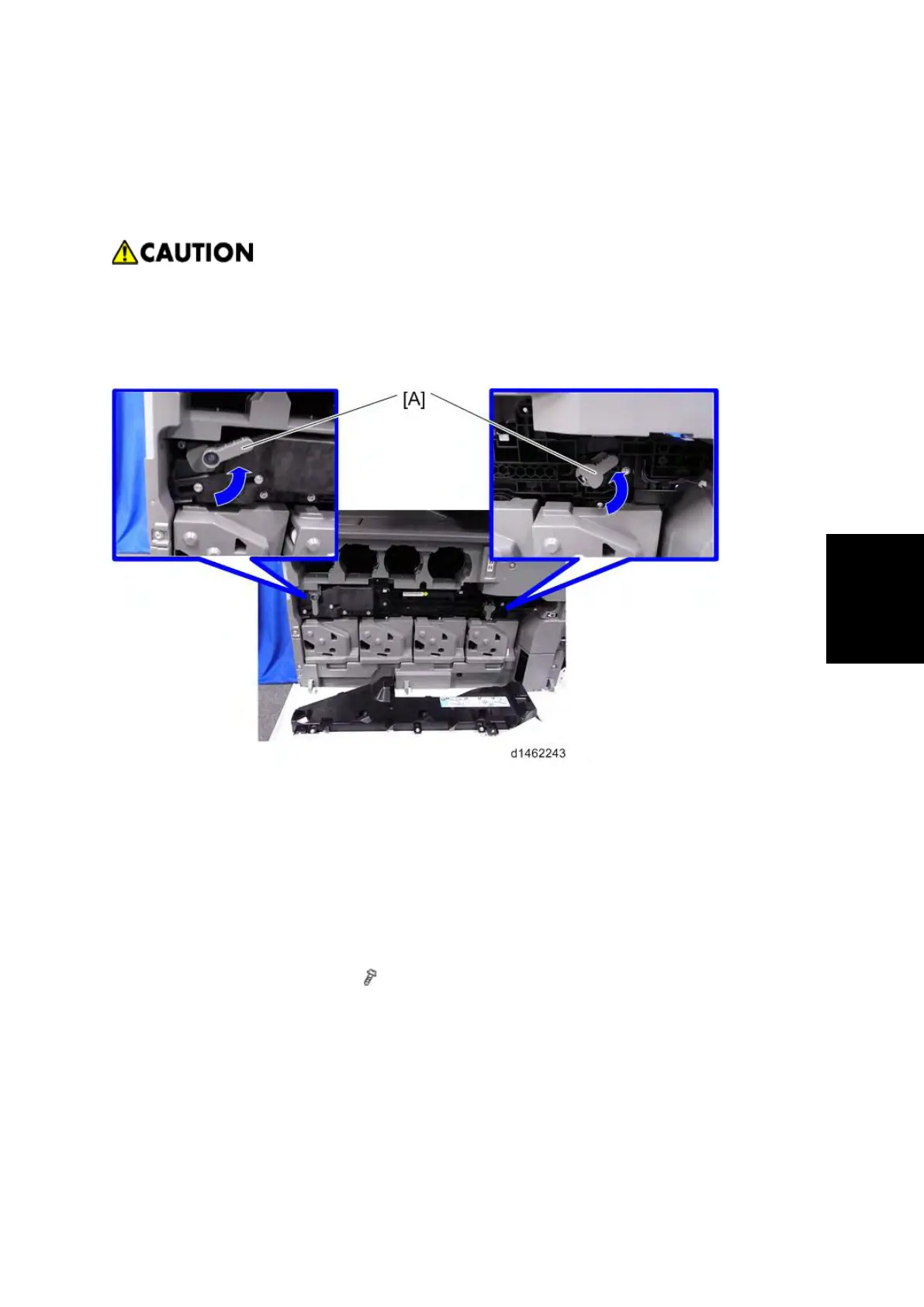

§ Note that if the two levers [A] are not pointing up, the image transfer belt unit cannot be
inserted.
§ Before you remove or attach the image transfer belt unit, remove the duplex unit and
open the paper transfer unit.
Adjustment before replacing the image transfer belt unit
Before replacing the Image Transfer Belt unit, set SP3-701-093 to "1" and switch the power OFF.
Then replace the Image Transfer Belt unit and switch the power ON.
Replacement
1. Open the front cover. (page 4-5 "Front Cover")
2. Image transfer front cover [A] ( ×1)
