Bridge Unit Transport Sensor

SM 7 D685

BRIDGE UNIT

BU3070 (D685)

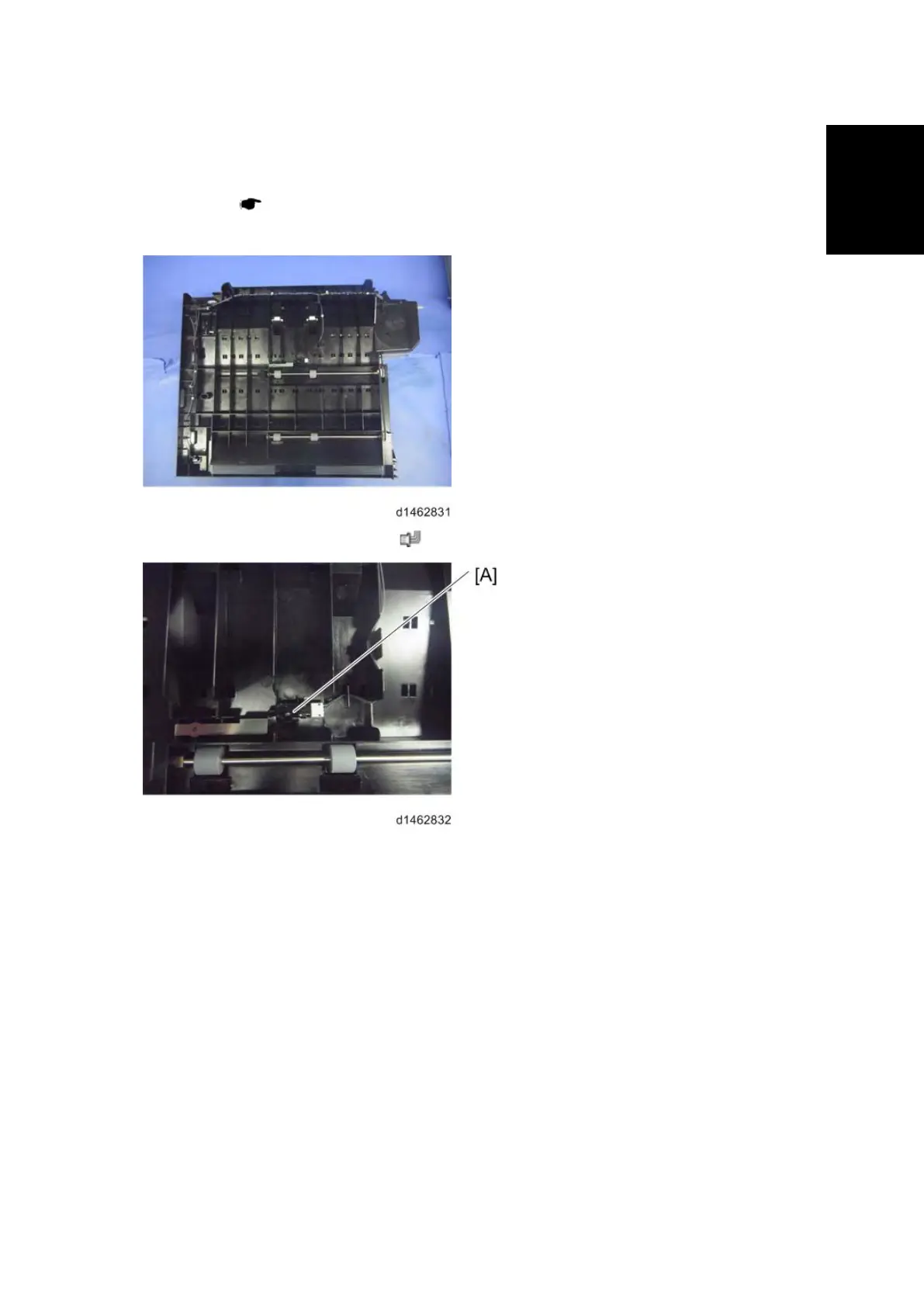

1.3 BRIDGE UNIT TRANSPORT SENSOR

1. Bridge unit ( page 1 "Drive Motor Unit")

2. Upside down.

3. Bridge unit transport sensor [A] (

×1)
