Ricoh D147 - Double Feed Sensor (D150 Only)

To Next Page

To Previous Page

Duplex Unit

D146/D147/D148/D149/D150 4-140 SM

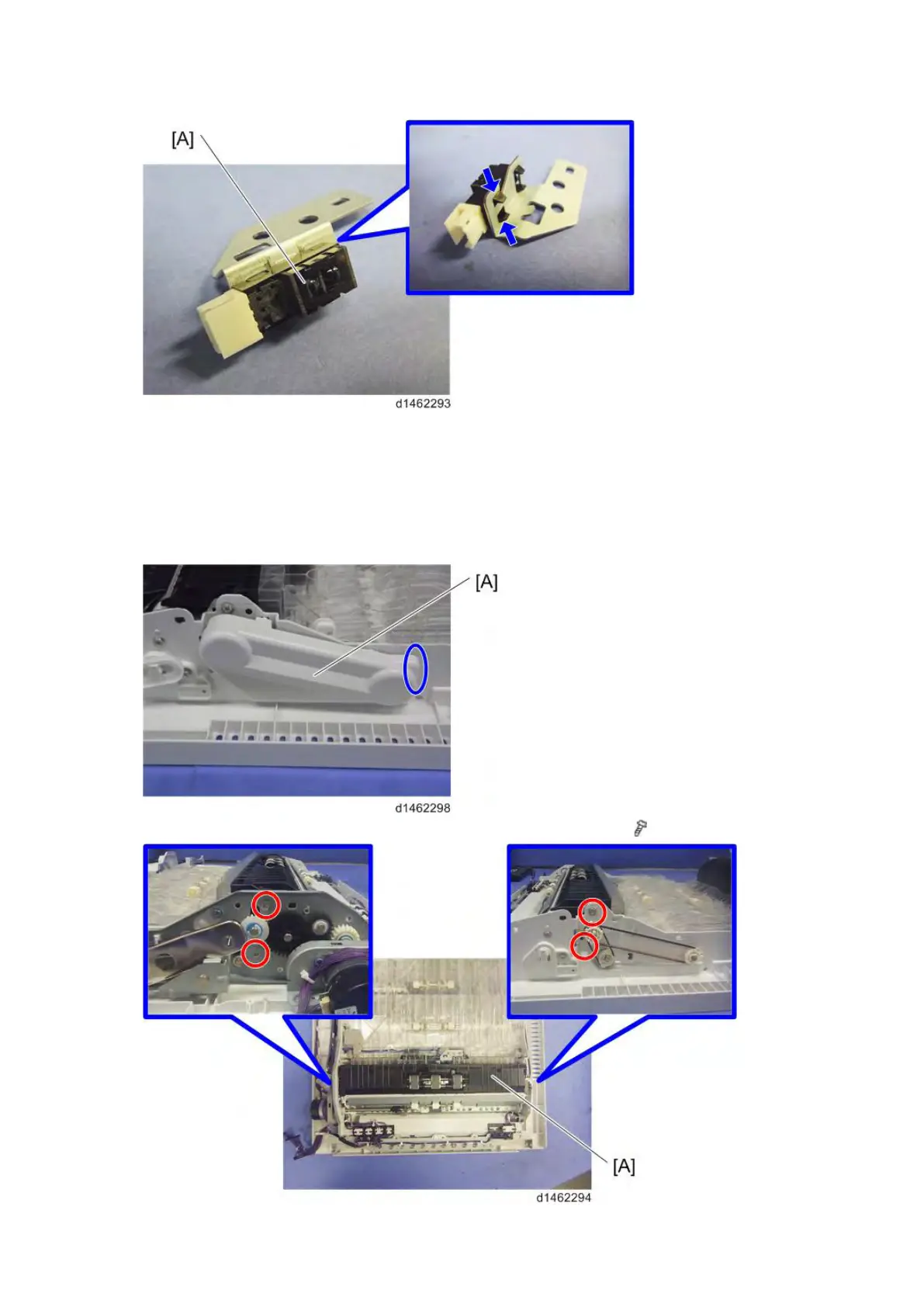

4.16.6 DOUBLE FEED SENSOR (D150 ONLY)

1. Duplex unit (page 4-134 "Duplex Unit")

2. Harness guide (page 4-136 "Duplex/By-pass Motor")

3. Gear cover [A]

4. Remove two tabs, and remove the vertical transport guide plate [A] (

×4).
