Ricoh D147 - Booklet Jogger Motor

To Next Page

To Previous Page

Booklet Unit

D688/D689 32 SM

1.5.3 BOOKLET JOGGER MOTOR

1. Booklet unit (page 27 "Booklet unit")

2. Press folding motor bracket.

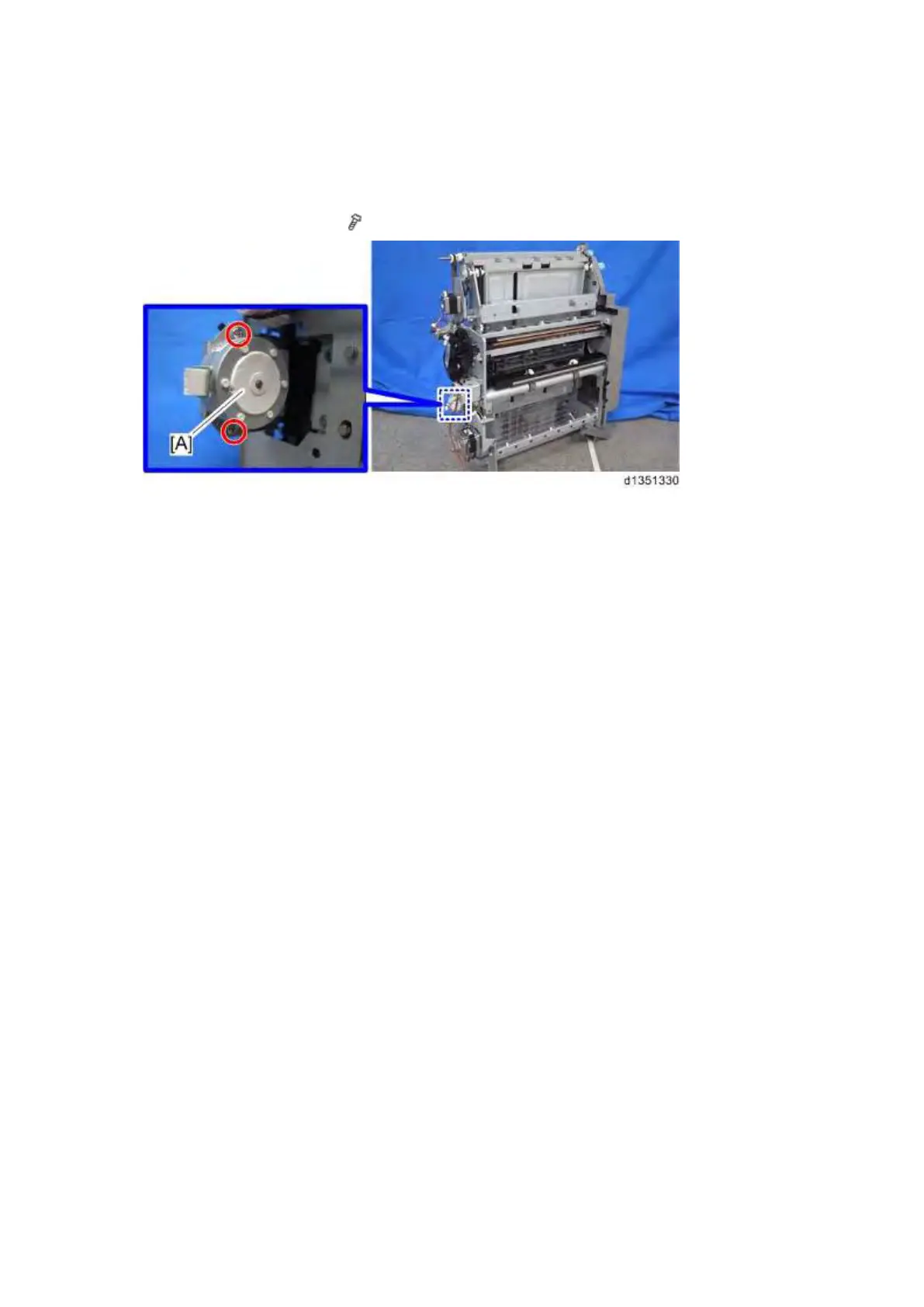

3. Booklet Jogger Motor [A] (

×2)
