ADF Bottom Plate Lift Motor

SM 33 D683

SPDF DF3080

(D683)

1.26 ADF BOTTOM PLATE LIFT MOTOR

1. ADF entrance motor along with the frame (page 30 "ADF Entrance Motor")

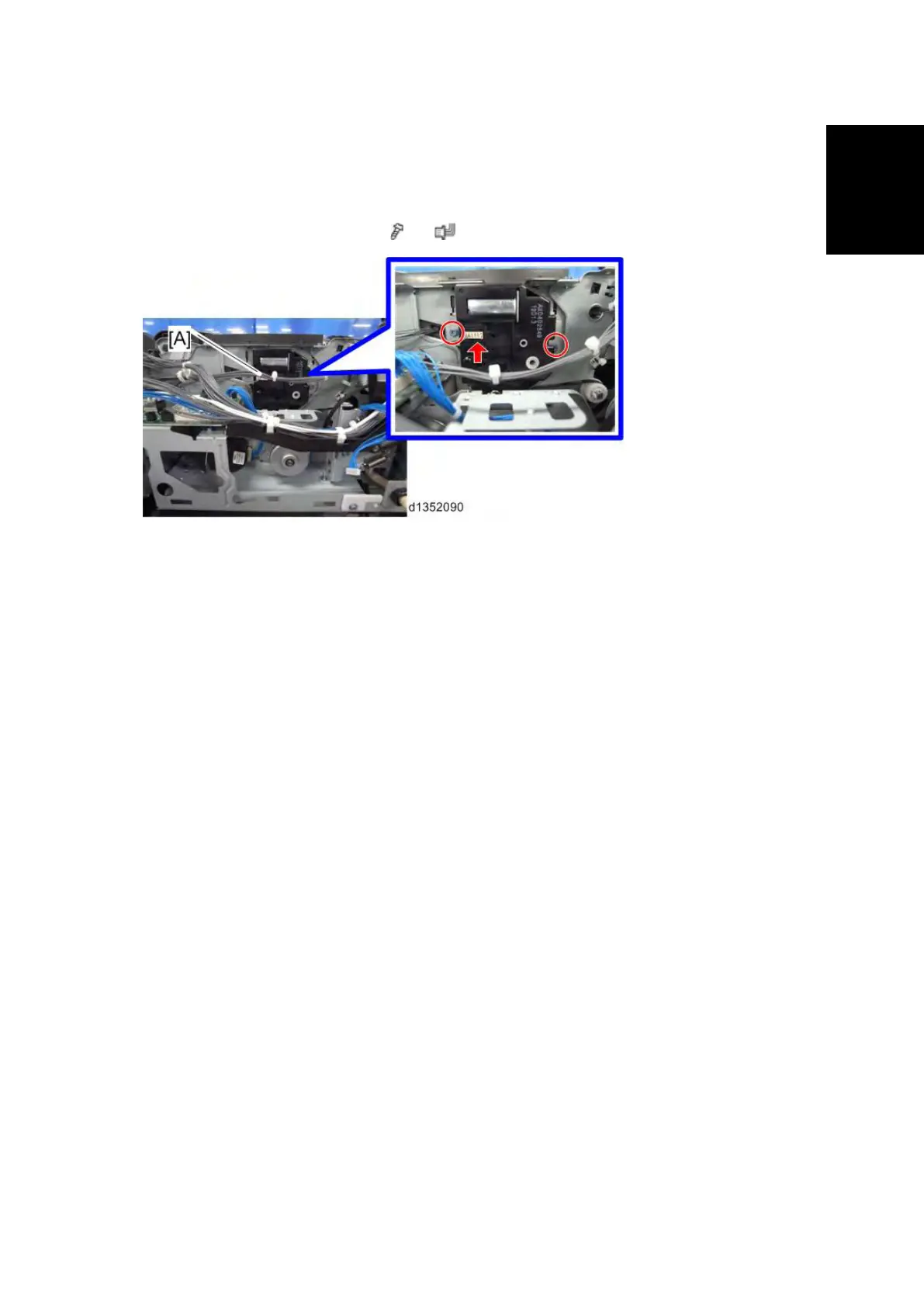

2. ADF bottom plate lift motor [A] (

×2, ×1)
