Ricoh D147 - Original Size Sensors and Skew Correction Sensor

Original Size Sensors and Skew Correction Sensor
D779 12 SM
1.10 ORIGINAL SIZE SENSORS AND SKEW CORRECTION
SENSOR
1. Open the left cover.
2. Original feed unit (
page 3)
3. Original tray (
page 2)

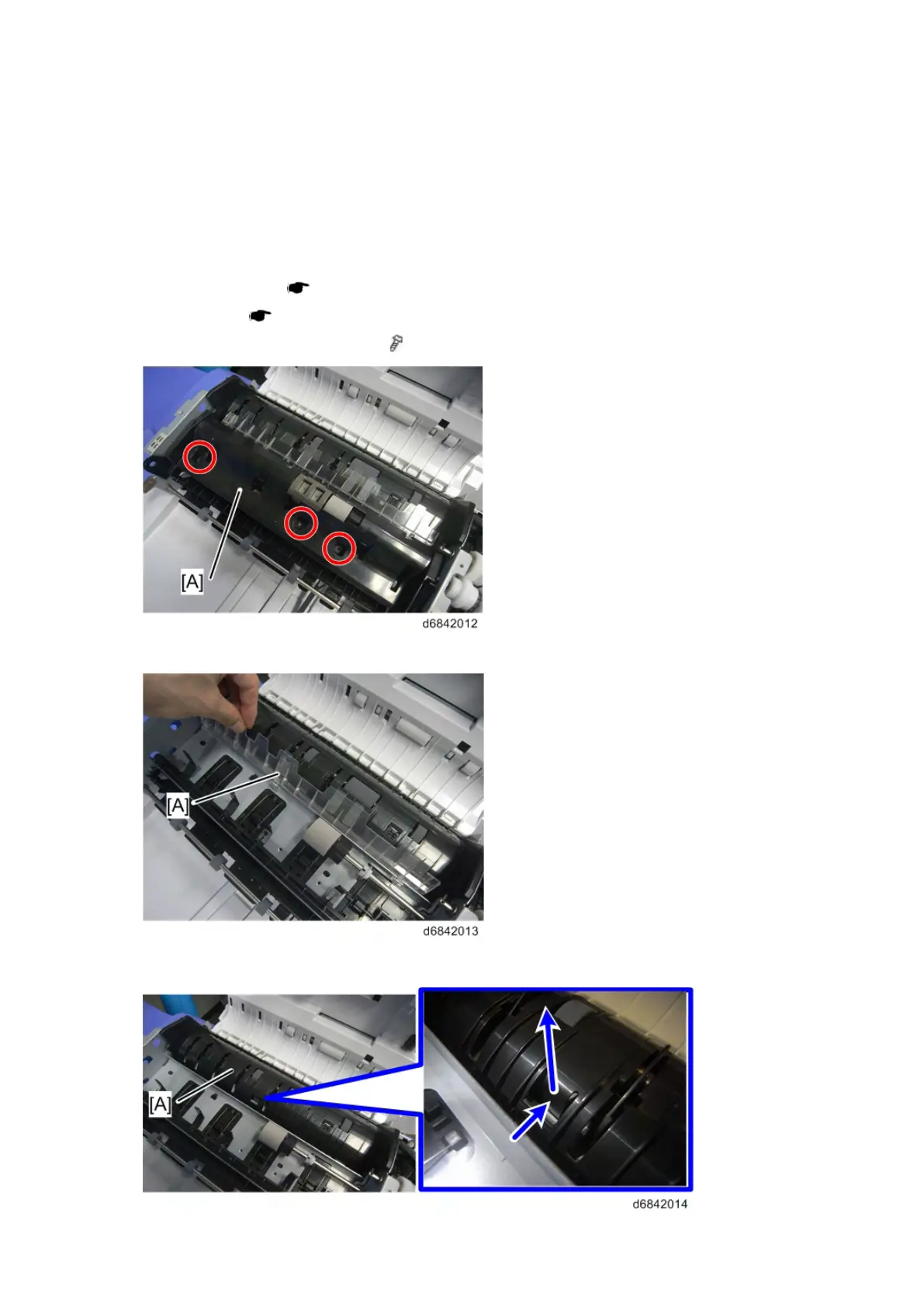

4. Original feed-in guide plate [A] (
x 3).
5. Feed guide [A]
6. Original turn guide plate [A] (hook x 1).
