1.6 FEED COVER

1. ADF front cover (page 7 "ADF Front Cover")

2. ADF rear cover (page 8 "ADF Rear Cover")

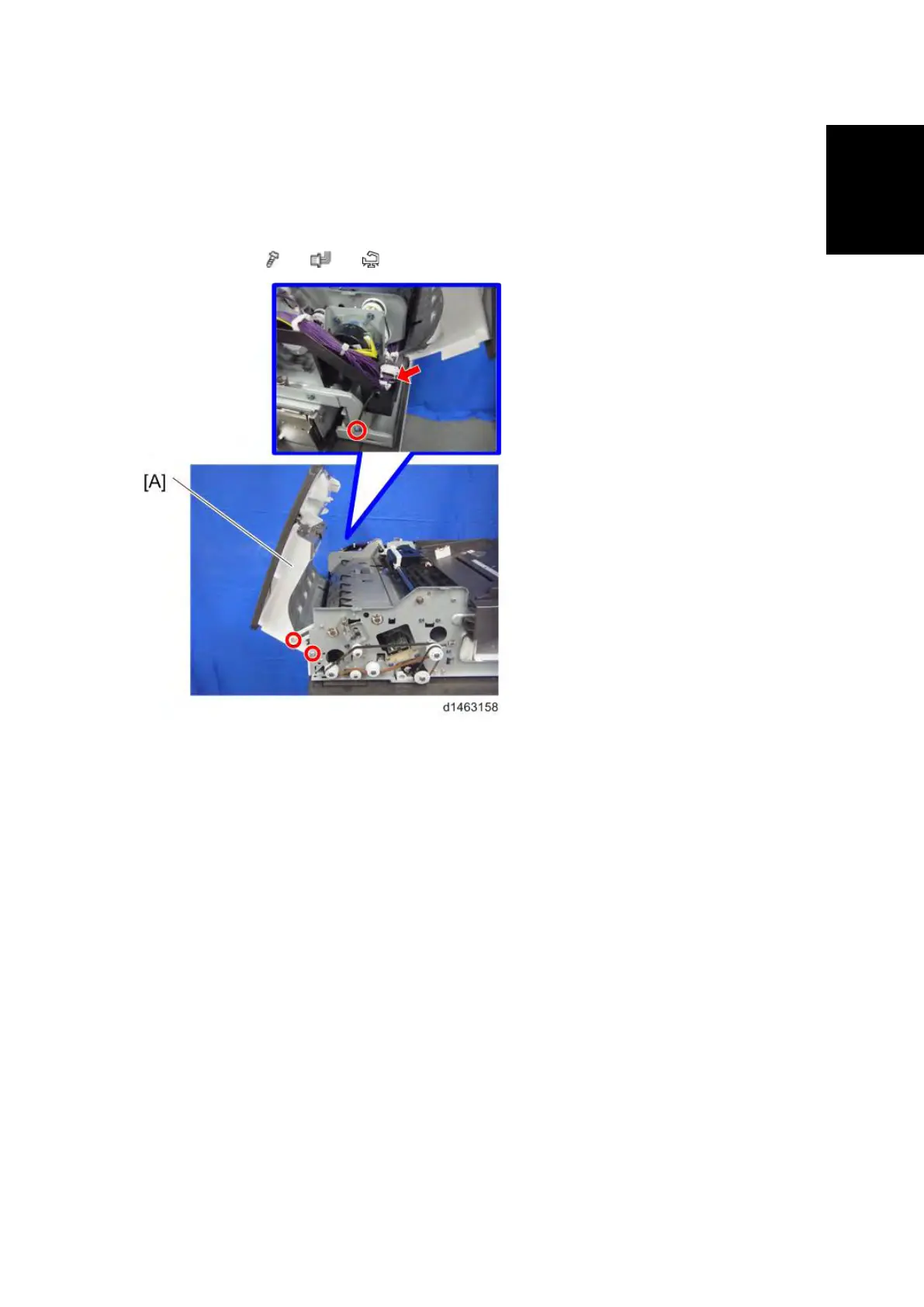

3. Feed cover [A] (

×3, ×1, ×2)
