Ricoh D147 - Adjusting the Scanner Wire; Scanner Wire (Front)

Scanner Unit
SM 4-37 D146/D147/D148/D149/D150
Replacement
and Adjustment
4.6.10 ADJUSTING THE SCANNER WIRE
Scanner Wire (Front)
1. Exposure glass (page 4-29 "Exposure Glass")
2. Scanner right cover (page 4-27 "Scanner Right Cover")
3. Operation panel (page 4-19 "Operation Panel")
4. Main power switch cover (page 4-13 "Main power switch cover")

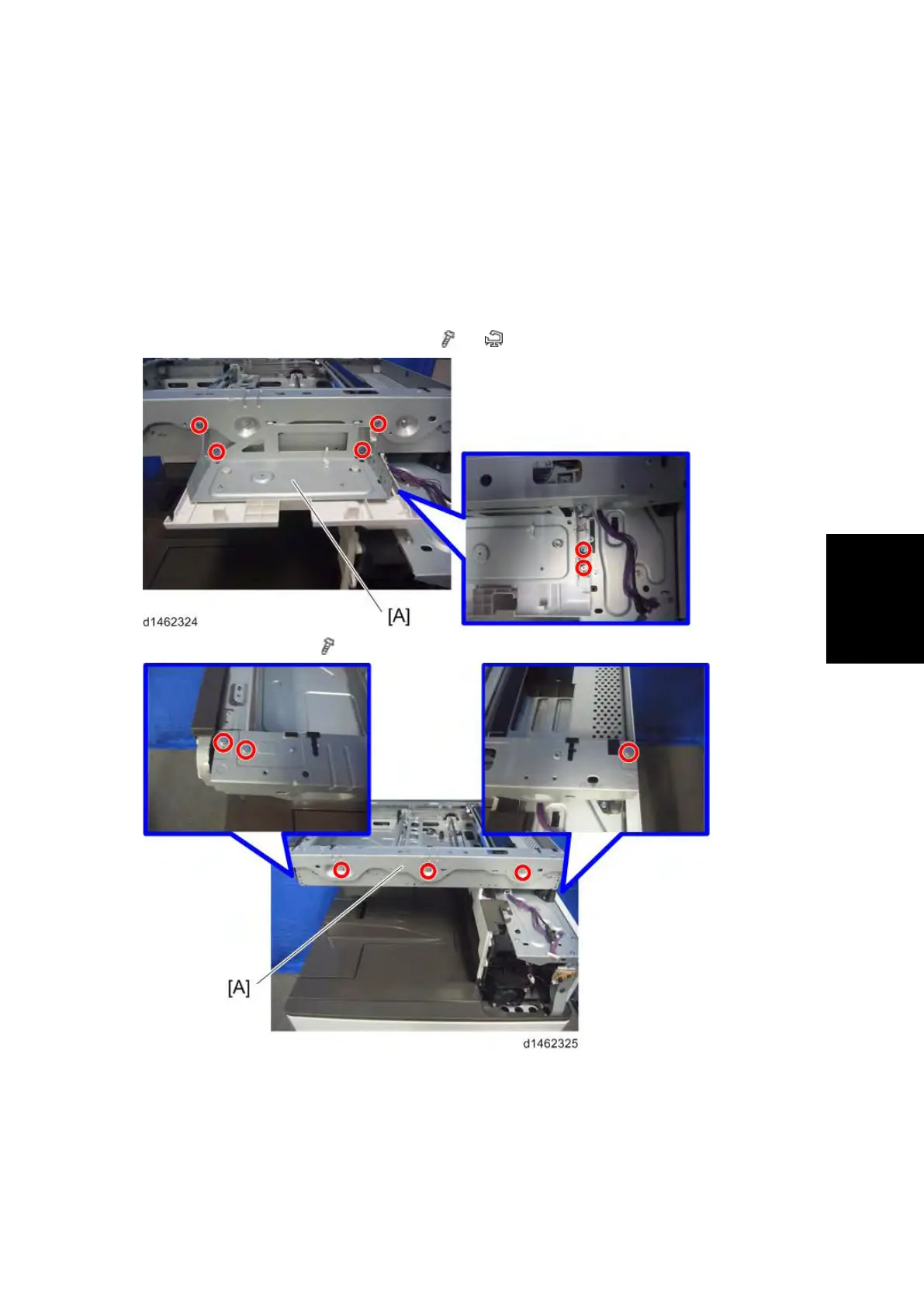

5. Lower bracket [A] of the operation panel (
×6, ×3).
6. Scanner front frame [A] ( ×6)
7. Move the 1st scanner carriage to the set position of the scanner fixing pin.
