Paper Feed Unit

SM 7 D695

LCIT PB3170

(D695)

1.6 PAPER FEED UNIT

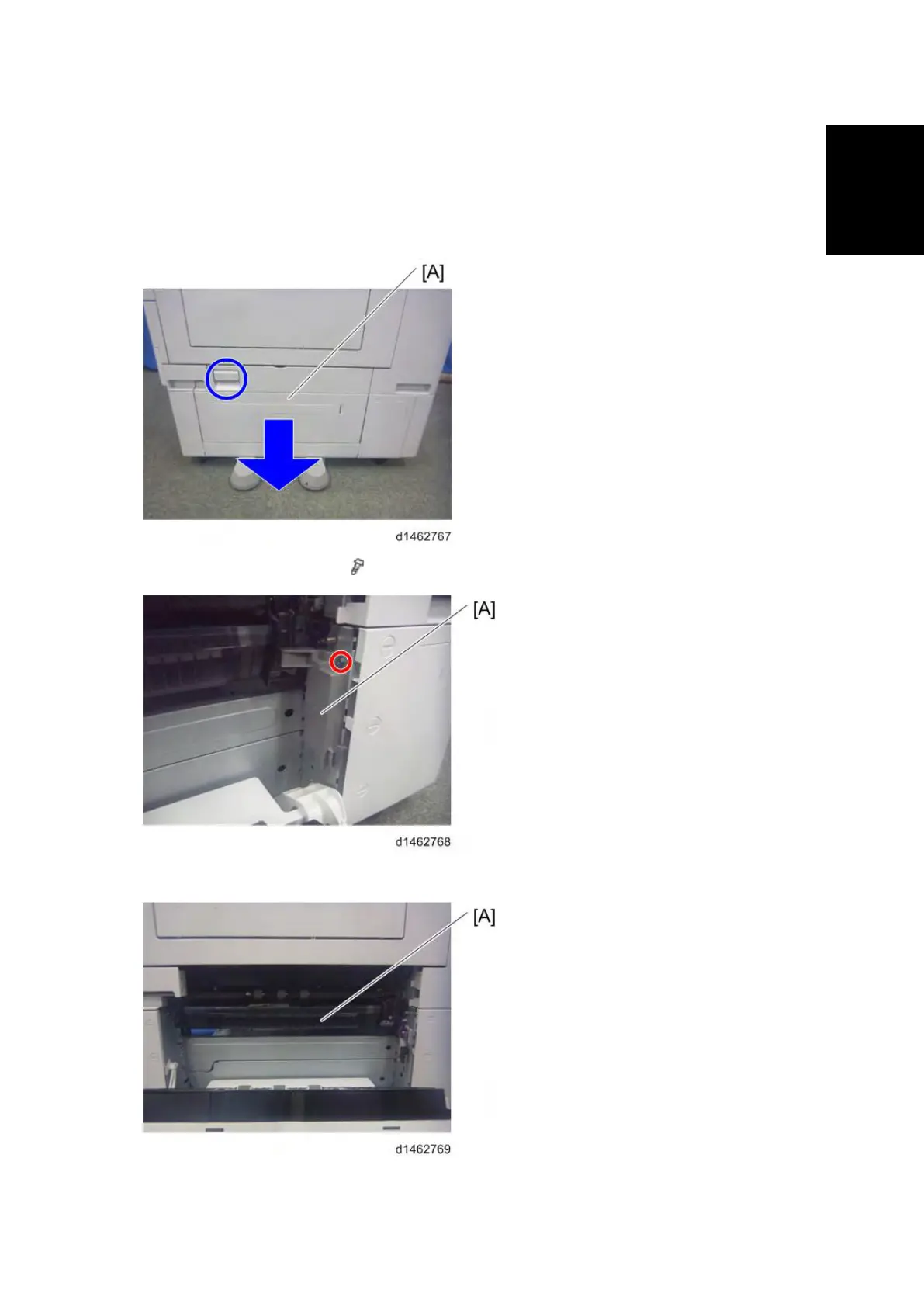

1. Pull out the paper tray.

2. Open the Transport cover [A].

3. Interlock switch cover [A] (

×1)

4. Paper feed guide plate [A]
