Entrance paper surface sensor

D686/D687 16 SM

1.6 ENTRANCE PAPER SURFACE SENSOR

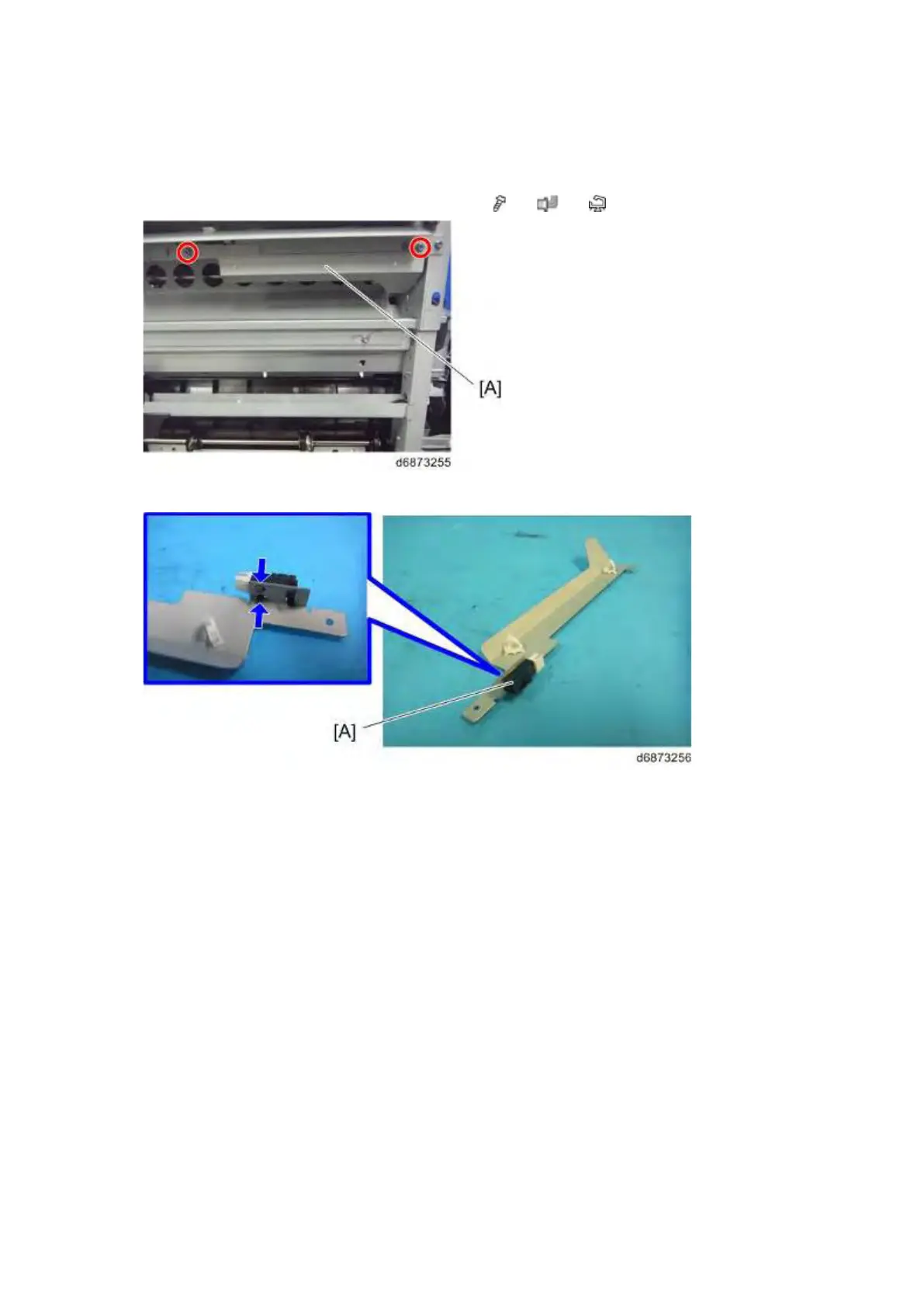

1. Entrance paper surface sensor bracket [A] ( ×2, ×1, ×2)

2. Entrance paper surface sensor [A]
