Paper Exit Guide Plate Motor

SM 19 D690

INTERNAL

FINISHER

SR3130

(D690)

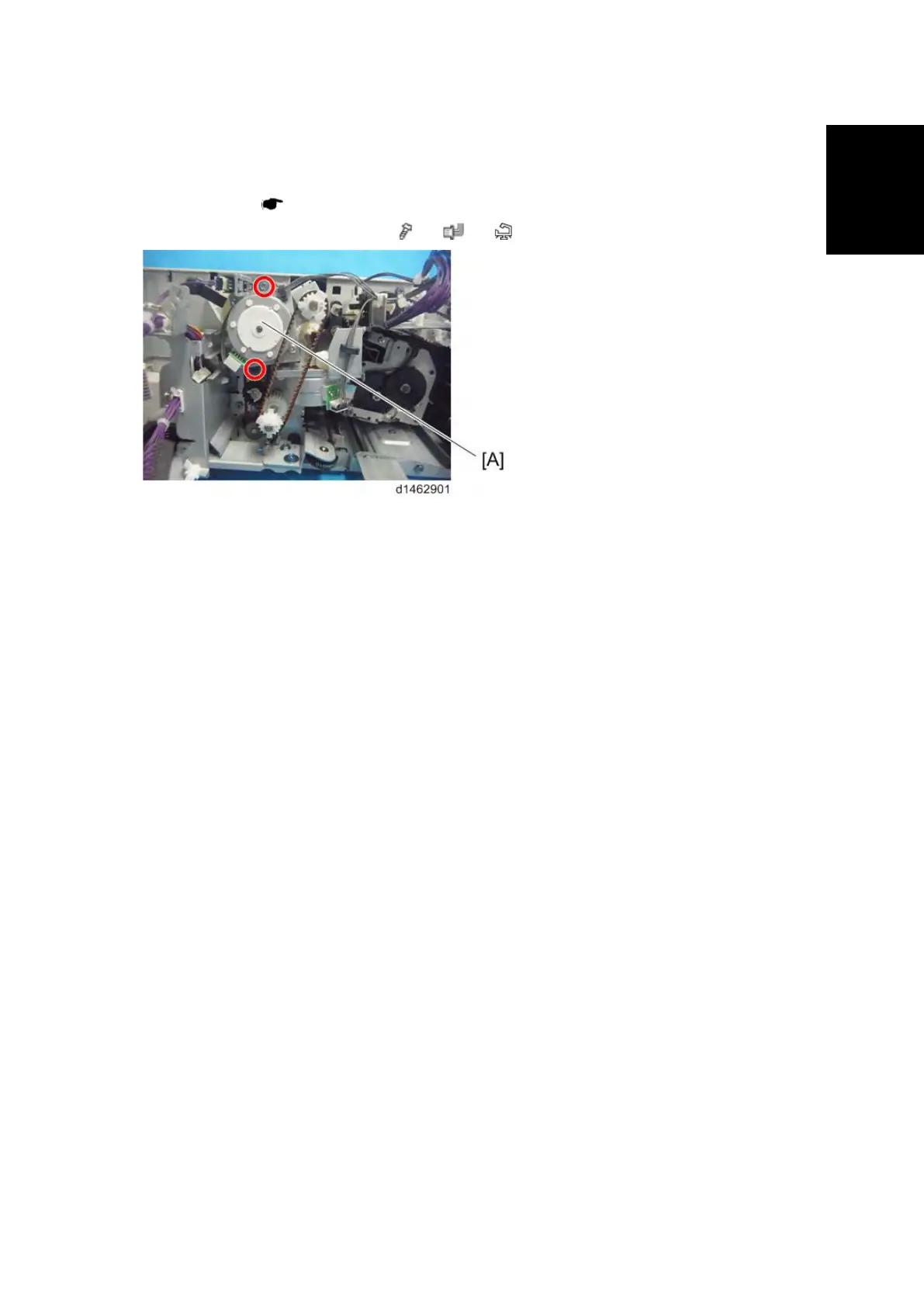

1.16 PAPER EXIT GUIDE PLATE MOTOR

1. Control board ( page 7 )

2. Paper exit guide plate motor [A] (

×2, ×1, ×3)
