Ricoh D147 - Installation Procedure; For Installing the Single G3 Board

D163 14 SM
1.3.2 INSTALLATION PROCEDURE
 Before installing this optional unit:
 Print out all data in the printer buffer.
 Turn off the main switch and disconnect the power cord and the network cable.
You can add two more SG3 boards to this model. Follow the procedures for adding the single SG3
board installation or double SG3 board installation as the customer needs.
For Installing the single G3 Board
1. If the FCU is not installed in the machine, install the FCU (D167) in the machine first
(page 1 "Fax Option Type M4 (D167)").

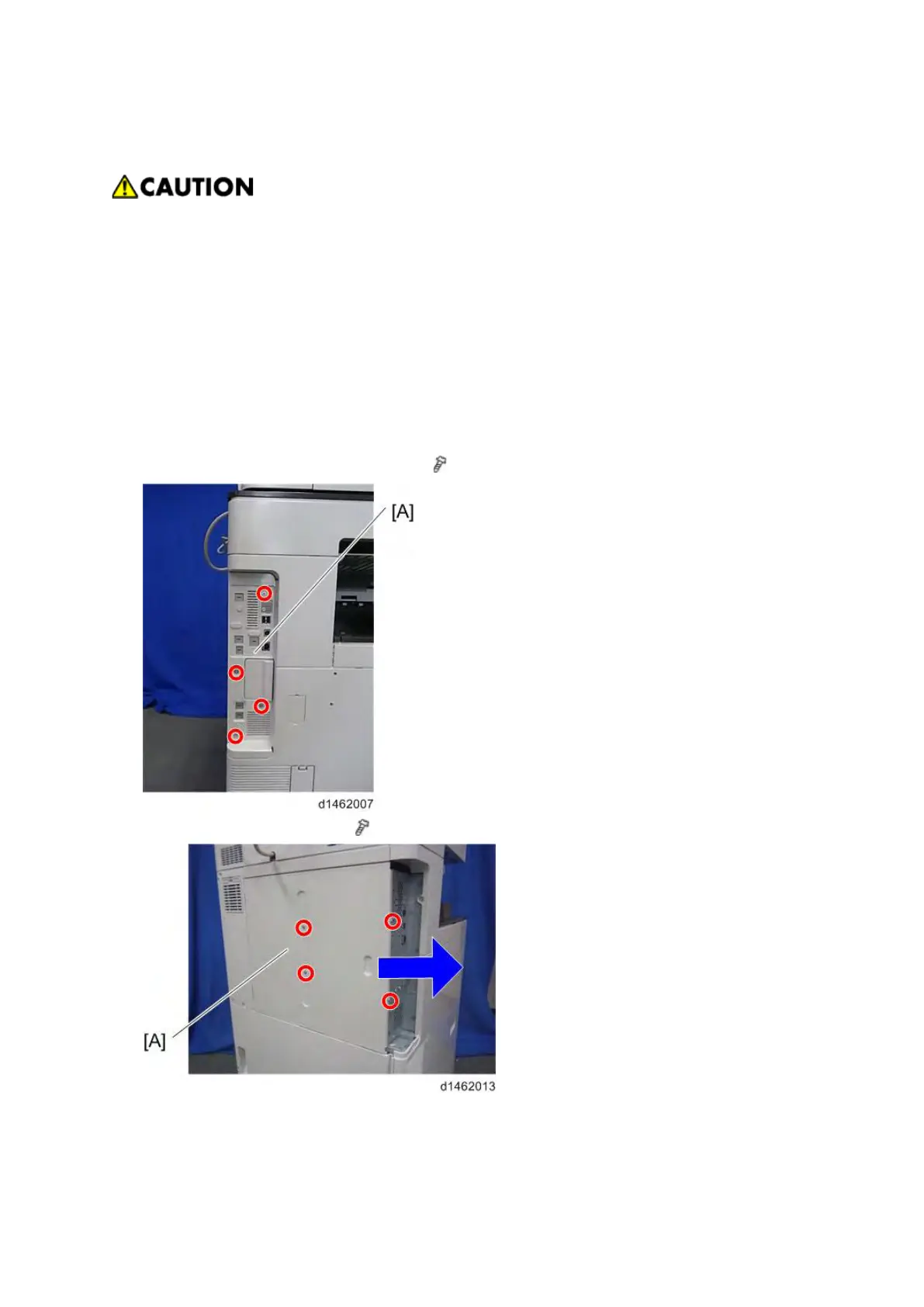

2. Remove the controller box cover [A] (
x 4).
3. Remove the rear cover [A] (
x 4).
4. Remove the "TEL2" [A] cover with a screw driver.
