Jogger Fence Home Position Sensor (Front)

D690 34 SM

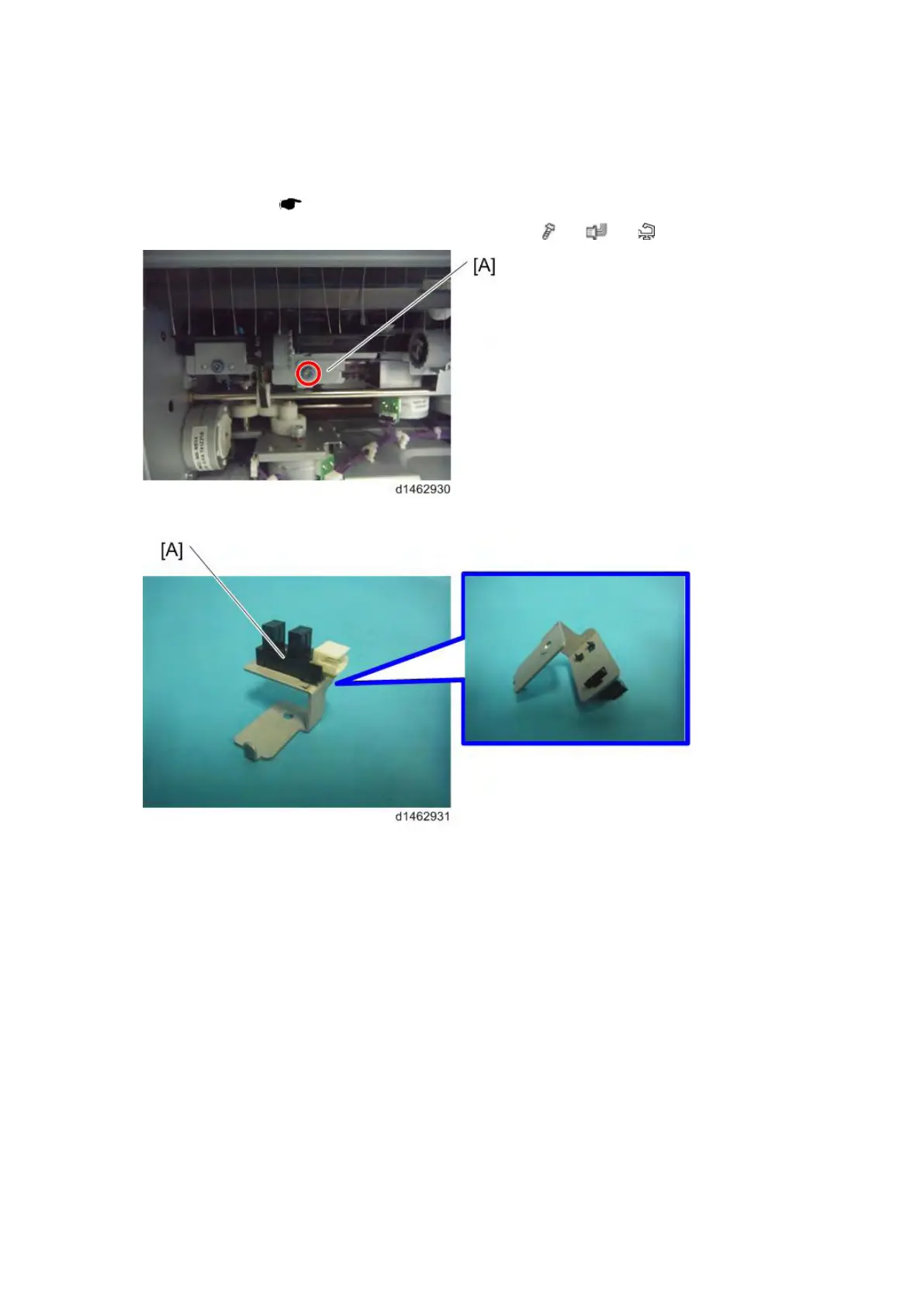

1.25 JOGGER FENCE HOME POSITION SENSOR (FRONT)

1. Paper exit cover ( page 6)

2. Jogger fence home position sensor (front) unit [A] (

×1, ×1, ×1)

3. Jogger fence home position sensor (front) [A]
