Ricoh D147 - Thermostat Unit

Fusing Unit
SM 4-107 D146/D147/D148/D149/D150
Replacement
and Adjustment

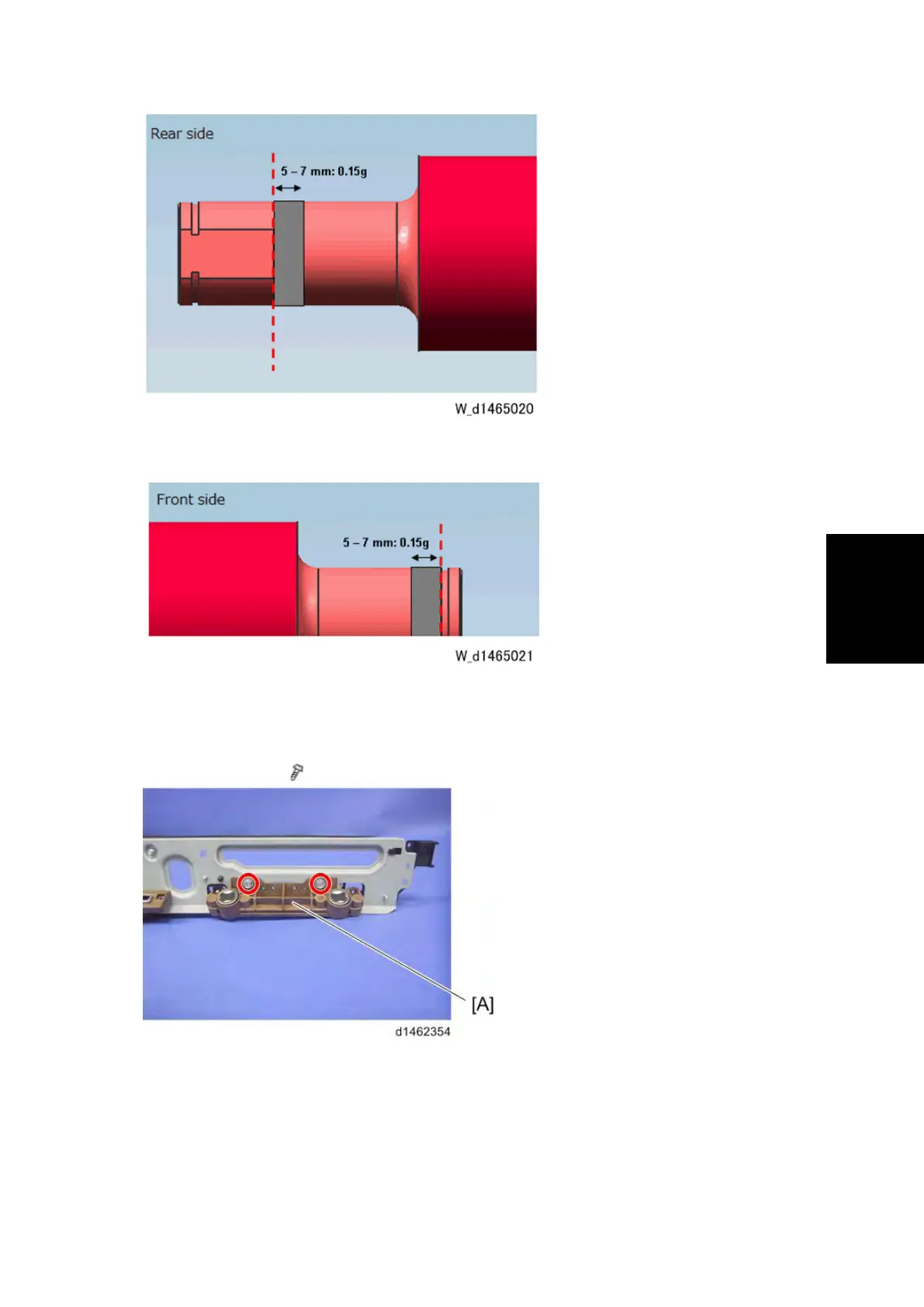

4. Apply the grease (FLUOTRIBO MG GREASE) to the front shaft of the pressure roller at
5-7mm from the C-ring notch.
4.12.10 THERMOSTAT UNIT
1. Left frame (Heating sleeve belt unit)
2. Thermostat unit [A] ( ×2)
