Ricoh D147 - Fusing Upper Cover; Fusing Lower Cover

To Next Page

To Previous Page

Fusing Unit

D146/D147/D148/D149/D150 4-102 SM

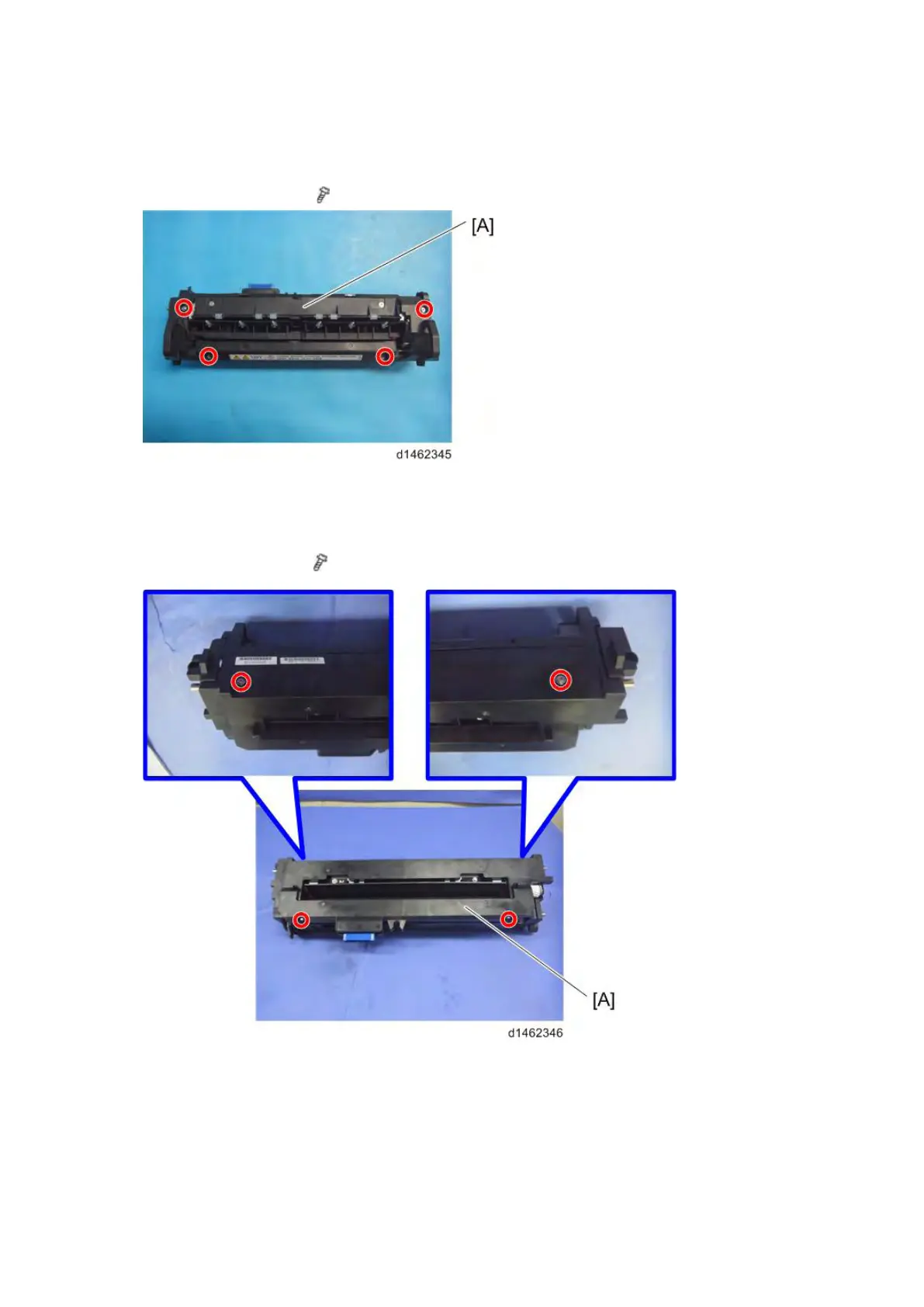

4.12.4 FUSING UPPER COVER

1. Fusing unit (page 4-99 "Fusing Unit")

2. Fusing upper cover [A] ( ×4)

4.12.5 FUSING LOWER COVER

1. Fusing unit (page 4-99 "Fusing Unit")

2. Fusing lower cover [A] ( ×4)
