Ricoh D147 - Replacement and Adjustment; Operation Panel Unit; Operation Panel

Operation Panel Unit
SM 3 D148
SMART
OPERATION
PANEL TYPE M3
(D148)
2. REPLACEMENT AND ADJUSTMENT
2.1 OPERATION PANEL UNIT
2.1.1 OPERATION PANEL
1. Scanner front cover (Refer to Main Frame SM)

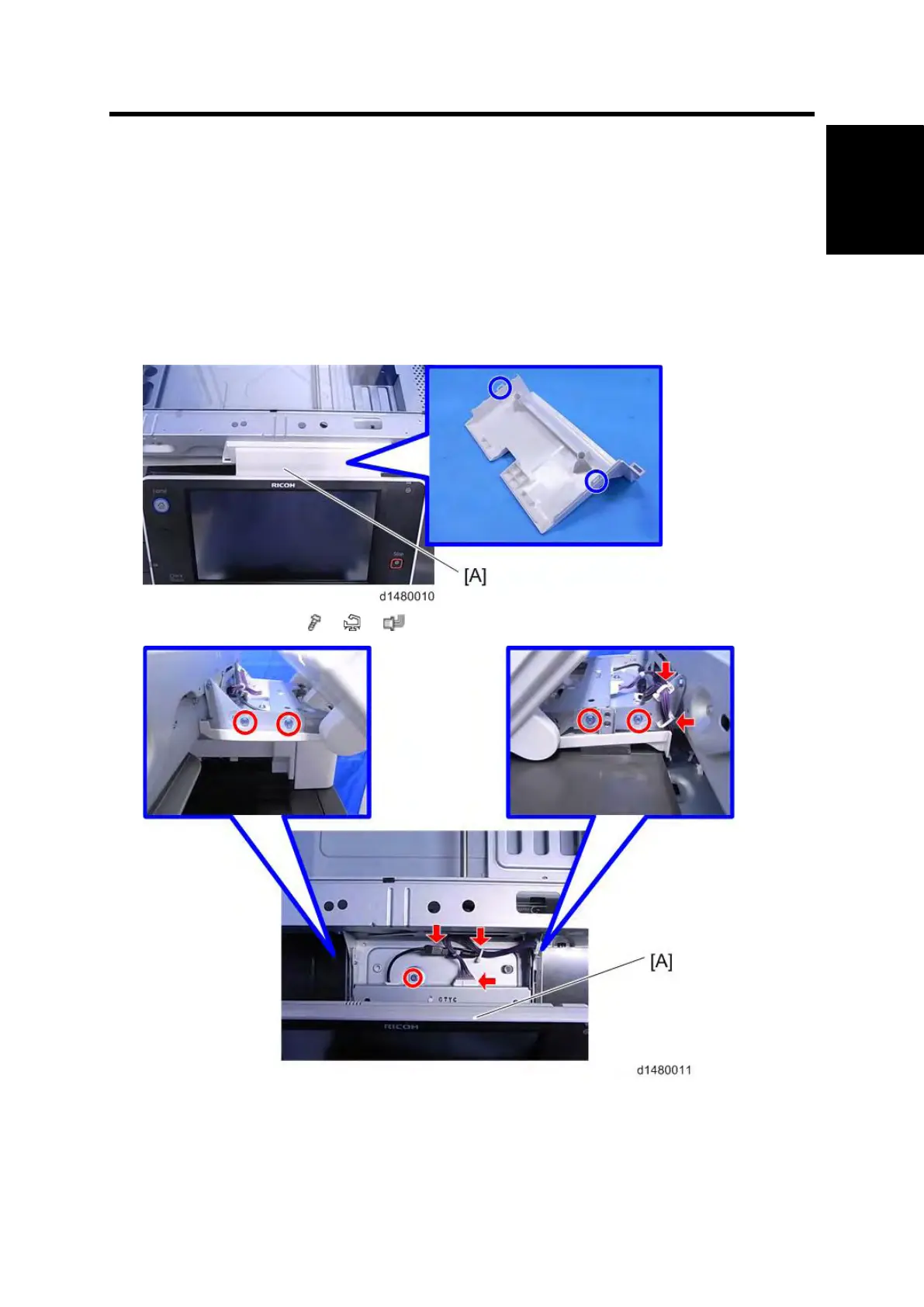

2. Operation panel upper cover [A] ( hook×2)
3. Operation panel [A] ( ×5, ×3, ×2)
