Separation Roller

SM 7 D779

ARDF DF3090

(D779)

1.6 SEPARATION ROLLER

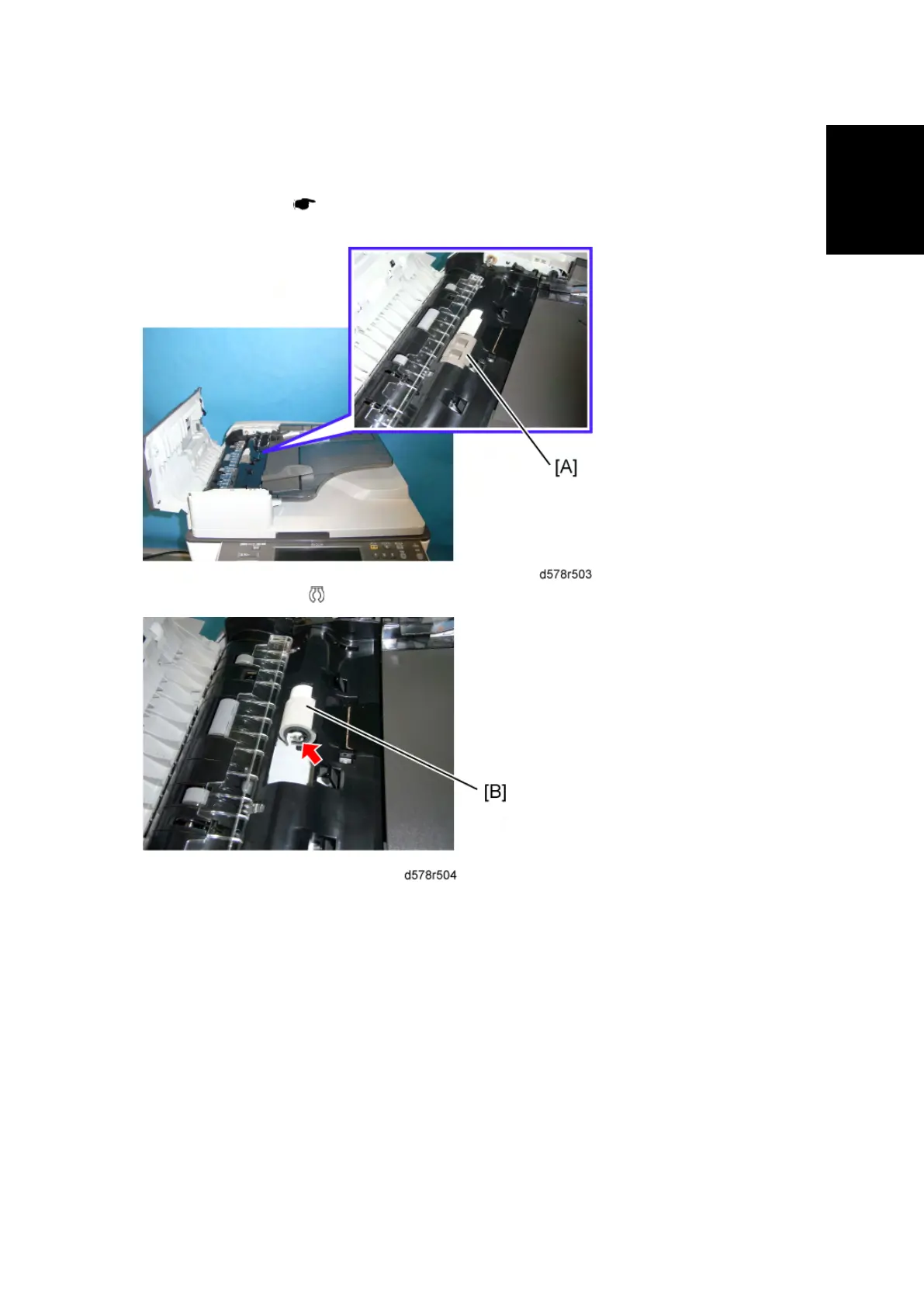

1. Original Feed Unit ( page 3)

2. Separation roller cover [A].

3. Separation roller [B] (

x 1)
