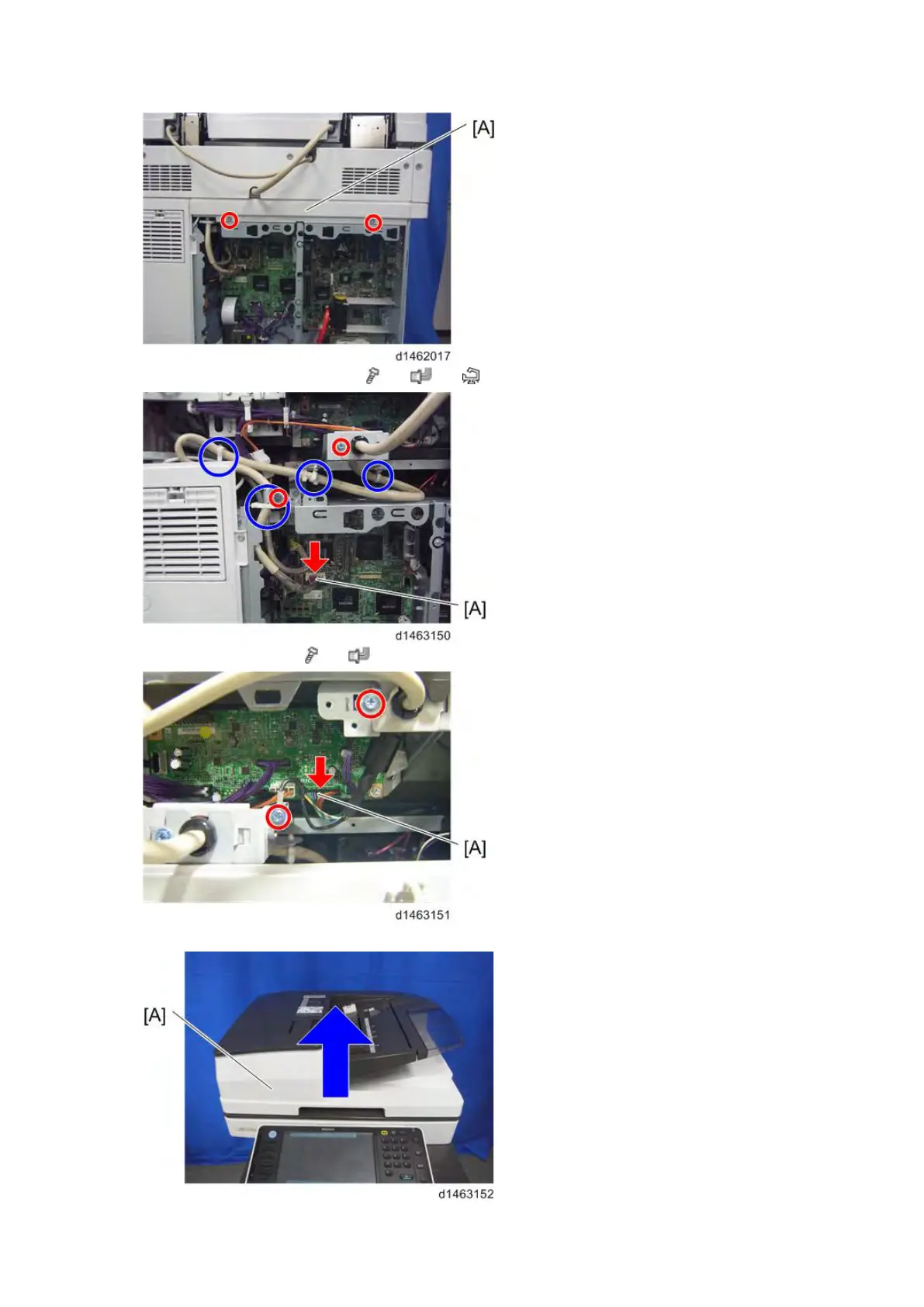

ADF Removal

D683 2 SM

5. Disconnect the I/F cable [A] ( ×2, ×1, ×4)

6. CIS image cable [A] ( ×2, ×1)

7. Open the ADF [A]
