ADF Removal
SM 3 D683
SPDF DF3080
(D683)

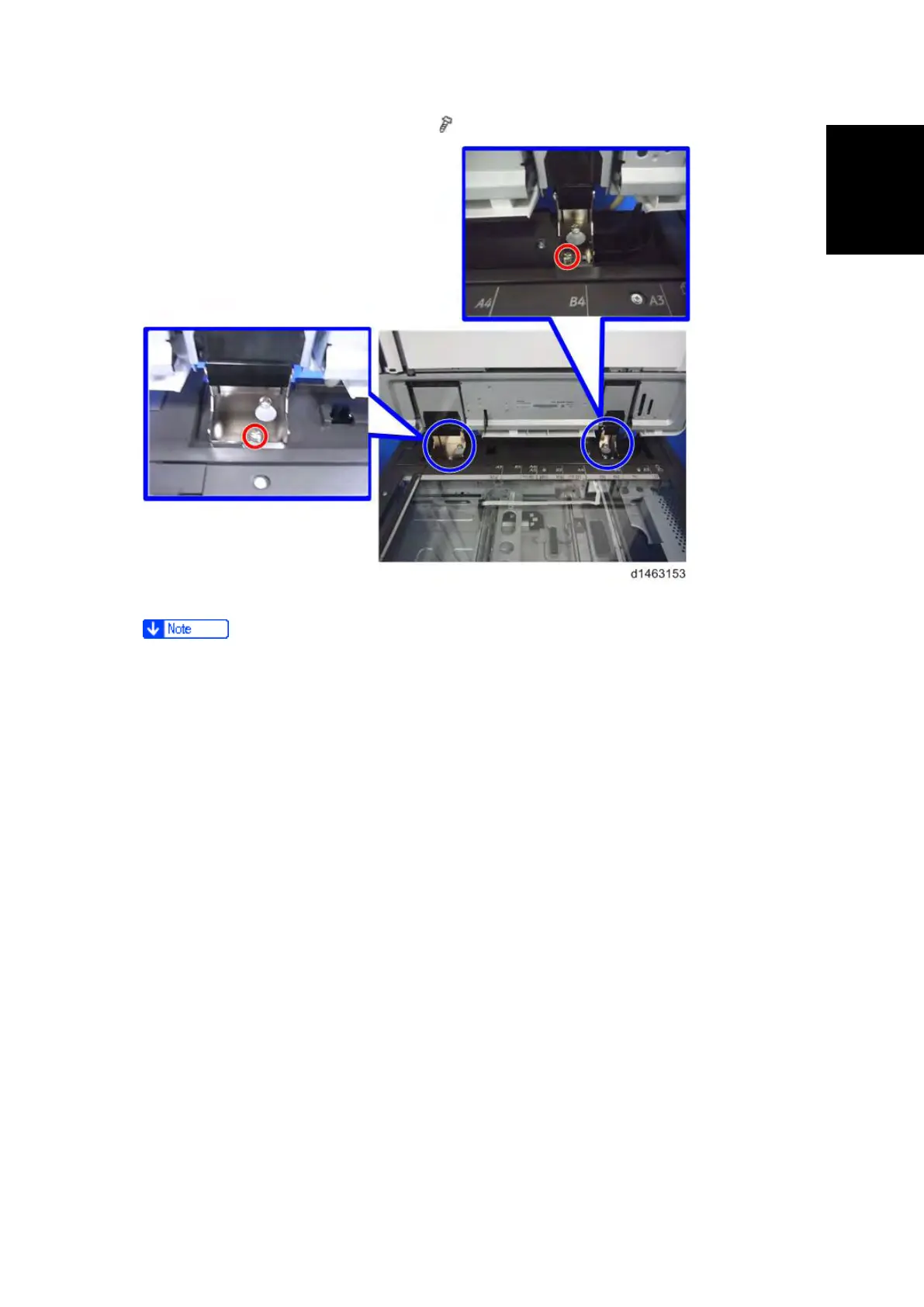

8. Remove the fixing screws of the ADF ( ×2)
9. While holding the left and right sides of the ADF, lift up to remove it.
 Because of the weight of the ADF, handle with care.
