Center-folding unit

SM 27 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

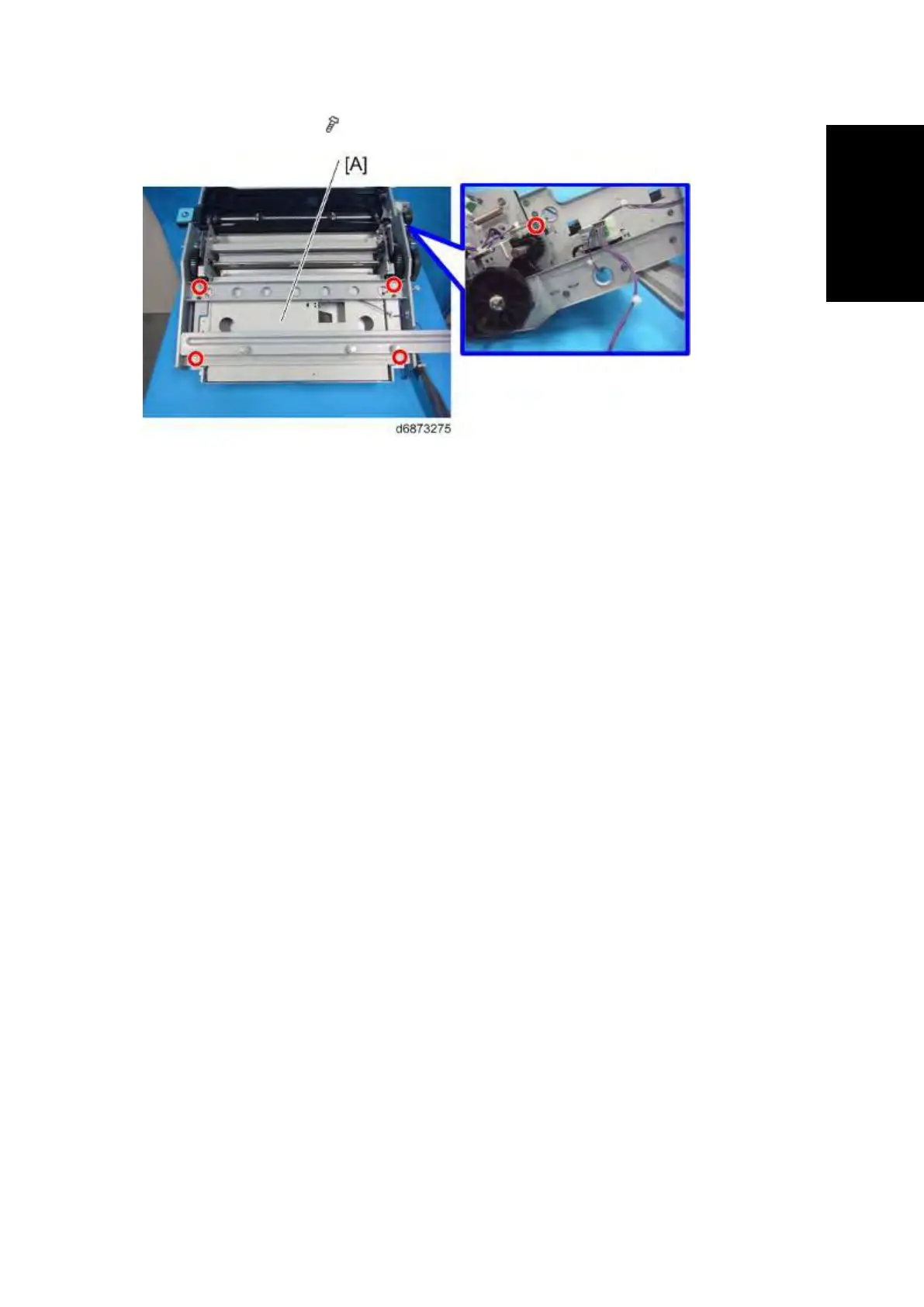

6. Center-folding unit [A] ( ×5)
