Controller Board

SM 1 D691

INTERNAL

SHIFT TRAY

SH3070

(D691)

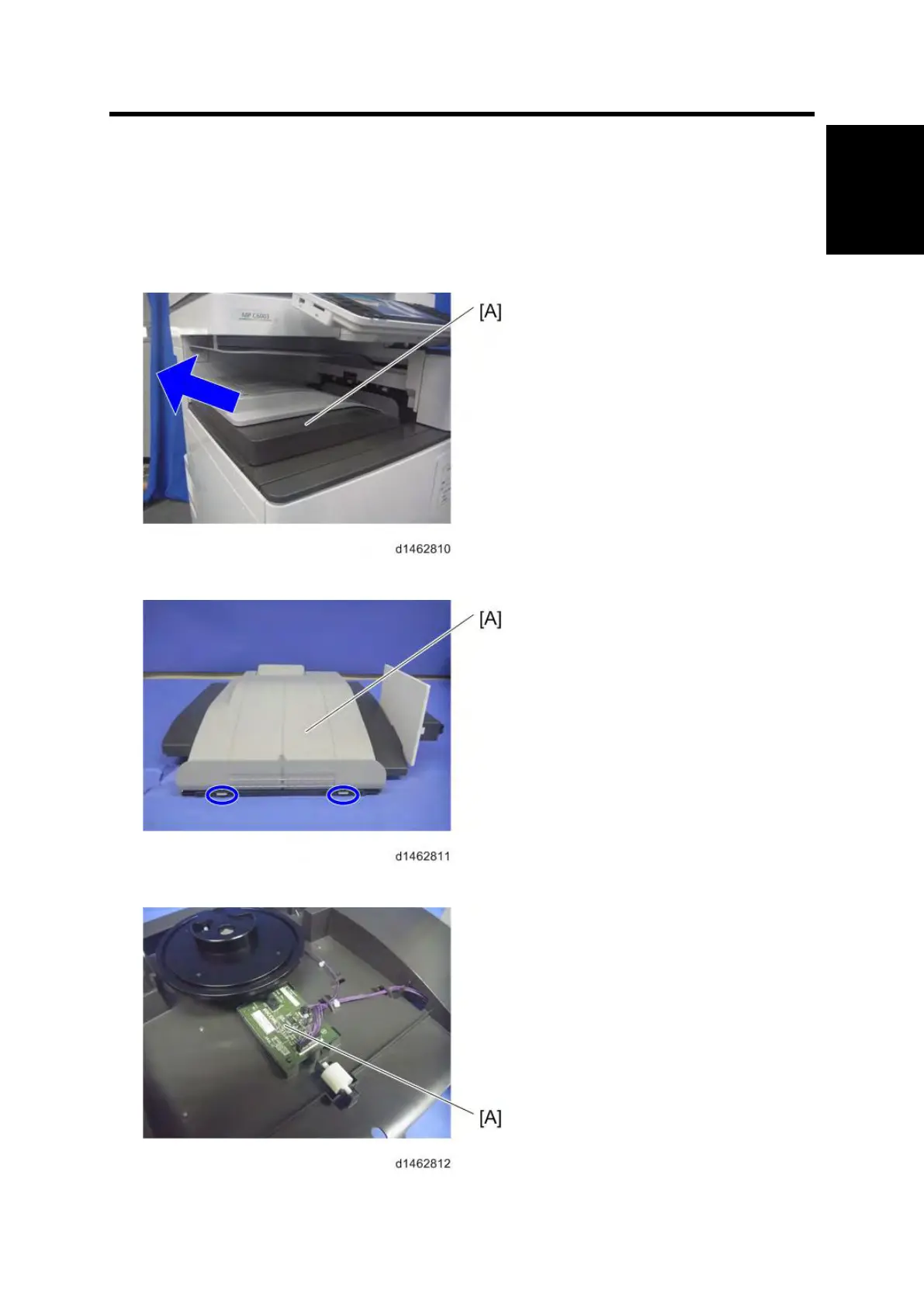

1. REPLACEMENT AND ADJUSTMENT

1.1 CONTROLLER BOARD

1. Shift tray [A]

2. Upper tray [A]

3. Controller board [A]
