6. With a long screwdriver inserted into the plate cutout [7], tighten the screw to fasten the
right front corner plate.

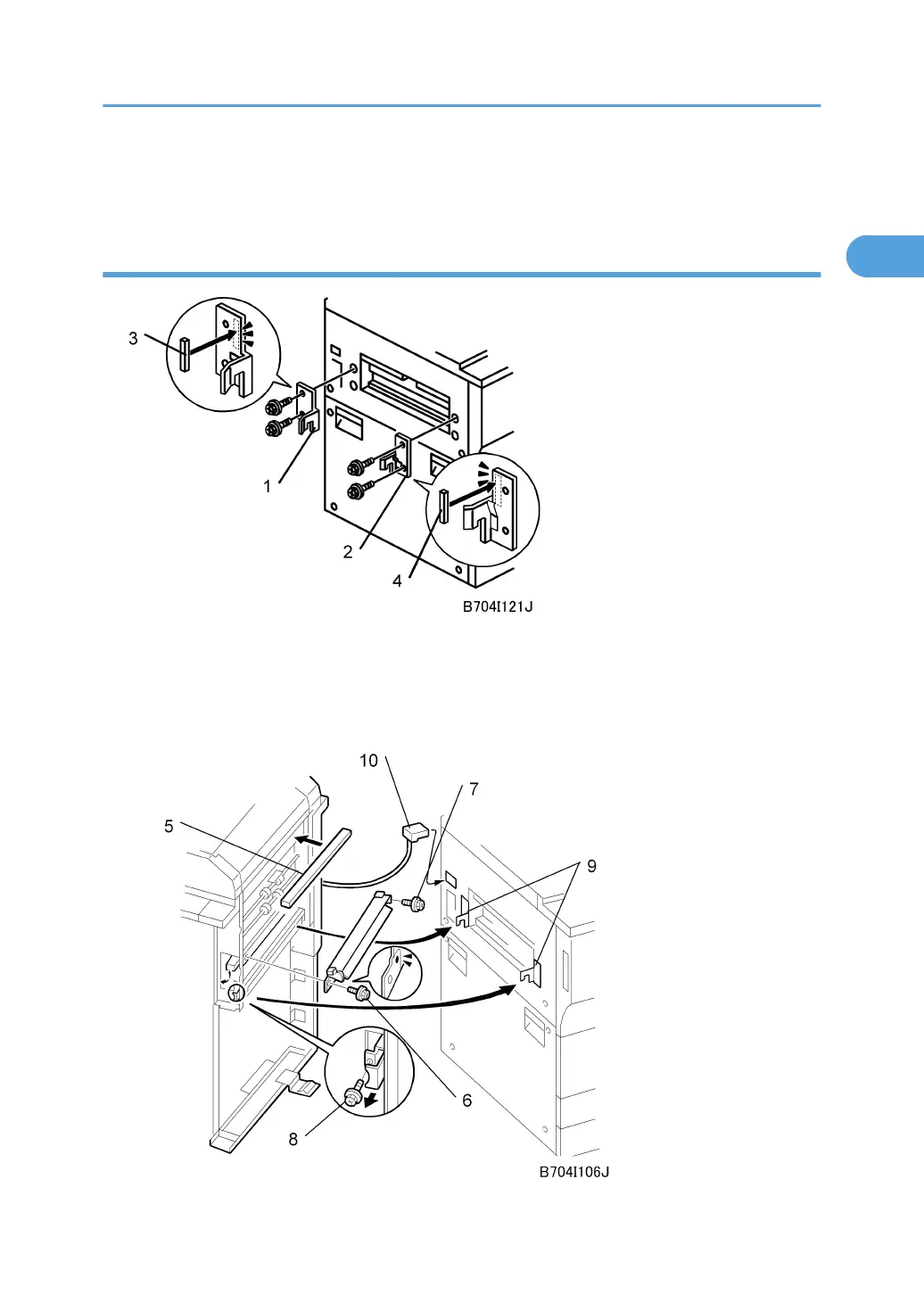

Docking the Finisher and Interposer to the Machine (B700/B706)
1. Attach the rear bracket [1] ( x 2, M4 x14).
2. Attach the front bracket [2] ( x 2, M4 x14).
3. Attach the gasket seals [3] and [4].
Cover Interposer Tray (B704)
105
To Next Page
