Ricoh MT-P2 - Page 214

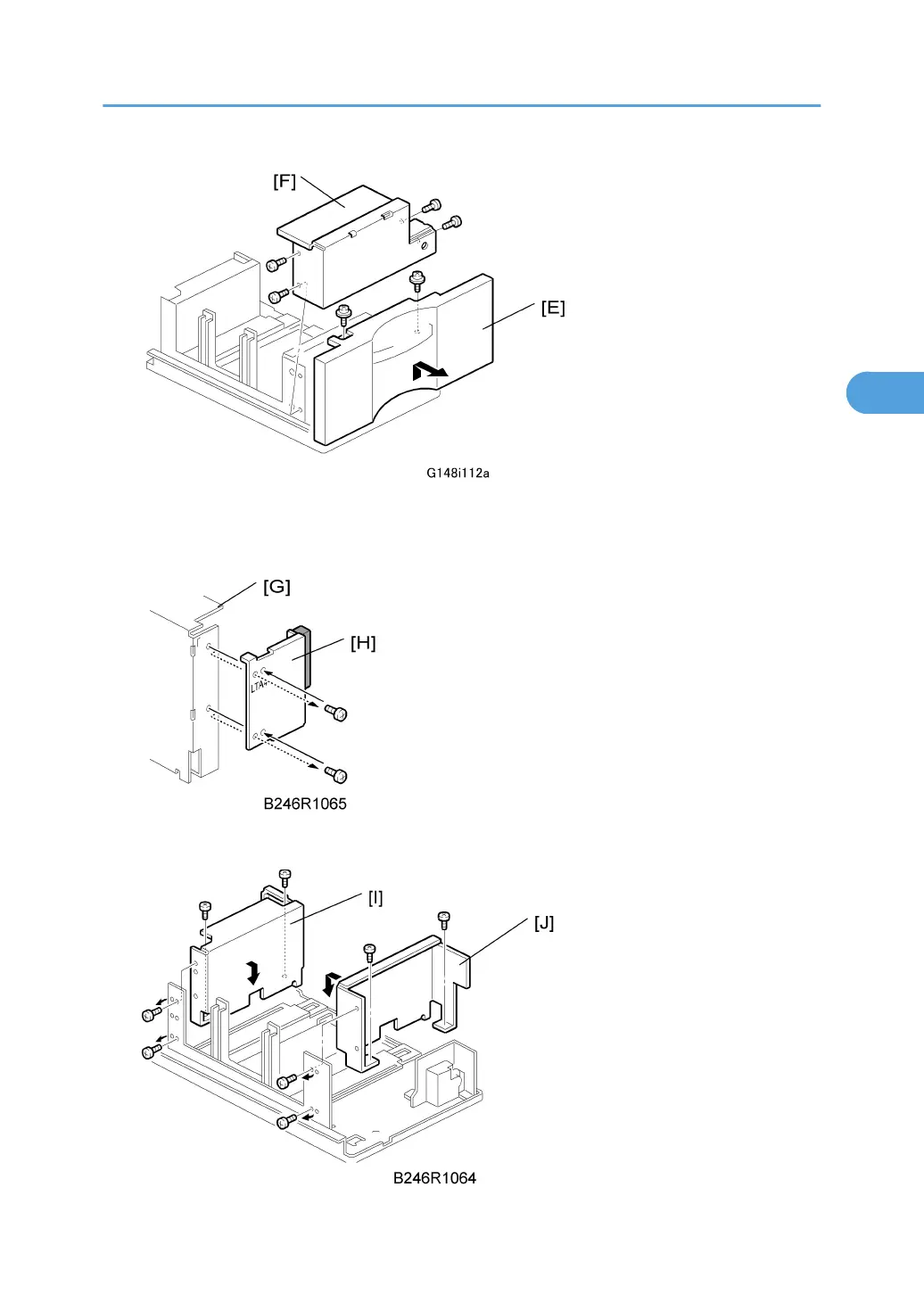

6. Remove the tray cover [E] ( x 2).
7. Remove the DC motor cover [F] ( x 4).
8. Remove the rear side fence [G] ( x 4) and re-position the rear cover [H] ( x 2).
Paper Feed
213
3
