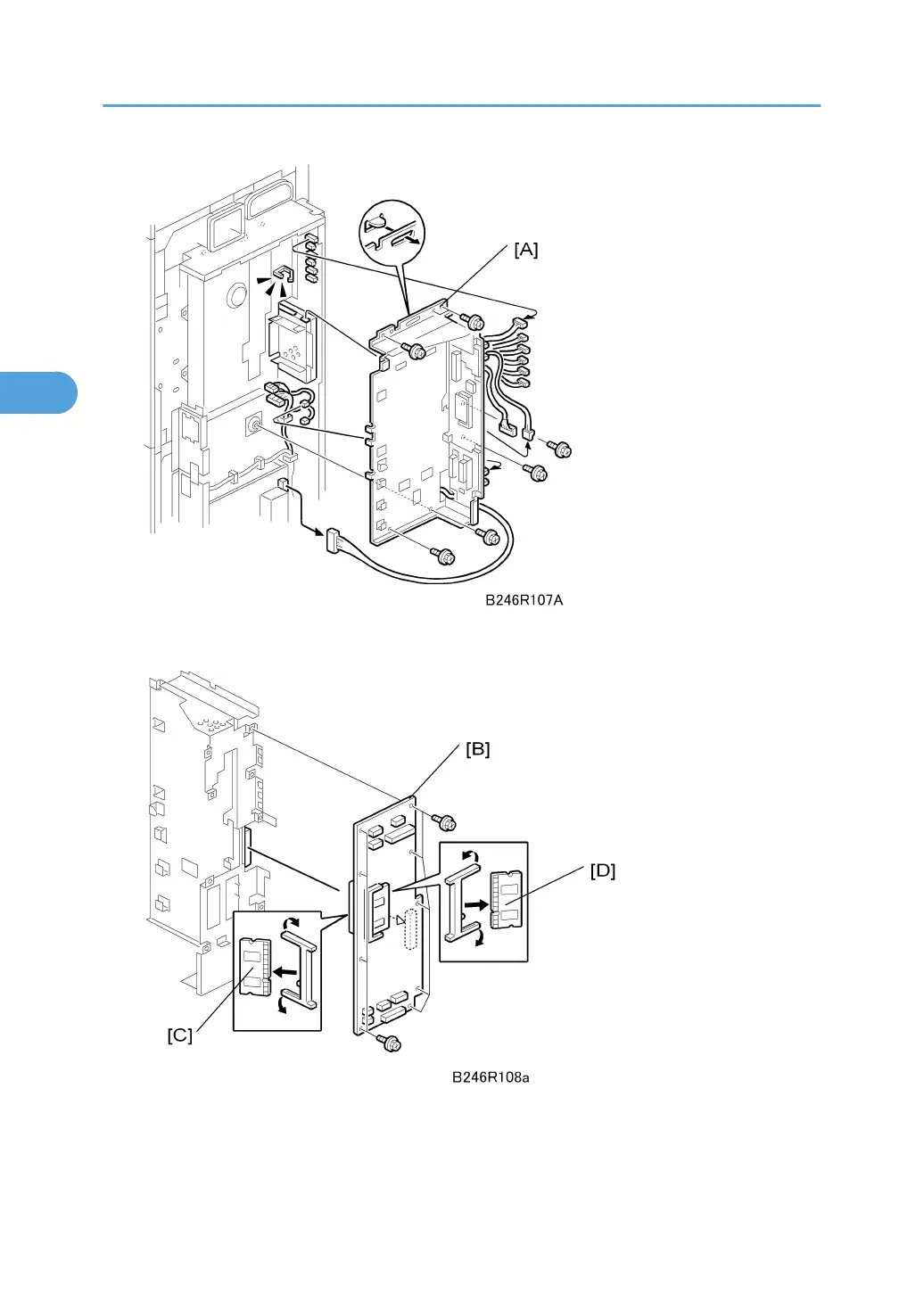

5. Remove the controller board mounting bracket [A] ( x13,  x6)
6. Remove the controller board [B] from the side of the mounting bracket ( x9)
7. Remove DIMMs [C] and [D].
