1. Open the front door.
2. Remove the shutter cover [1] ( x 1).
3. Remove the lock screw [2].
4. Remove any remaining shipping tape from inside the machine [3].
5. Pull the toner bottle holder [4] and swing it to the right.

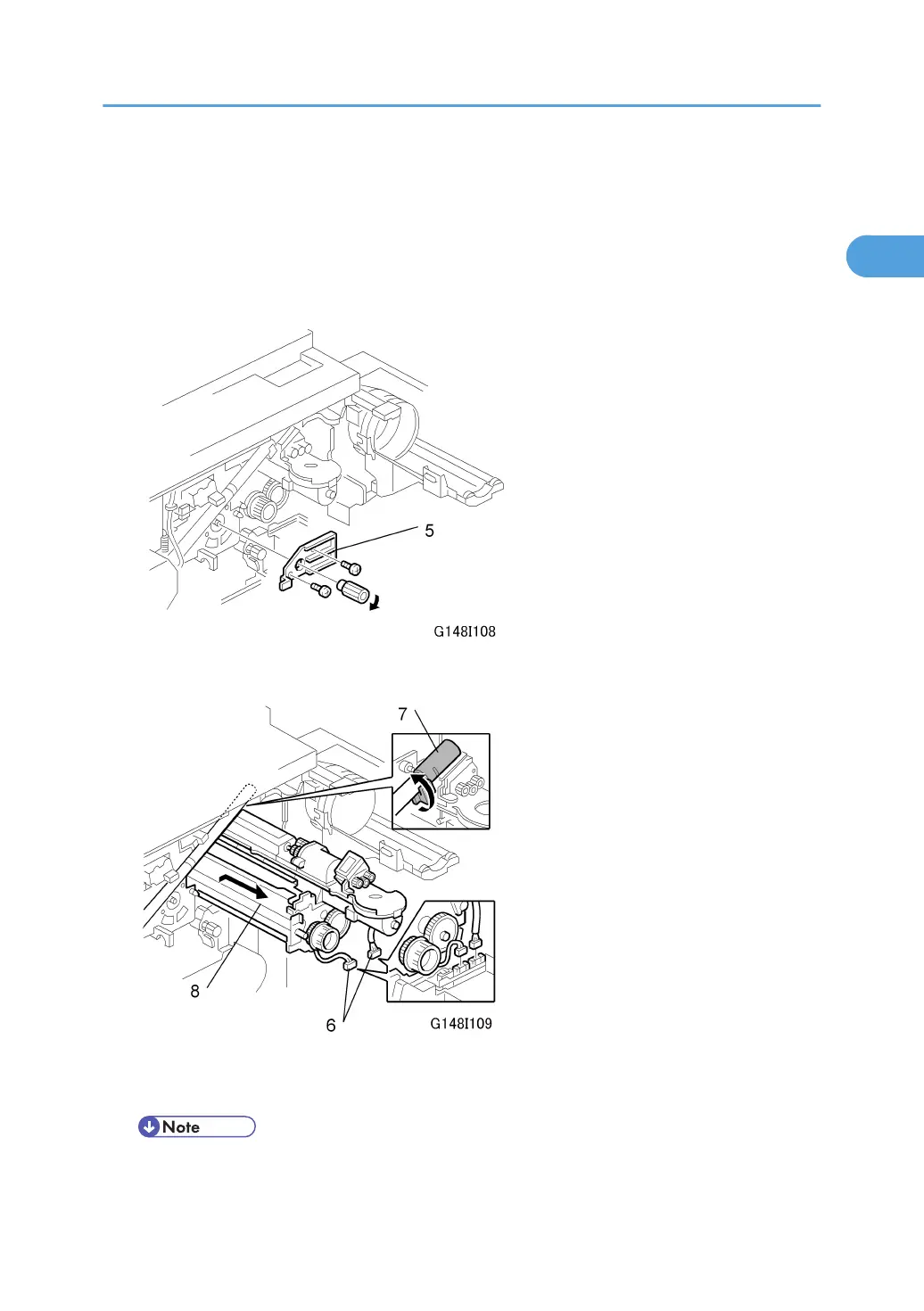

6. Remove the face plate [5] of the development unit (knob x 1, x 2).
7. Disconnect the development unit [6]
( x 2).
• If the LCT is installed, disconnect it. This lets the front door open far enough for development unit
removal.
Main Machine (G148)
