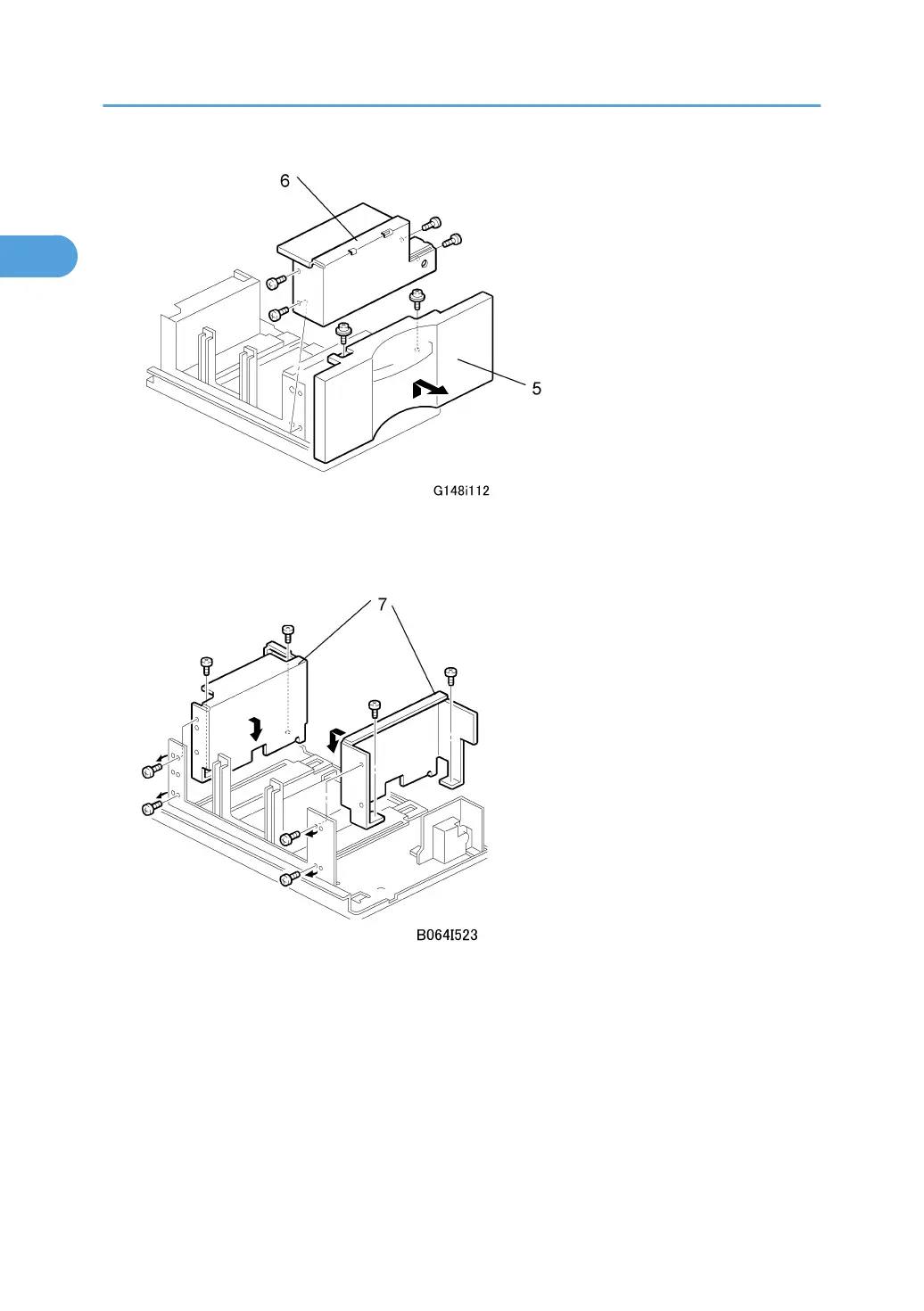

6. Remove the tray cover [5] ( x 2).
7. Remove the motor cover [6] ( x 4).
8. Re-position the side fences [7] ( x 8). The outer slot position is used when loading A4 size
paper.
9. Re-install the motor cover and the tray cover.
