Ricoh MT-P2 - Page 57

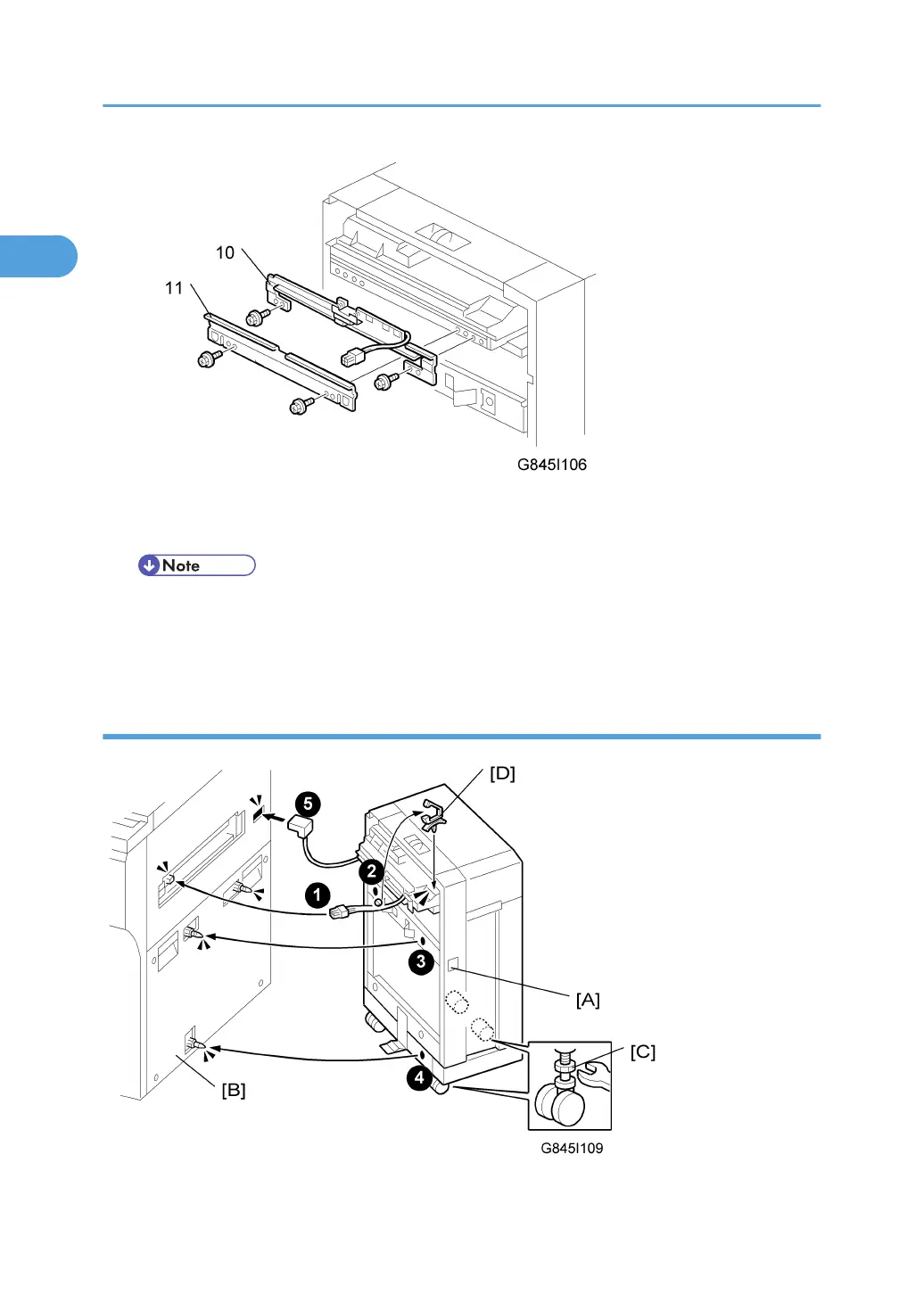

9. Attach the upper guide [10] (x2).
10. Attach the lower guide [11] (x2).
• The upper guide must be attached before the lower guide. Make sure the guides are positioned
correctly so that they do not interfere with paper feed and mark the sheets with creases.
11. Replace the right cover of the LCT (x2).
Installing the LCT
1. Installation
56
1
