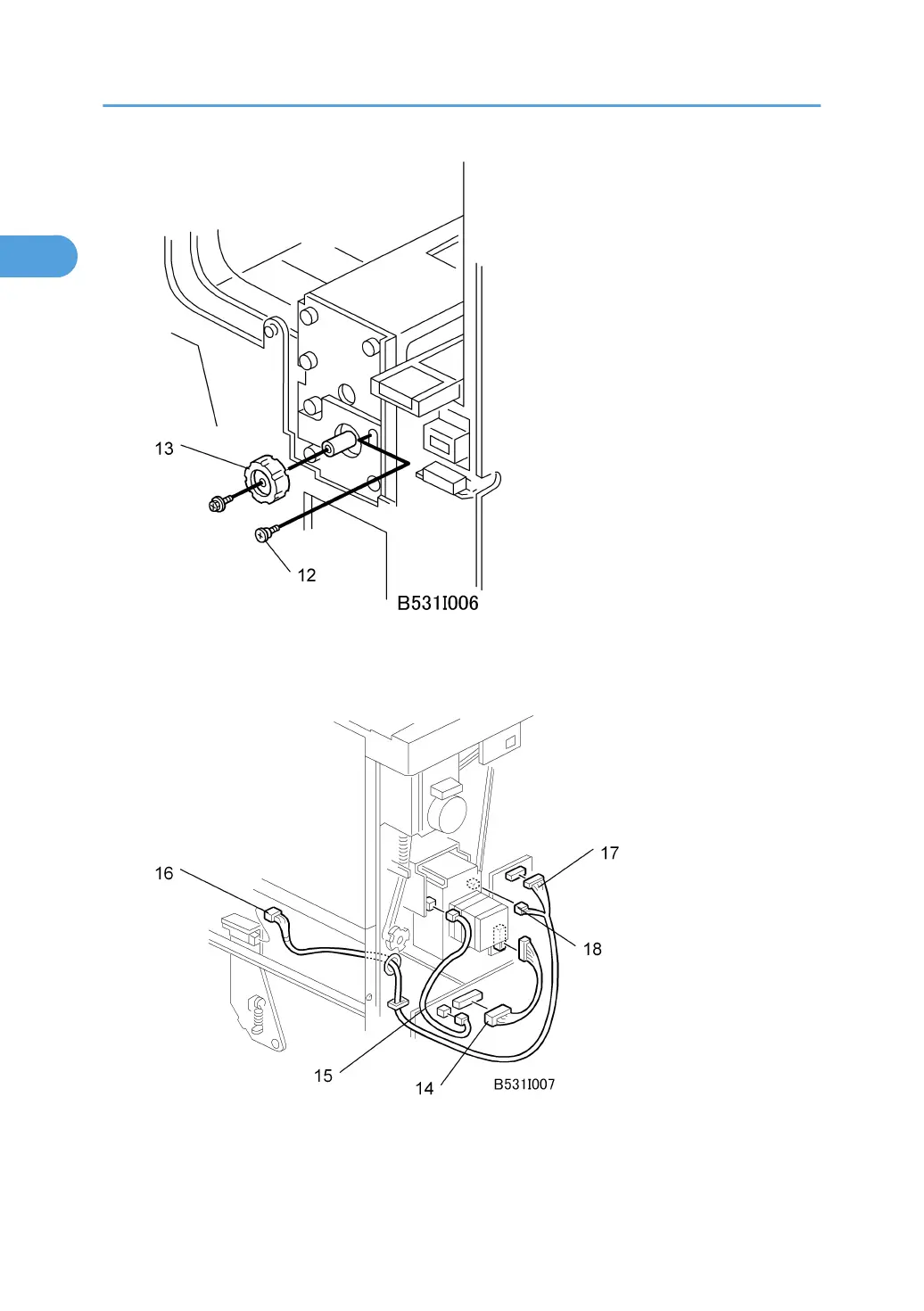

11. At the front, secure the punch unit [12] with the large step screw ( x 1, M4 x 10).
12. Fasten the punch unit knob [13] ( x 1).
13. Connect the PCB harness connector [14] to CN129 of the finisher PCB and to CN600 of the
punch unit PCB.
