9. Connect connector [10] to the main frame.

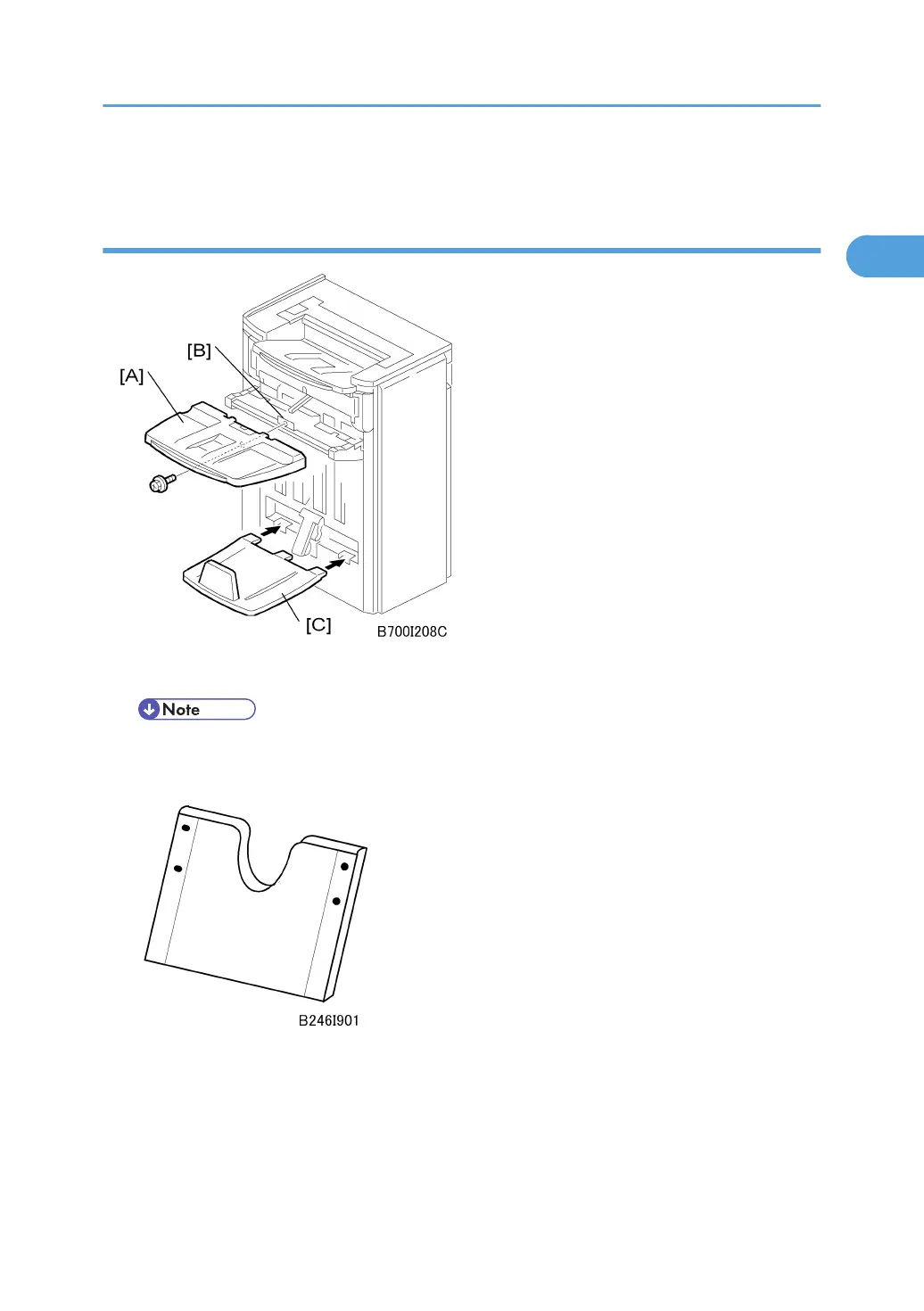

Attaching the Trays
1. Attach the upper output tray [A] ( x 1, M3 x 8).
• Make sure the metal plate [B] overlaps the tray.
2. Attach the lower output tray [C].
3. Use the round-head rivet (provided accessory) to fasten the auxiliary tray storage pocket
to rear cover of the finisher.
4. Place the auxiliary trays for the shift tray and proof tray in the pocket.
2000-Sheet Finisher (B700)
85
