12 Rockwell Automation Publication KNX-SG001H-EN-P - December 2020

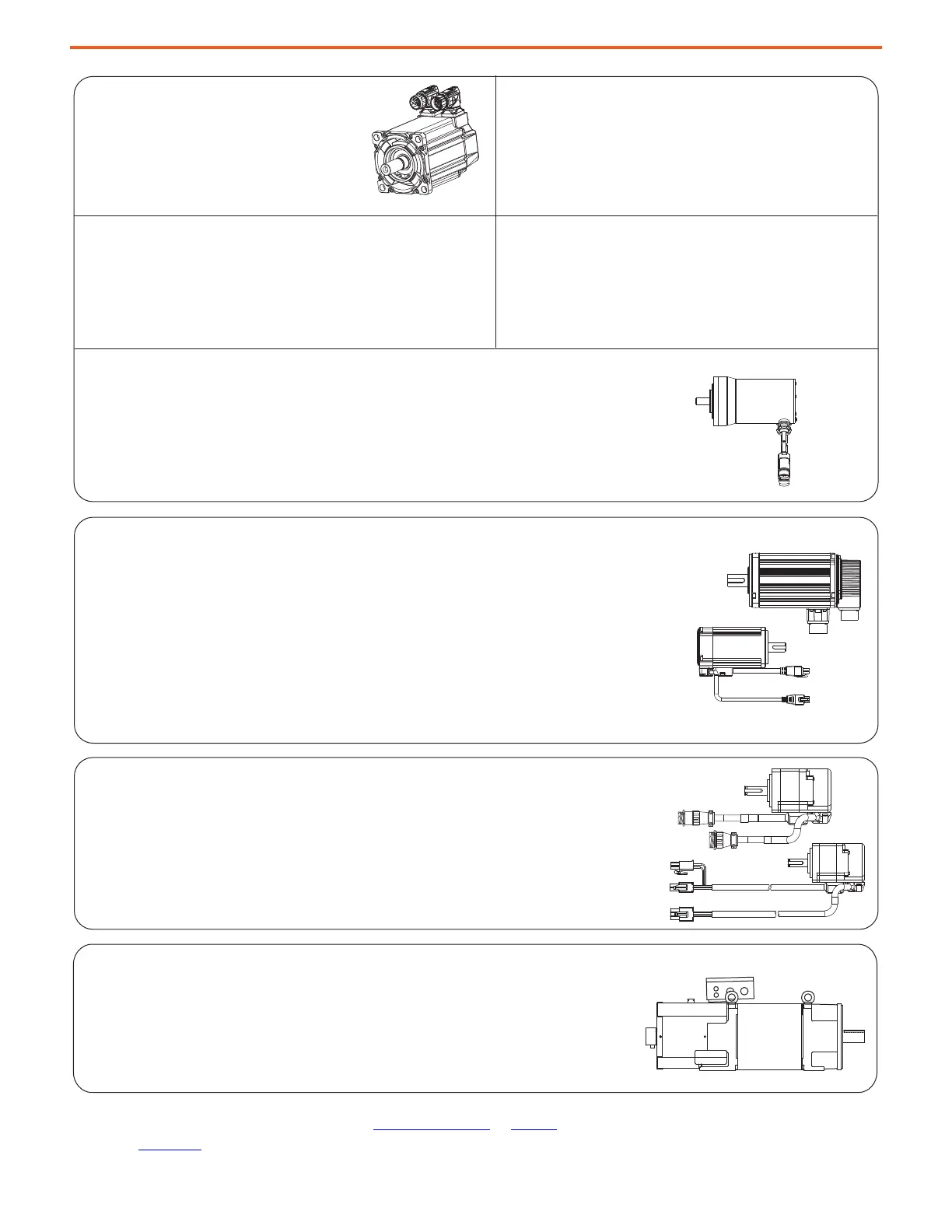

Select a Kinetix Motion Control System
To compare features across motor families, refer to Rotary Servo Motors on page 22. See the Kinetix Rotary Motion Technical Data,
publication KNX-TD001
, for product specifications.
• 200V and 400V-class motors
• Shaft-end threaded hole
• Multi-turn and single-turn high-resolution absolute
position encoders
• 2090-Series motor power/brake and feedback cable
connectors
Kinetix MP Servo Motors
• High-energy, rare-earth magnets
• IP50 minimum, without shaft seal (standard)
• IP66 with optional shaft seal and the use of Rockwell Automation
factory-delivered 2090-Series cable connectors
• 0.26…163 N•m (2.3…1440 lb•in) continuous stall torque
Kinetix MPL low-inertia motors offer a reduced motor size while delivering
significantly higher torque to meet the demanding requirements of high-
performance motion system.
• Configurable winding options, brakes, and encoder feedback
• Food-grade epoxy coating
• IP66/IP67 with shaft seal (standard) and the use of Rockwell Automation
factory-delivered 2090-Series cable connectors
• 1.6…19.4 N•m (14…172 lb•in) continuous stall torque
Kinetix MPF food-grade motors address the challenges of food environments by
incorporating food-grade paint and shaft seal, along with noncorrosive fasteners
and stainless steel shaft.
Kinetix MPM medium-inertia motors for higher inertia applications.
•Multiple winding speed options
• High-energy, rare-earth magnets
• IP50 minimum, without shaft seal (standard)
• IP66 with optional shaft seal and the use of Rockwell Automation
factory-delivered 2090-Series cable connectors
• 2.18…62.8 N•m (19.3…556 lb•in) continuous stall torque
Kinetix MPS stainless-steel motors for high-pressure washdown environments.
• Specifically designed for sanitary environments for use with high-pressure, highly caustic washdown applications
• Smooth passivated 300-series stainless-steel cylindrical exterior
• Certified and listed to NSF/ANSI Standard 169
• Cable extensions, 3 m (9.8 ft)
• IP66/IP67 with shaft seal and slinger (standard) and the use of Rockwell Automation factory-delivered 2090-Series cable connectors
(includes on-motor cable connectors).
• IP69K for 1200 psi motor washdown with shaft seal and slinger (standard). Does not include on-motor cable connectors.
• 3.6…21.5 N•m (32…190 lb•in) continuous stall torque
Kinetix TL and TLY Compact Servo Motors
Kinetix TL and TLY high-performance servo motors combine compact size with high-torque density to provide substantial power in a small footprint.
• Compact size, high-torque density, high-energy (rare-earth) magnets
• 230V windings in metric and NEMA frame sizes
• IP54 without shaft seal (standard) and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
(excludes on-motor cable connectors).
• IP65 with optional shaft seal and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
(excludes on-motor cable connectors).
• 0.086…5.42 N•m (0.76…48 lb•in) continuous stall torque
• Multi-turn (battery-backed) high-resolution absolute position or incremental encoder options
Kinetix HPK Asynchronous Servo Motors
Kinetix HPK Asynchronous Servo Motors employ proven induction motor technology optimized for servo system performance.
• High power, large load inertias
• 400 and 460V windings, 1500 and 3000 rpm rated speeds
• IP65 with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
• 96…955 N•m (849…8452 lb•in) continuous stall torque
• Multi-turn and single-turn high-resolution Hiperface absolute-position encoders
• 2090-Series motor-feedback cable connectors
Kinetix TLP Multi-purpose Servo Motors
Kinetix TLP servo motors represent an economy solution for machine designers with a wide range of application needs.
• Developed to match Kinetix 5100 servo drives for optimal system performance
• 200V and 400V-class windings with up to 15 kW output
• TLP-A046, TLP-A/B070, TLP-A/B090, and TLP-A100 motors are equipped with plastic on-motor cables
– IP40 without shaft seal (standard) and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
(excludes on-motor cable connectors)
– IP65 with optional shaft seal and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
(excludes on-motor cable connectors)
– IP30 for on-motor cable connectors
• TLP-A/B115, TLP-A/B145, TLP-A/B200, and TLP-A/B235 motors are equipped with military-style cables
– IP40 without shaft seal (standard) and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
– IP65 with optional shaft seal and with the use of Rockwell Automation factory-delivered 2090-Series cable connectors
• 24-bit high-resolution single-turn and multi-turn absolute feedback
