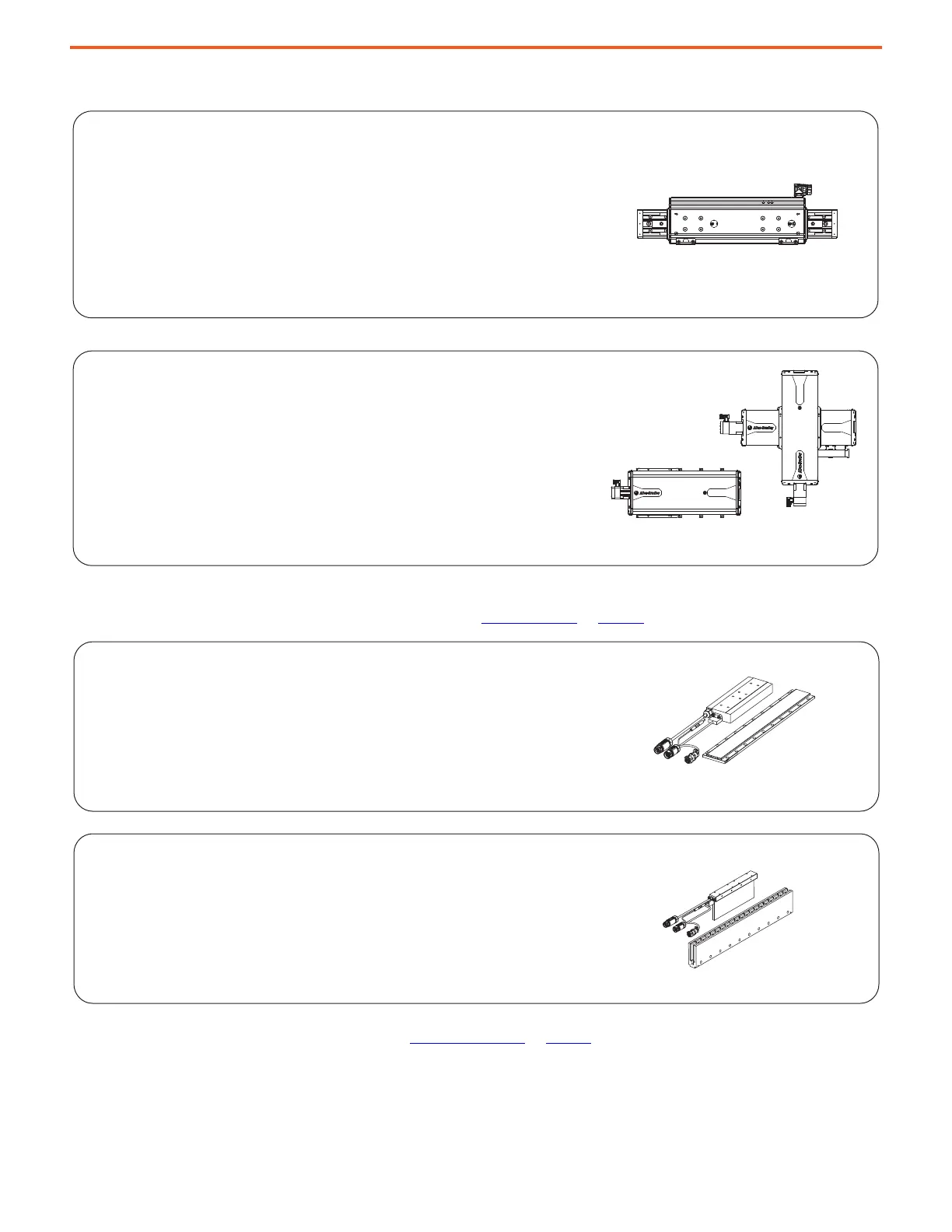

Select a Kinetix Motion Control System
Select a Linear Motion Family
To compare features across linear thrusters and linear stages, refer to Linear Actuators on page 28.
To compare features across linear motor families, refer to Linear Servo Motors
on page 27.
Kinetix MP Integrated Linear Stages
Kinetix MPAS integrated linear stages extend the performance and reliability of Kinetix MP servo motors technology to ballscrew and
direct-drive linear slide-type actuators.
Kinetix MPMA integrated multi-axis linear stages extend the Allen-Bradley actuator portfolio into predefined and pre-assembled
multi-axis configurations to suit a variety of manufacturing needs.
• 200/230V and 400/460V operation (200/230V for only 150 mm direct-drive frame size)
• High-energy, (rare-earth) magnets
• Carriage and base mounting design allows 200 and 250 mm frame sizes to be stacked
• IP30 environmental rating with unique, long life strip seal system
• 83…521 N (19…117 lb) continuous stall force
• 2090-Series motor power/brake and feedback cable connectors
LDAT-Series Integrated Linear Thrusters
The LDAT-Series linear thruster is a robust, high-speed linear actuator with an integrated linear guide that is capable of pushing, pulling, or carrying a load.
• Increased reliability due to direct-drive technology with single linear guide, single wear item, caged-ball linear
bearings, and elimination of wear items associated with rotary to linear motion conversion
• Integrated linear bearing provides the ability to carry a load without having to mount and align external bearings
• Multiple mounting surfaces and methods for ease of mounting into your machine
• Couples directly to the item that needs to be moved
• IP30 environmental rating with strip cover
• High velocities, up to 5 m/s (16 ft/s), and acceleration, 49 m/s
2
(160 ft/s
2
) standard
• Peak forces ranging from 168…5469 N (38…1229 lb)
• 2090-Series motor power/brake and feedback cable connectors
C
A
T.
N
O
.
LD
C
-
M
0
7
5
5
0
0
S
E
R
I
A
L
N
O
.
X
X
X
X
X
X
X
X
X
S
E
R
I
E
S
A
w
w
w
.
ab
.
c
o
m
M
A
D
E
I
N
U
S
A
LDC-Series Iron Core Linear Motors
LDC-Series linear motors technology provides cost-effective options to help you improve machine throughput while reducing
maintenance and downtime.
• 200/400V and 460V AC operation (LDC-Series)
• Cogging torque <5% of the continuous force (LDC-Series)
• Speed capabilities to 10 m/s (32.8 ft/s) to increase machine productivity
• IP65 environmental rating and RoHS compliant
• 74…2882 N (17…648 lb) continuous stall force (LDC-Series)
• 2090-Series motor power/brake and feedback cable connectors
LDL-Series Ironless Linear Motors
LDL-Series linear motors technology provides cost-effective options to help you improve machine throughput while reducing
maintenance and downtime.
• 230V AC operation (LDL-Series)
• Non-cogging technology for smooth motion (LDL-Series)
• Speed capabilities to 10 m/s (32.8 ft/s) to increase machine productivity
• IP65 environmental rating and RoHS compliant
• 63…596 N (14…134 lb) continuous stall force (LDL-Series)
• 2090-Series motor power/brake and feedback cable connectors
