Rockwell Automation Allen-Bradley Kinetix 5700 - Select Servo Drive Accessories

20 Rockwell Automation Publication KNX-SG001H-EN-P - December 2020
Select a Kinetix Motion Control System

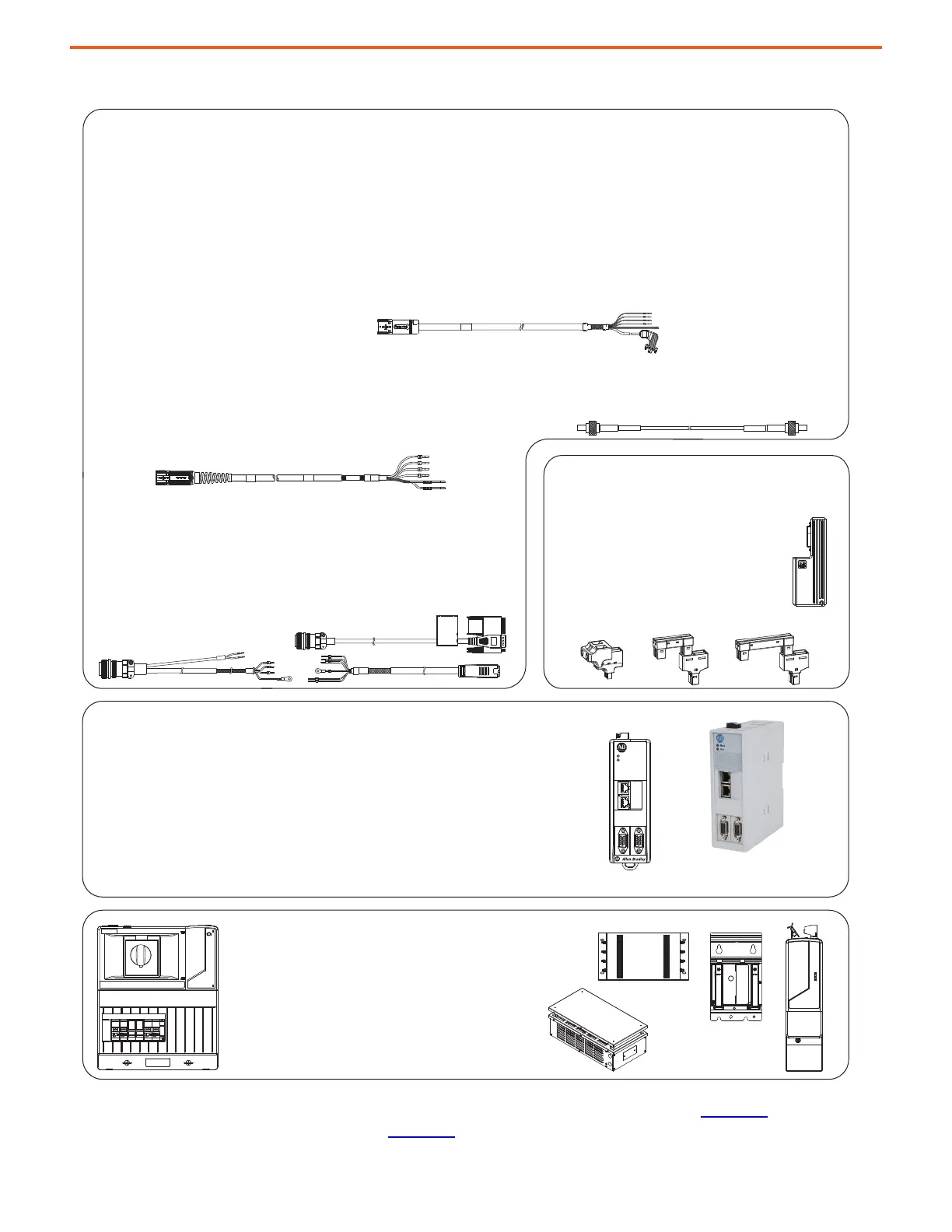

Select Servo Drive Accessories
For more information on accessories, refer to Kinetix Servo Drives Specifications Technical Data, publication KNX-TD003 and Motion Control
Accessories Specifications Technical Data, publication KNX-TD004
.
MOD
NET
OUTPUT-A OUTPUT-B
2
1
• 2090-Series single cable technology for Kinetix VP motors and actuators
• Designed in accordance with NFPA-79
• Designed in accordance to meet various IEC and VDE standards
• 2090-CSBM1xx-xxLFxx (PUR) continuous-flex cables
• 2090-CSxM1xx-xxVAxx (PVC) standard (non-flex) cables
• PVC and PUR jacket with durable mechanical and chemical properties
• UL Recognized bulk cable, DESINA compliant jacket coloring for easy identification
• 6, 8, 10, 14, and 18 AWG continuous-flex cables and continuous-flex extension cables
are suitable for 10 million flex-cycles at 7 times cable diameter or 15 million flex-cycles
at 10 times cable diameter
• 5 million flex-cycles in bending (tic-toc) applications
Halogen-free PUR and PVC Single Motor Cables
Connector Kits, Converter Kits, and Breakout Components
Power Components
• Bulletin 2094 power rail, shunt module, or slot-filler module for
Kinetix 6000, Kinetix 6200, Kinetix 6500 drives
• Bulletin 2094 line interface modules, designed to replace many of the
common input power devices required for your servo drive system
• Bulletin 2198 and 2090 AC line filters
• Bulletin 2198, 2090, and 1394 external shunt modules
• Connector kits for motor feedback, I/O, and safety
signals
• Feedback converter kits for Hiperface-to-DSL
and EnDat to Hiperface
• Breakout components for motor feedback
and I/O signals
• Safe-off components for cascading safe-off
signals from drive-to-drive
• Bulletin 2198 Bus-sharing connector kits
The Allen-Bradley encoder output module is a DIN-rail mounted EtherNet/IP network-based
standalone module capable of generating output pulses in multiple encoder protocols to a
customer-supplied peripheral device (cameras, for example, used in line-scan vision
systems). The encoder output module supports real and virtual axes for systems using the
integrated motion on EtherNet/IP network.
• Synchronizes third-party devices to our integrated motion system
• Configure and program with Studio 5000 Logix Designer software
• In-cabinet installation eliminates the need to mount encoders on the machine
• Syncs with any axis of motion. It is not limited to nearby axes.
• Configurable output: quadrature or pulse train
• Dual Ethernet ports support a variety of network topologies
2198-ABQE Encoder Output Module
• Interface cables for Sercos and Ethernet communication modules
• Interface cables for I/O control and cascading safe-off signals from drive-
to-drive
Interface Cables
TPE Single Motor Cables
• 2090-Series single cable technology for Kinetix VP motors and actuators
• Designed in accordance with NFPA-79
•2090-CSBM1xx-xxAFxx (TPE) continuous-flex cables
•2090-CSxM1xx-xxAAxx (TPE) standard (non-flex) cables
• TPE jacket with superior mechanical and chemical properties
• UL Listed bulk cable, DESINA compliant jacket coloring for easy identification
• 10, 14, and 18 AWG continuous-flex cables and continuous-flex extension
cables are suitable for 20 million flex-cycles at 10 times cable diameter. 10
million flex-cycles in bending (tic-toc) applications.
• 6 and 8 AWG continuous-flex cables and continuous-flex extension cables are
suitable for 6.5 million flex-cycles at 10 times cable diameter
• Motor power/brake and feedback (continuous-flex and non-flex) cables
• Designed specifically for use with Kinetix TLP servo motors
• 2090-CTxxMAxx-xxxxx cables with molded connectors for TLP-A046, TLP-A/B070,
TLP-A/B090, and TLP-A100 motors
• 2090-CTxxMC/MD/MExx-xxxxx cables with military connectors for TLP-A/B115, TLP-A/B145,
TLP-A/B200, TLP-A/B235 motors
• PVC jacket with durable mechanical and chemical properties
• UL Recognized bulk cable
Kinetix TLP Motor Power and Feedback Cables
Motor Power and Feedback Cables
• Motor power/brake and feedback (continuous-flex and non-flex) cables for
Kinetix MP and other Allen-Bradley rotary motors and linear actuators
• Designed in accordance with NFPA-79
• 2090-CPxM7xx (TC-ER) power-only and power/brake cables
• 2090-CFBM7xx (PLTC-ER) feedback cables
• UL Listed bulk cable, DESINA compliant jacket coloring for easy identification
• Up to 20 million flex cycles (12x OD bend radius)
