Kinetix 300 and Kinetix 350 EtherNet/IP Servo Drives
Typical Hardware Configuration

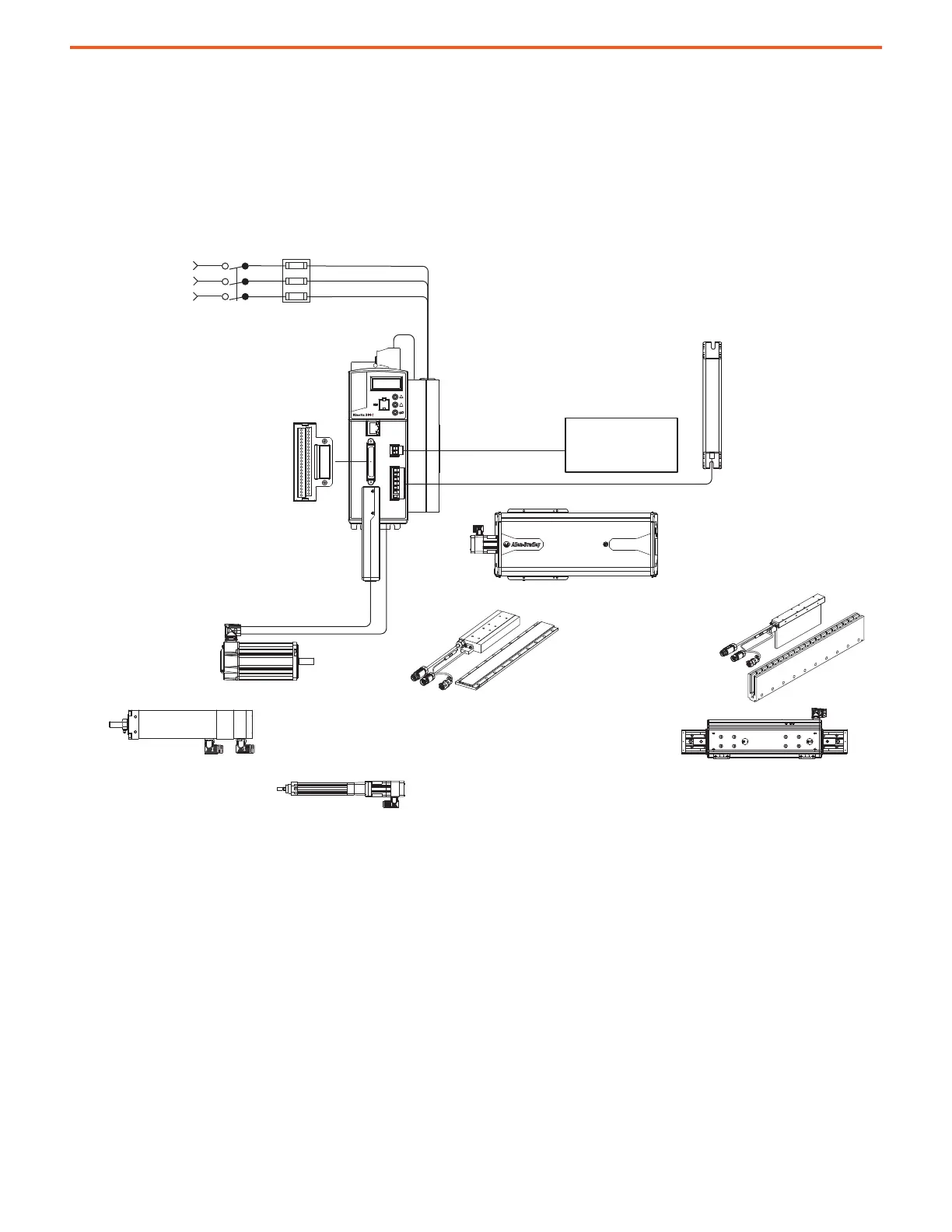

This typical hardware configuration illustrates the use of servo drives, motors, actuators, and motion accessories available for Kinetix 300
and Kinetix 350 drive systems.
Kinetix 300/350 Drive Systems
(1) LDC-Series and LDL-Series linear motors, and LDAT-Series linear thrusters are compatible with only Kinetix 300 servo drives.
CAT. NO. LDC-M075500
SERIAL NO. XXXX X XXXX
SERIES A
www.ab.co
m
M
ADE IN USA
2097-V3xxxx Kinetix 300 Servo Drive
or
2097-V3xxxx-LM Kinetix 350 Servo Drive
(Kinetix 300 drive shown)
2090-XXLF-TC116 or 2097-Fx
AC Line Filter (optional equipment)
2097-F1 Filter Shown
Line
Disconnect
Device
Circuit
Protection
Three-phase
Input Power
24V DC Control
Back-up Power Supply
(optional equipment)
Kinetix MP and TLY
Rotary Motors
(MPL-Bxxxx motors shown)
Bulletin 2090
Motor Feedback Cables
Bulletin 2090
Motor Power Cables
2097-TB1 Terminal
Expansion Block
2097-Rx
Shunt Resistor
(optional equipment)
Kinetix MPAR Electric Cylinders
(MPAR-Bxxxx electric cylinders shown)
Kinetix MPAS Integrated Linear Stages
(MPAS-B9xxx ballscrew shown)
Kinetix MPAI Heavy-duty Electric Cylinders
(MPAI-Bxxxx electric cylinders shown)
2090-K2CK-D15M
Low-profile Connector Kit
LDC-Series Linear Motors
(1)
(LDC-Cxxxxxxx linear motor shown)
LDL-Series Linear Motors
(1)
(LDL-xxxxxxxx linear motor shown)
LDAT-Series Linear Thrusters
(1)
(LDAT-Sxxxxxx-xBx or
LDAT-Sxxxxxx-xDx linear thrusters)
