Rockwell Automation Allen-Bradley Kinetix 5700 Selection Guide

82 Rockwell Automation Publication KNX-SG001H-EN-P - December 2020
Kinetix 5500 Servo Drives

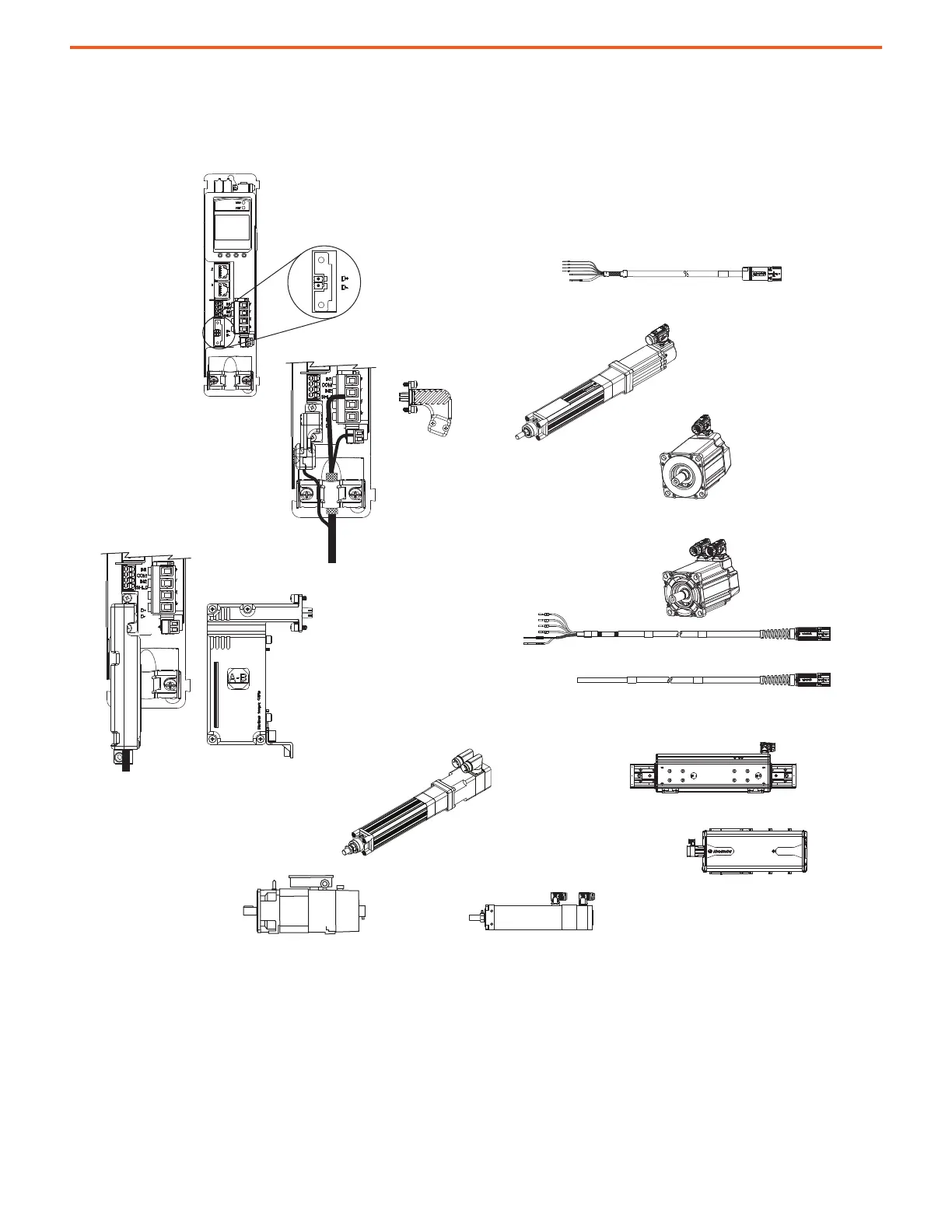

Motor Feedback and Feedback-only Configurations
Feedback connections are made at the 2-pin motor feedback (MF) connector. These examples illustrate how you can use the Bulletin 2198
connector kits for making these connections.
2090-CSxM1DF or 2090-CSxM1DG
Single Motor Cables
2198-KITCON-DSL Connector Kit
• Accepts DSL Hiperface motor feedback from
Kinetix VPL, VPF, VPH, VPS servo motors and
Kinetix VPAR electric cylinders.
• Feedback-only (DSL)
Kinetix MPAR Linear Actuators
(MPAR-B3xxxx electric cylinder is shown)
Kinetix MP Rotary Motors
(MPL-Bxxxx motor is shown)
LDAT-Sxxxxxx-xDx
Linear Thrusters
2198-H2DCK Converter Kit
Converts 15-pin Hiperface feedback into 2-pin DSL feedback for:
• Kinetix MP rotary motors and linear actuators
• LDAT-Series linear thrusters
• Feedback-only (absolute single-turn/multi-turn Hiperface)
2-pin Motor Feedback
(MF) Connector
2198-Hxxx-ERSx Drive
(front view)
Kinetix MPAS Linear Actuators
(MPAS-B9xxx ballscrew linear stage is shown)
Kinetix VP Rotary Motors
(VPL-Bxxxx motor is shown)
Kinetix MPAI Linear Actuators
(MPAI-B3xxxx heavy-duty electric cylinder is shown)
Induction Rotary Motors
(no feedback, V/Hz)
Bulletin 2090 Motor Power and Feedback Cables
Kinetix VPAR Linear Actuators
(VPAR-B3xxxx electric cylinder is shown)
