Rockwell Automation Publication KNX-SG001H-EN-P - December 2020 81
Kinetix 5500 Servo Drives

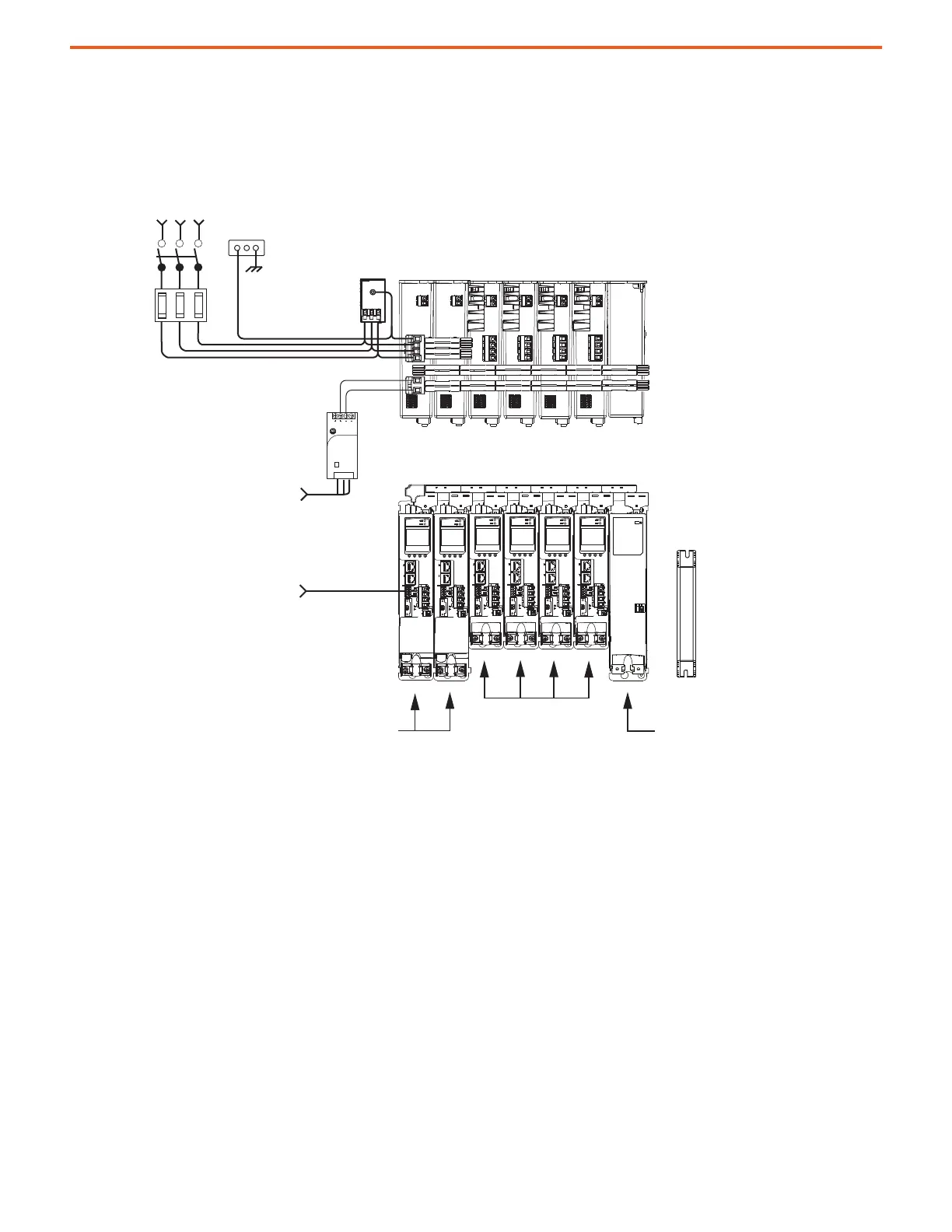

Shared AC/DC Hybrid Configuration
In this multi-axis example, three-phase AC input power is supplied to two converter drives. The converter drive ratings must be the same,
and greater than or equal to the power ratings of the inverter drives. This parallel converter configuration increases the DC power supplied
to the inverter drives.
1606-XL
Power Supply
Input
Allen-Bradley
Kinetix 5500 Servo Drive System (top view)
2097-Rx
Shunt Resistor
(optional component)
Line
Disconnect
Device
Circuit
Protection
Three-phase
Input Power
Digital Inputs
to Sensors and Control String
2198-H040-ERS
Common-bus (converter)
Leader Drives
1606-XLxxx
24V DC Control, Digital Inputs,
and Motor Brake Power
(customer-supplied)
AC Input Power
Bonded Cabinet
Ground Bus
Kinetix 5500 Servo Drive System (front view)
2198-H008-ERS
Common-bus (inverter)
Follower Drives
2198-DBRxx-F
AC Line Filter
(required for CE)
Shared AC (mains AC input)
Shared DC (DC common bus)
Shared 24V (control power input)
Shared-bus connection system for
bus-sharing configurations.
2198-CAPMOD-1300 Capacitor Module
(optional component)
To Next Page
