168 Rockwell Automation Publication KNX-SG001H-EN-P - December 2020
Kinetix 6200 and Kinetix 6500 Modular Servo Drives
In this example, the devices are connected by using star topology. Each device is connected directly to the switch.
Kinetix 6500 control modules have dual ports, so linear topology is maintained from drive-to-drive, but the 2094 power rail modules and
other devices operate independently. The loss of one device does not impact the operation of other devices.

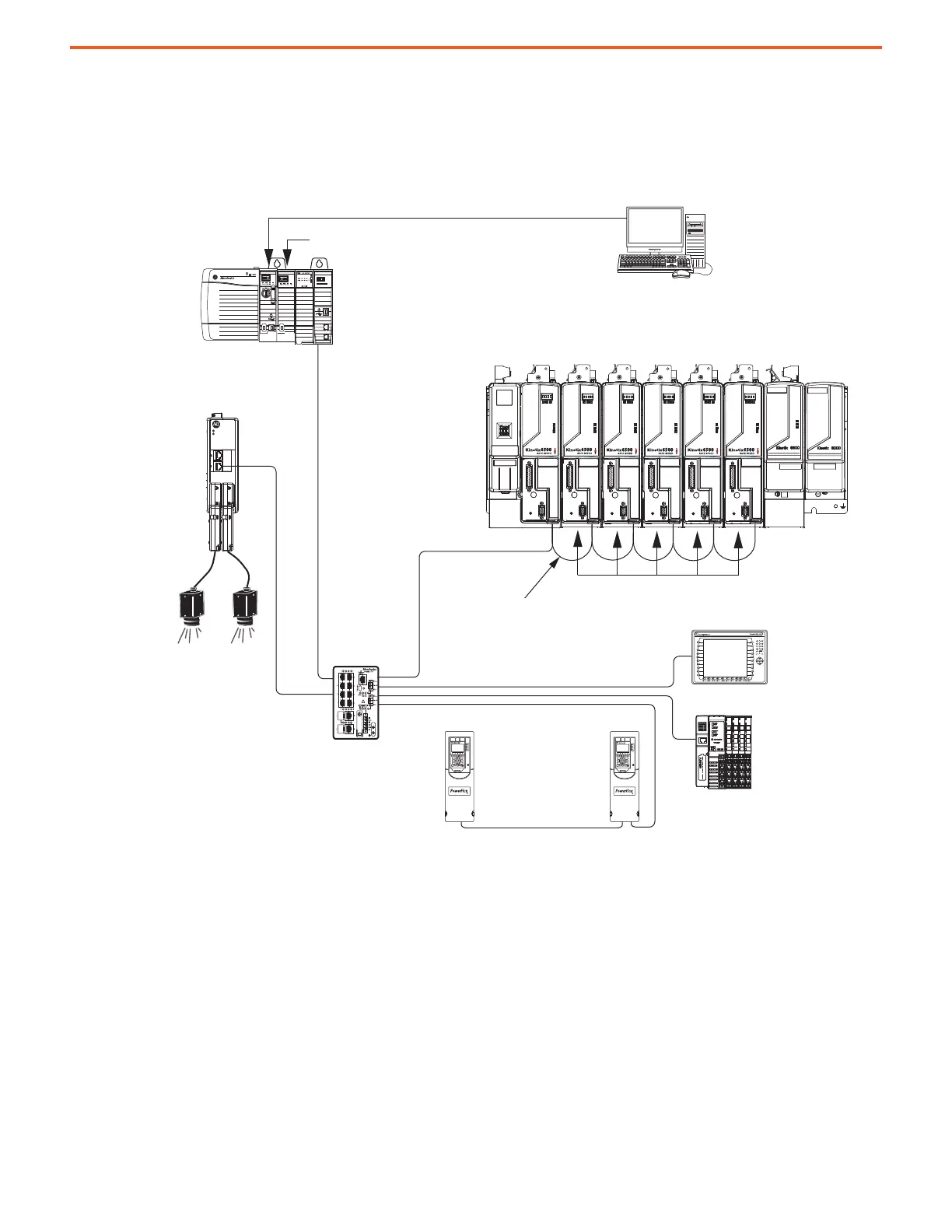

Kinetix 6500 Star Communication (EtherNet/IP network)
755
755
LNK1LNK2NE T OK
EtherNet/IP
1
2
MOD
NET
OUTPUT-A OUTPUT-B
RSLogix 5000 Software or the
Studio 5000 Logix Designer Application
Kinetix 6500 Modular Multi-axis Servo Drive System
2094-BMxx-M Axis Modules (5) with
2094-EN02D-M01-Sx Control Modules (5)
2094-BCxx-Mxx-M
Integrated
Axis Module
with
2094-EN02D-M01-Sx
Control Module
1585J-M8CBJM-x
Ethernet (shielded) Cable
1756-ENxT EtherNet/IP Module
1734-AENT POINT I/O
EtherNet/IP Adapter
ControlLogix Controller Programming Network
PanelView Plus
Display Terminal
1783-BMS
Stratix 5700
Switch
1585J-M8CBJM-OM3
0.3 m (1.0 ft) Ethernet cable
for drive-to-drive connections.
PowerFlex 755 Drives
with Dual-port EtherNet/IP
Option Module
2198-ABQE
Encoder Output Module
Line Scan
Cameras
Logix 5000 Controller
(ControlLogixis shown)
To Next Page
