Rockwell Automation Publication KNX-SG001H-EN-P - December 2020 85
Kinetix 5500 Servo Drives
In this example, the devices are connected by using star topology. Each device is connected directly to the switch. Kinetix 5500 drives have
dual ports, so linear topology is maintained from drive-to-drive, but Kinetix 5500 drive system and other devices operate independently. The
loss of one device does not impact the operation of other devices.

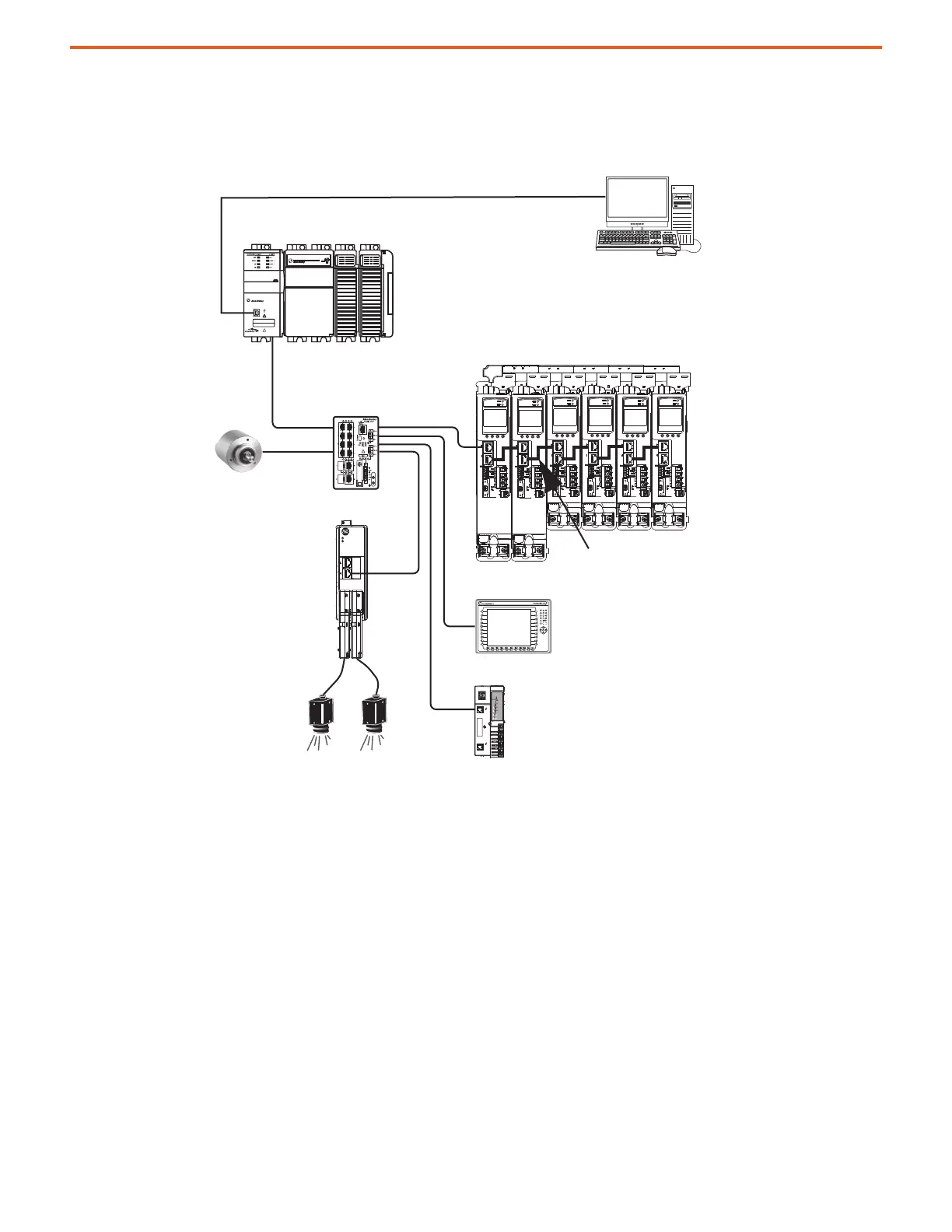

Kinetix 5500 Star Communication
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
MOD
NET
OUTPUT-A OUTPUT-B
1585J-M8CBJM-x
Ethernet (shielded) Cable
1734-AENTR POINT I/O
EtherNet/IP Adapter
CompactLogix Controller Programming Network
PanelView Plus
Display Terminal
1783-BMS
Stratix 5700
Switch
1585J-M8CBJM-OM3
0.15 m (6 in.) Ethernet cable
for drive-to-drive connections.
Kinetix 5500 Servo Drive System
CompactLogix 5370 Controller
Studio 5000 Logix Designer
Application
842E-CM Integrated
Motion Encoder
2198-ABQE
Encoder Output Module
To Next Page
