5. FASTENING SETTING mode (Type S)
5-28
●Setting the detail of the JOG
Following items are set up in the detail setting of the JOG. Help windows of each item are displayed on the
bottom of the screen.
For more details, refer to the USER’S MANUAL.

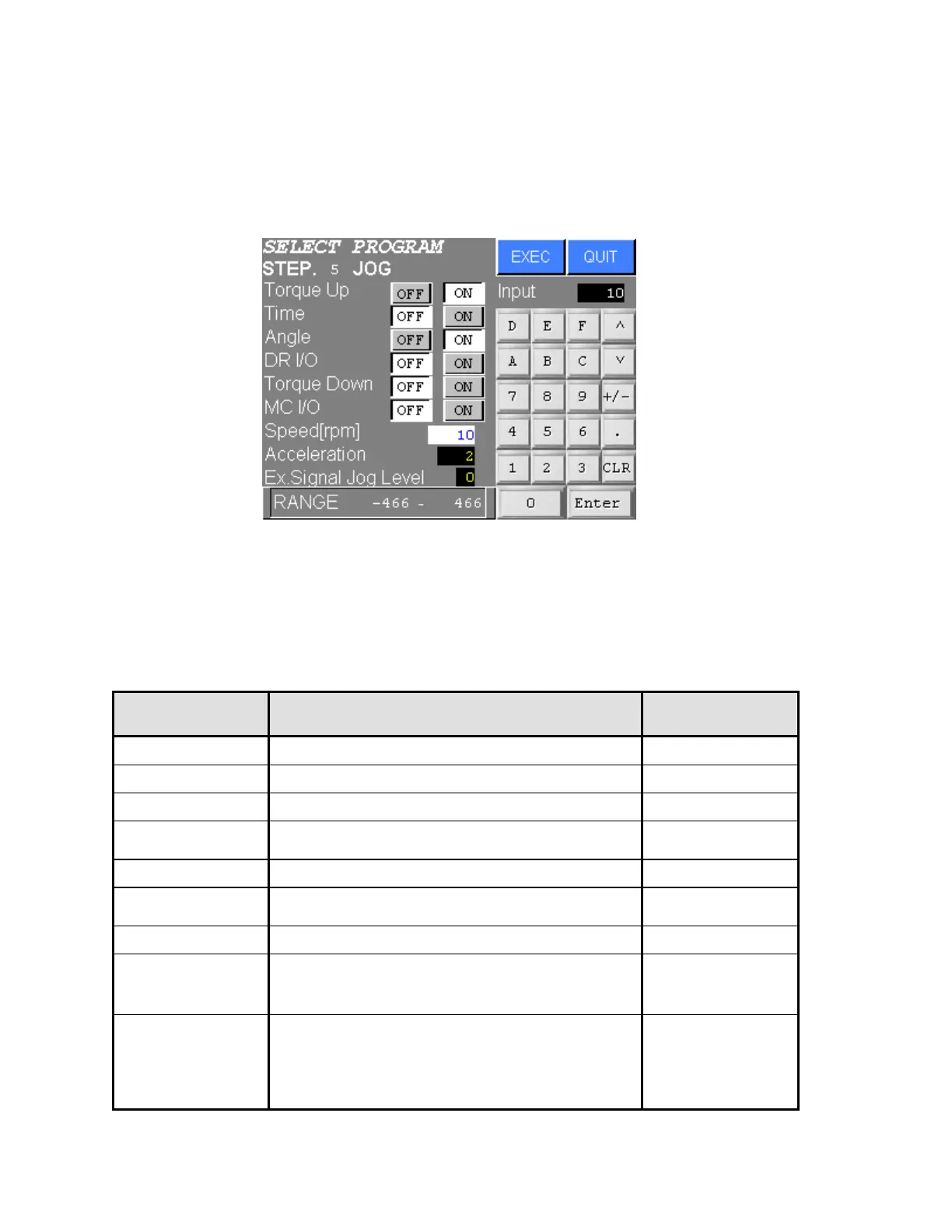

Figure 5.3-12 DETAIL SETTING SCREEN OF JOG
Press the switch of desired items to set the stepping condition.
Input the value using numeric input keys and press EXEC. Press QUIT to cancel all new settings.
The contents of the value inputted on this screen are written to the NUTRUNNER when EXEC is pressed on
the Figure 5.3-6 SELECT PROGRAM SETTING SCREEN.
ITEM CONTENTS NOTE
Torque Up When the torque reaches the JOG TORQUE. Stepping Condition
Time When the time reaches the JOG TIME. Stepping Condition
Angle When the angle reaches the JOG ANGLE. Stepping Condition
DR I/O
When the JOG signal through the I/O
interface of
DRIVER is inactivated.
Stepping Condition
Torque Down When the torque is reduced to the JOG TORQUE. Stepping Condition
MC I/O
When the JOG OFF signal is received from
the
MULTI CONTROLLER through RS485.
Stepping Condition
Only type M
Speed[rpm] The target constant speed is set.
Acceleration
(Deceleration)
The acceleration (or deceleration)
rate used to reach
the set speed.
Range 1〜1000
Recommende
d value
0002
External Signal Jog
Level
External signal JOG LEVEL (1 to 4) is set.
This setting is required when STEPPING
CONDITION of 20h is selected (Stepping condition is
fulfilled when the JOG OFF signal is received from
the
MULTI CONTROLLER through RS485.).
Only type M
Table 5.3-6 SETTING ITEMS OF JOG SELECT PROGRAM SETTING
