DISPLAY PANEL MANUAL
5-29
●Setting the detail of the INTERLOCK
Following items are set up in the detail setting of the INTERLOCK. Help windows of each item are displayed on
the bottom of the screen.
For more details, refer to the USER’S MANUAL.

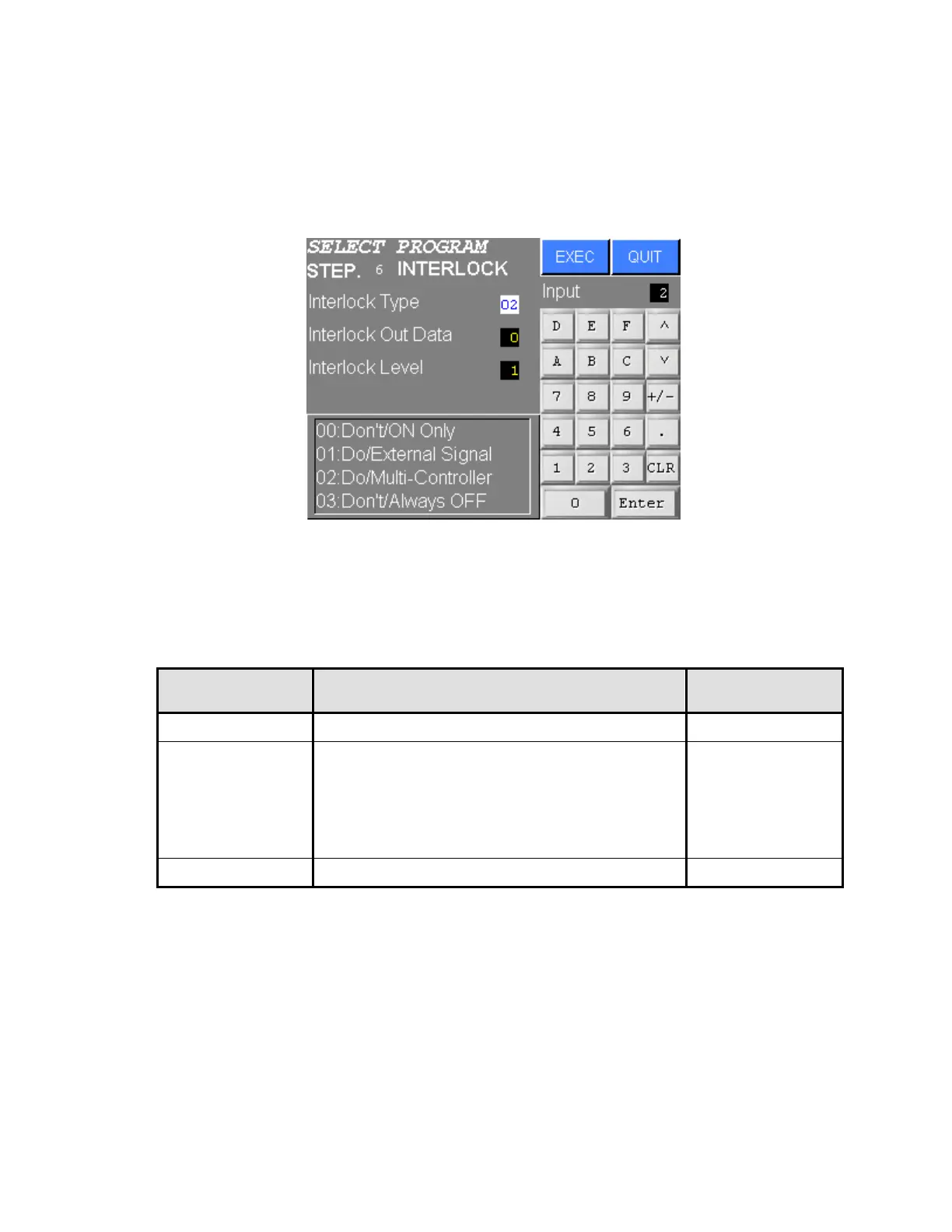

Figure 5.3-13 DETAIL SETTING SCREEN OF INTERLOCK
Input the value using numeric input keys and press EXEC. Press QUIT to cancel all new settings.
The contents of the value inputted on this screen are written to the NUTRUNNER when EXEC is pressed on
the Figure 5.3-6 SELECT PROGRAM SETTING SCREEN.
ITEM CONTENTS NOTE
Interlock Type The type of interlock is set.
Interlock Out Data
This byte is effective when "OUTPUT DATA
" is being
set on "INTERLOCK COMMAND OUTPUT DATA
" by
"DATA SELECTION AD".
The setting data of the
"external output data" is outputted in the output data
AH. (Refer to the chapter 4 of the "INSTALLAT
ION
MANUAL".)
Interlock Level The level (1 - 4) of interlock is set.
Table 5.3-7 SETTING ITEMS OF INTERLOCK SELECT PROGRAM SETTING
