DISPLAY PANEL MANUAL
5-31
●Setting the detail of the SOCKET RELEASE
Following items are set up in the detail setting of the SOCKET RELEASE. Help windows of each item are
displayed on the bottom of the screen.
For more details, refer to the USER’S MANUAL.

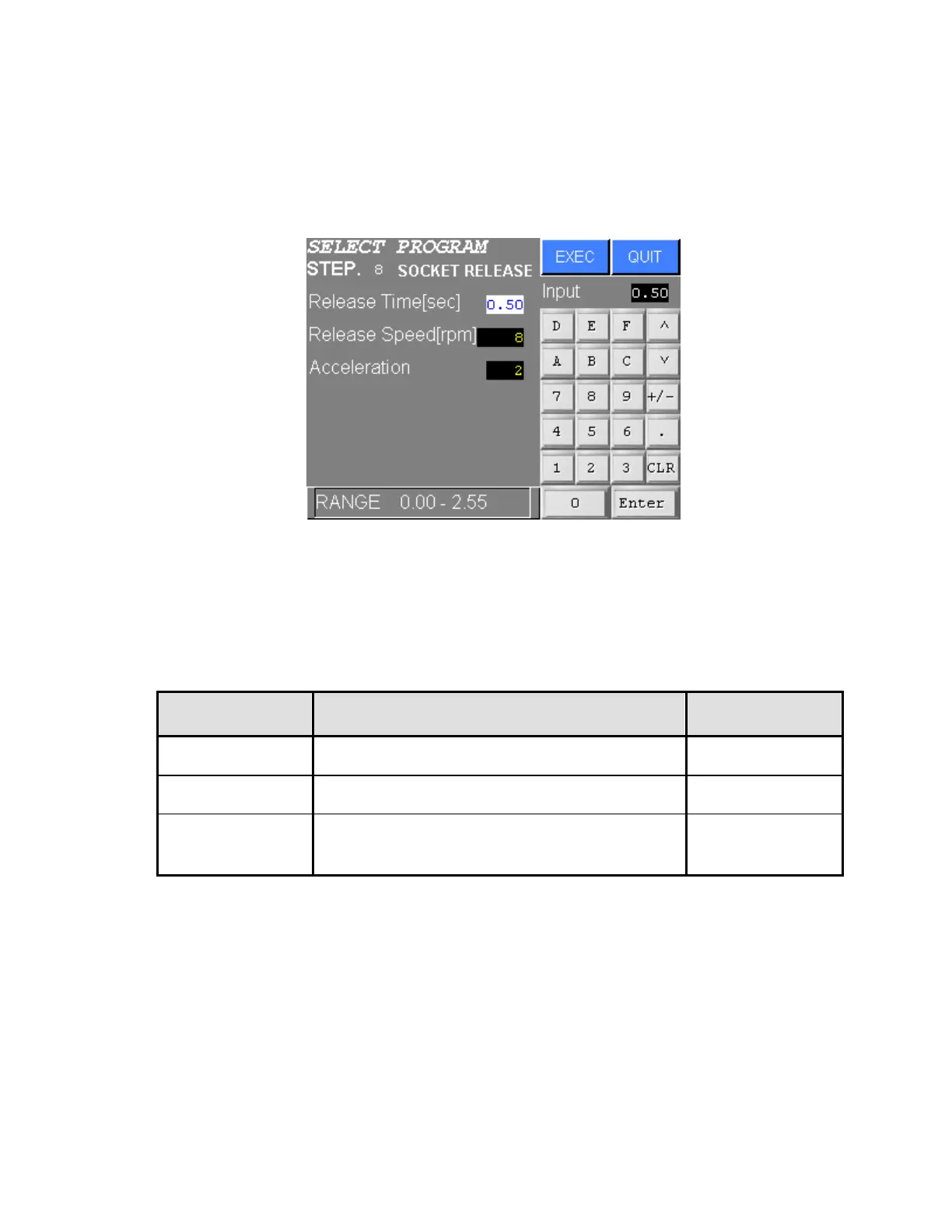

Figure 5.3-15 DETAIL SETTING SCREEN OF SOCKET RELEASE
Input the value using numeric input keys and press EXEC. Press QUIT to cancel all new settings.
The contents of the value inputted on this screen are written to the NUTRUNNER when EXEC is pressed on
the Figure 5.3-6 SELECT PROGRAM SETTING SCREEN.
ITEM CONTENTS NOTE
Release Time[sec]
The reverse rotation time (0 -
the socket is set.
Release Speed
[rpm]
The socket release rpm is set.
Acceleration
(Deceleration)
The acceleration (or deceleration)
the set speed.
Range 1〜1000
0002
Table 5.3-9 SETTING ITEMS OF SOCKET RELEASE SELECT PROGRAM SETTING
To Next Page
