Testing and Troubleshooting
Commissioning Tests
Step 5. Use the front-panel METER function or the serial port MET
command to verify the results.
Delta-Connected Voltages
Perform the following steps to test delta-connected voltages:
Step 1. Connect the current source to the relay, as shown in Figure 10.4
(VIWDG = 1) or Figure 10.5 (VIWDG = 2).
Step 2. Connect the voltage source to the relay, as shown in
Figure 10.7. Make sure that DELTA_Y := DELTA.

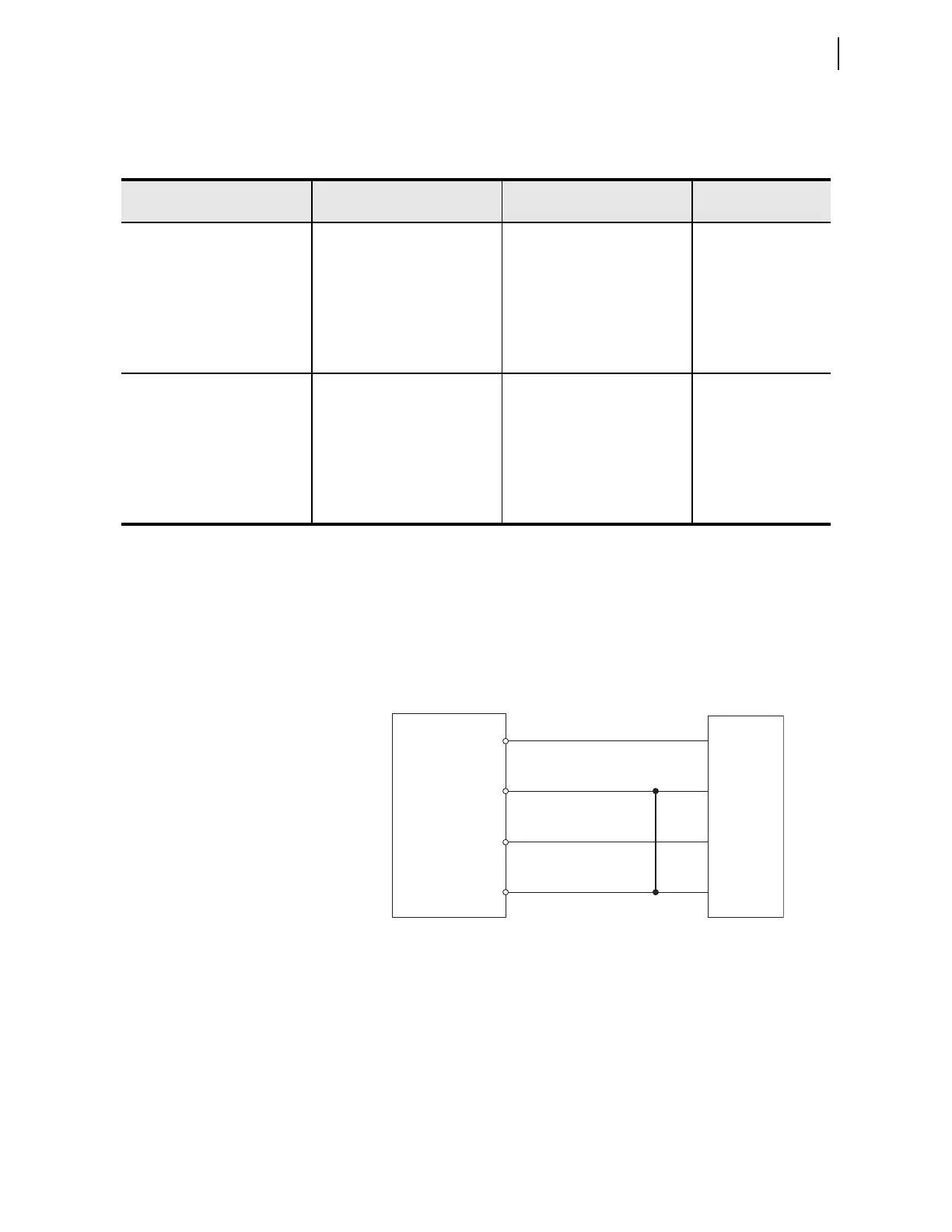

Figure 10.7 Delta Voltage Source Connections
Step 3. Using the front-panel SET/SHOW or the serial port SHOW
command, record the CTRn (where n = VIWDG setting), PTR,
and PHROT setting values.
Step 4. Apply the current and voltage quantities shown in Column 1 of
Table 10.6.
Values are given for PHROT := ABC and PHROT := ACB.
Step 5. Use the front-panel
METER or the serial port MET command to
verify the results.
Table 10.5 Power Quantity Accuracy—Wye Voltages
a
Applied Currents and Voltages
Real Power
(kW)
Reactive Power (kVAR)
Power Factor
(pf)
PHROT := ABC
IAWn =2.5 
IBWn =2.5 146
ICWn =2.5 +94
Expected:
P = 0.898 • CTRn • PTR
Expected:
Q = 0.438 • CTRn • PTR
Expected:
pf = 0.90 lag
VA = 6 7 0
VB = 67 120
VC = 67 +120
Measured: Measured: Measured:
PHROT := ACB
IAWn =2.5 26
IBWn =2.5 +94
ICWn =2.5 146
Expected:
P = 0.898 • CTRn • PTR
Expected:
Q = 0.438 • CTRn • PTR
Expected:
pf = 0.90 lag
VA = 6 7 0
VB = 67 120
VC = 67 120
Measured: Measured: Measured:
a
n = VIWDG setting
SEL-787
E01
E02
E03
E04
Voltage
Test
Source
VA
VB
VC
VN
