3.7
Date Code 20150130 Instruction Manual SEL-787 Relay
PC Software
Settings
File > New
Selecting the New menu item creates new settings files. ACSELERATOR
QuickSet makes the new settings files from the driver that you specify in the
Settings Editor Selection dialog box.
ACSELERATOR QuickSet uses the Z
number in the FID string to create a particular version of settings. To get
started making SEL-787 settings with the Settings Editor in the Editor
Mode, select File > New from the main menu bar, and SEL-787 and 001 from
the Settings Editor Selection window as shown in Figure 3.6.

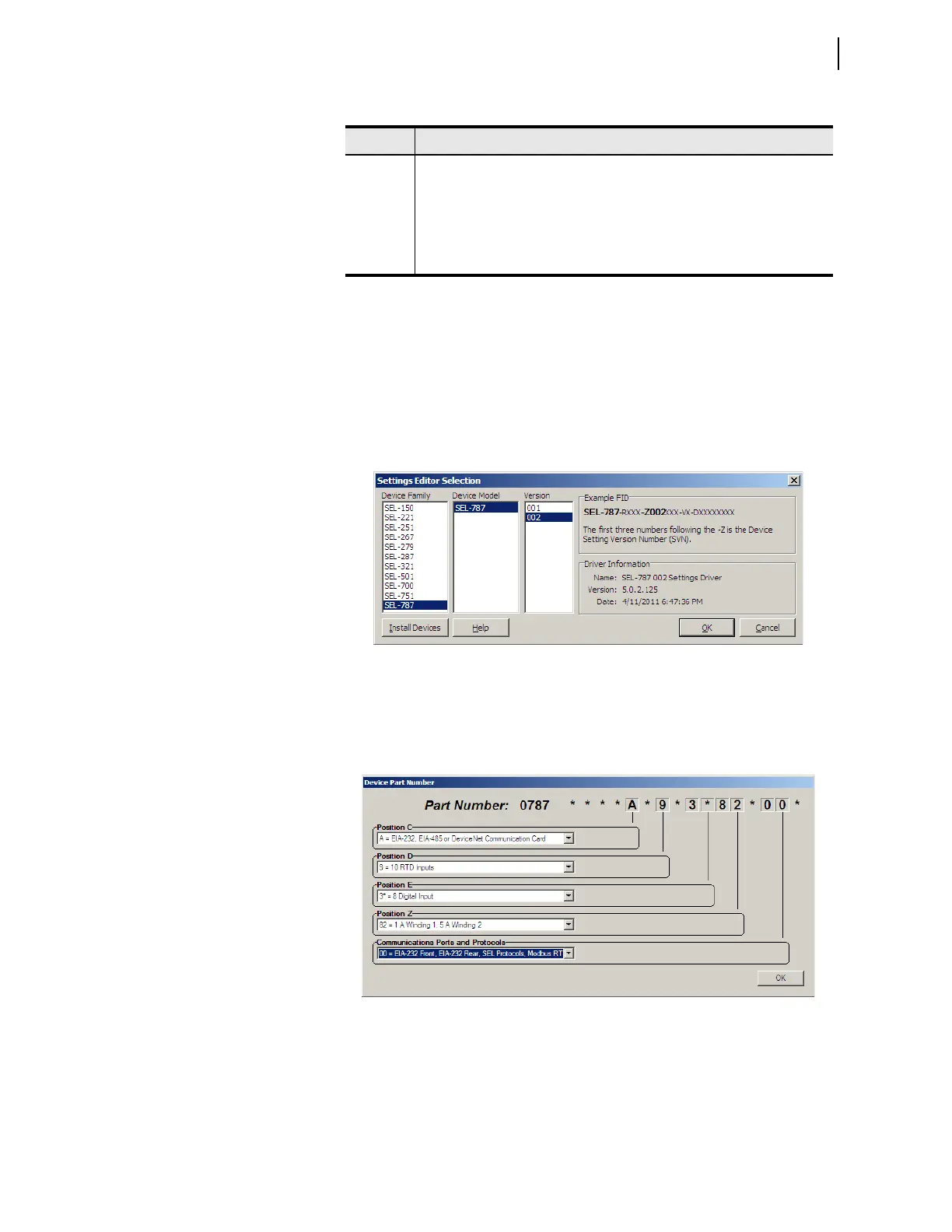

Figure 3.6 Selection of Drivers
After the relay model and settings driver selection, ACSELERATOR QuickSet
presents the Relay Part Number dialog box. Use this dialog box to configure
the Relay Editor to produce settings for a relay with options determined by the
part number, as shown in Figure 3.7. Press OK when finished.
Figure 3.7 Update Part Number
Figure 3.8 shows the Settings Editor screen. View the bottom of the Settings
Editor window to check the Settings Driver number. Compare the
ACSELERATOR QuickSet Settings Driver number and the first portion of the
Z number in the FID string (select Tools > Meter & Control > Status). These
numbers must match.
ACSELERATOR QuickSet uses this first portion of the Z
number to determine the correct Settings Editor to display.
Table 3.3 File/Tools Menus
Menus Description
<<, >> Use these navigation menu buttons to move from one category to the next
New Open a New record
Open Open an existing record
Read Read device settings and then create and open a new record
Convert Convert and open an existing record
