F.6
SEL-787 Relay Instruction Manual Date Code 20150130
IEC 61850 Communications
IEC 61850 Operation

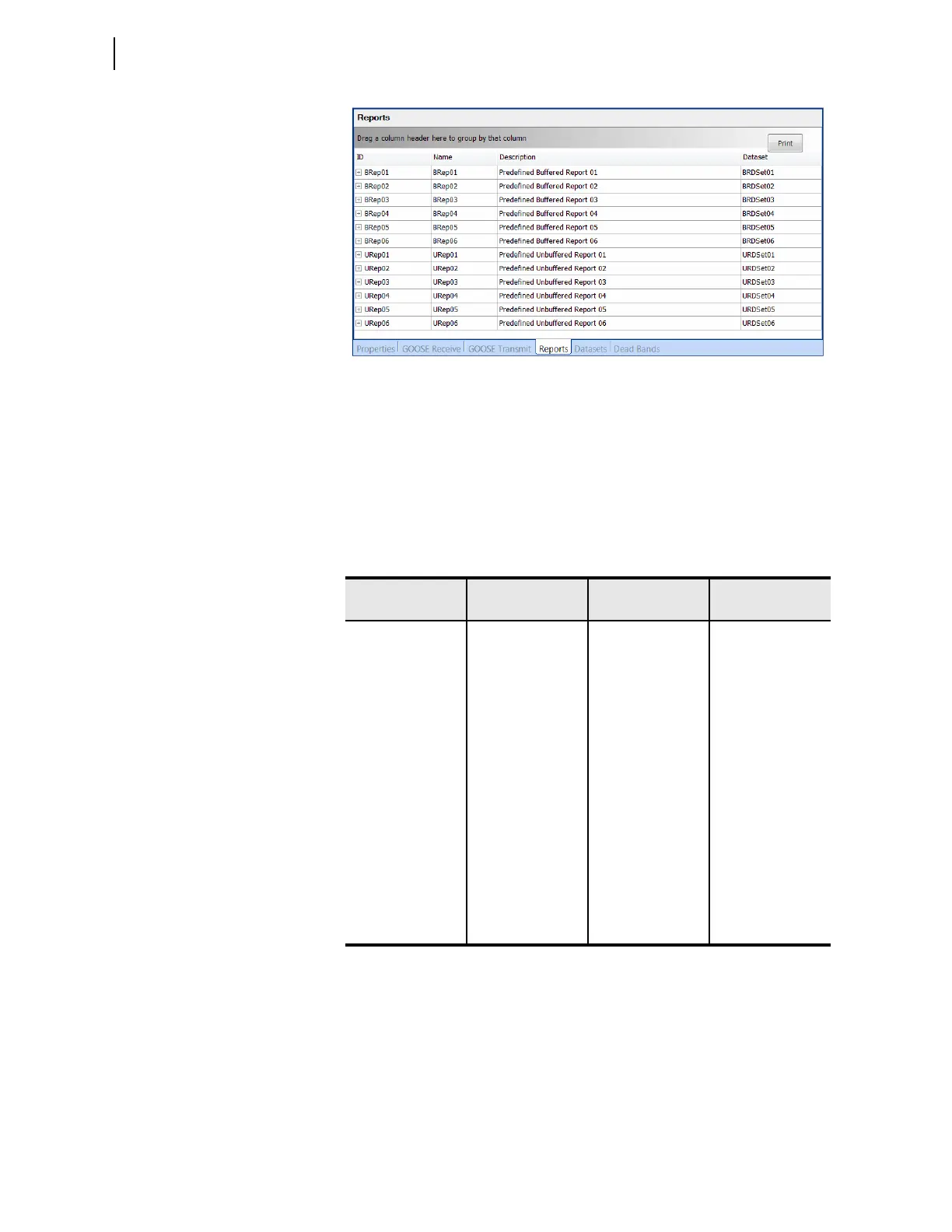

Figure F.1 SEL-787 Predefined Reports
There are 12 report control blocks, six buffered reports and six unbuffered. For
each report control block, there can be just one client association, i.e., only
one client can be associated to a report control block (BRCB or URCB) at any
given time. The number of reports (12) and the type of reports (buffered or
unbuffered) cannot be changed. However, by using
ACSELERATOR Architect,
you can reallocate data within each report dataset to present different data
attributes for each report beyond the predefined datasets. For buffered reports,
connected clients may edit the report parameters shown in Table F.4.
Table F.4 Buffered Report Control Block Client Access
RCB Attribute
User changeable
(Report Disabled)
User changeable
(Report Enabled)
Default Values
RptId YES BRep01–BRep06
RptEna YES YES FALSE
OptFlds YES seqNum
timeStamp
dataSet
configRef
reasonCode
dataRef
BufTm YES 500
TrgOp YES dchg
qchg
IntgPd YES 0
GI YES
ab
a
Exhibits a pulse behavior. Write a one to issue the command. Once the command is
accepted, it will return to zero. Always read as zero.
b
When disabled, a GI will be processed and the report buffered if a buffer has been
previously established. A buffer is established when the report is enabled for the first
time.
YES
a
FALSE
PurgeBuf YES
a
FALSE
EntryId YES 0
