PC Software
Event Analysis
File > Send
To transfer the edits made in the ACSELERATOR QuickSet edit session, you
must send the settings to the relay. Select Send from the File menu. In the
dialog box that opens, select the settings section you want transferred to the
relay by checking the appropriate box.
Edit > Part Number
Use this menu item to change the part number if it was entered incorrectly
during an earlier step.
Text Files
Select Tools > Import and Tools > Export on the ACSELERATOR QuickSet
menu bar to import or export settings from or to a text file. Use this feature to
create a small file that can be more easily stored or sent electronically.
Event Analysis
ACSELERATOR QuickSet has integrated analysis tools that help you retrieve
information about relay operations quickly and easily. Use the event
information that the SEL-787 stores to evaluate the performance of a system
(select Tools > Events > Get Event Files). Figure 3.10 shows composite
screens for retrieving events.

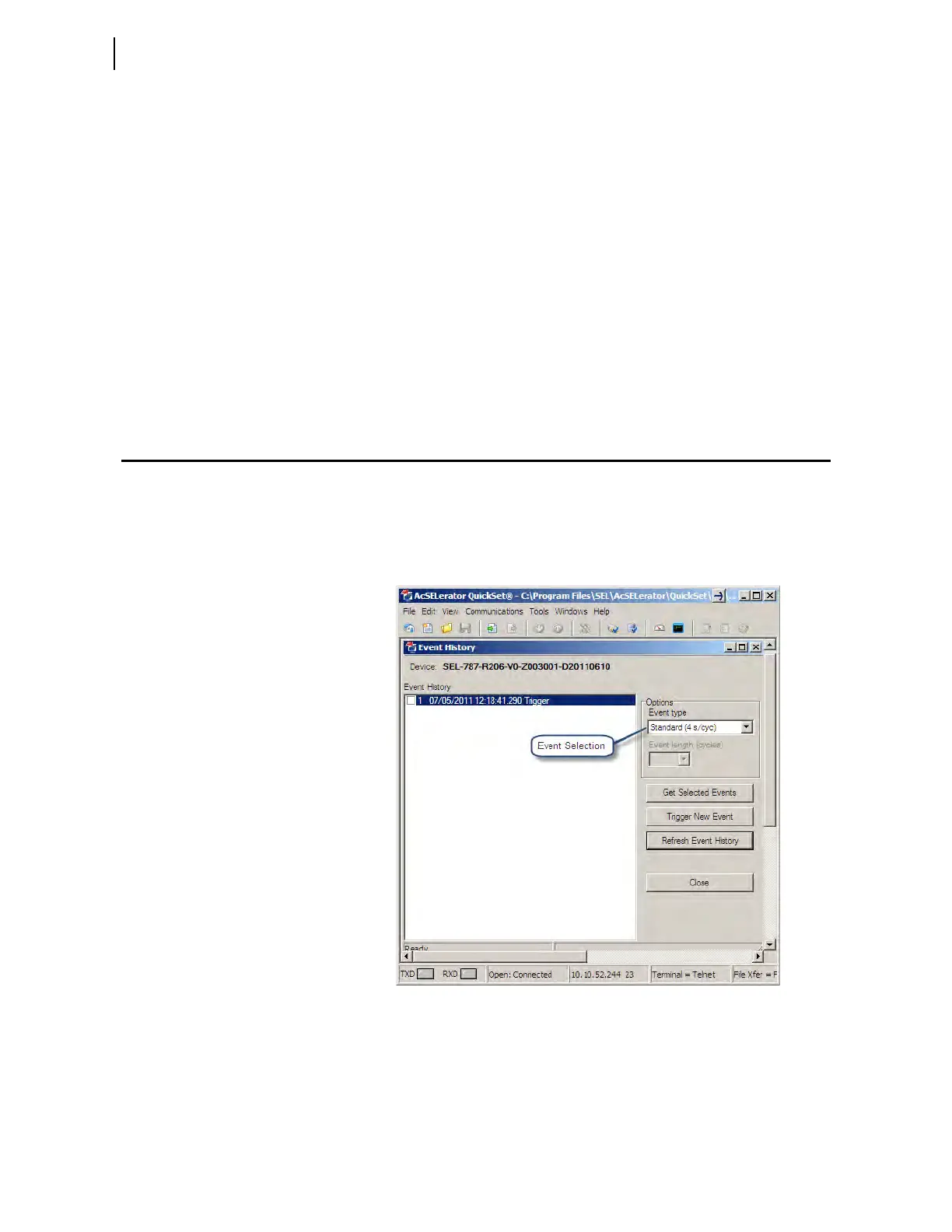

Figure 3.10 Composite Screens for Retrieving Events
Event Waveforms
The relay provides two types of event data captures: event reports that use
4 samples/cycle filtered data and 16 samples/cycle unfiltered (raw) data. See
Section 9: Analyzing Events for information on recording events. Use the
Options function in Figure 3.10 to select the 16 samples/cycle unfiltered
(raw) data event (default is 4 samples/cycle filtered data).
