PC Software
Meter and Control
Meter and Control
Click on Tools > Meter & Control to bring up the screen shown in
Figure 3.12. The HMI tree view shows all the functions available from the
HMI function. Unlike the self-configuration of the device, the HMI tree
remains the same regardless of the type of cards installed. For example, if no
Analog Input card is installed, the Analog Input function is still available, but
the device responds as follows:
No Analog Input Card Present.
Device Overview
The device overview screen provides an overview of the device. The Contact
I/O portion of the window displays the status of the two inputs and three
outputs of the main board. You cannot change these assignments.

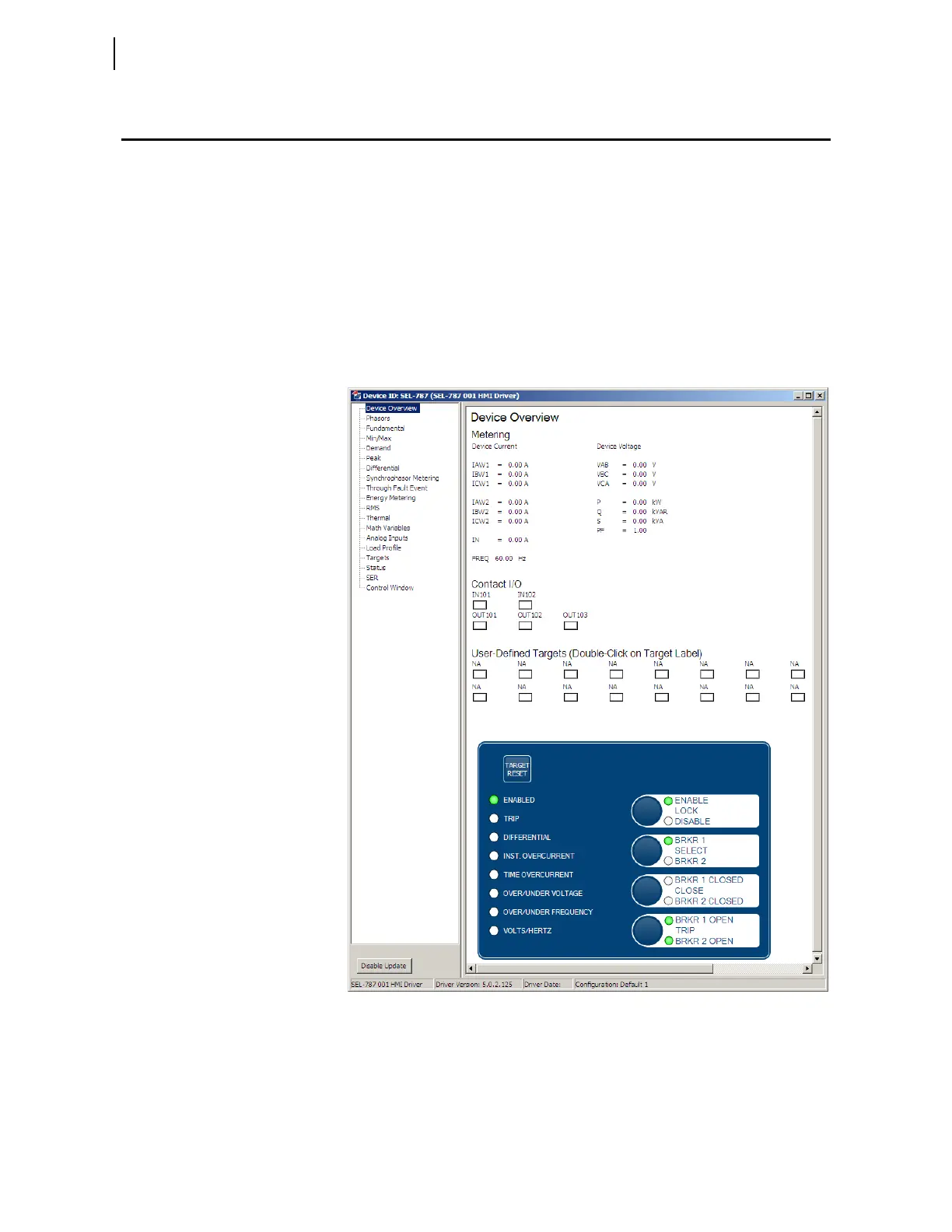

Figure 3.12 Device Overview Screen
You can assign any Relay Word bit to the 16 user-defined target LEDs. To
change the present assignment, double-click on the text above the square you
want to change. After double-clicking on the text, a box with available Relay
Word bits appears in the lower left corner of the screen. Select the appropriate
Relay Word bit, and click the Update button to assign the Relay Word bit to
