Sel SEL-787 - Figure 2.24 Example DC Connections

To Next Page

To Previous Page

2.30

SEL-787 Relay Instruction Manual Date Code 20150130

Installation

AC/DC Control Connection Diagrams

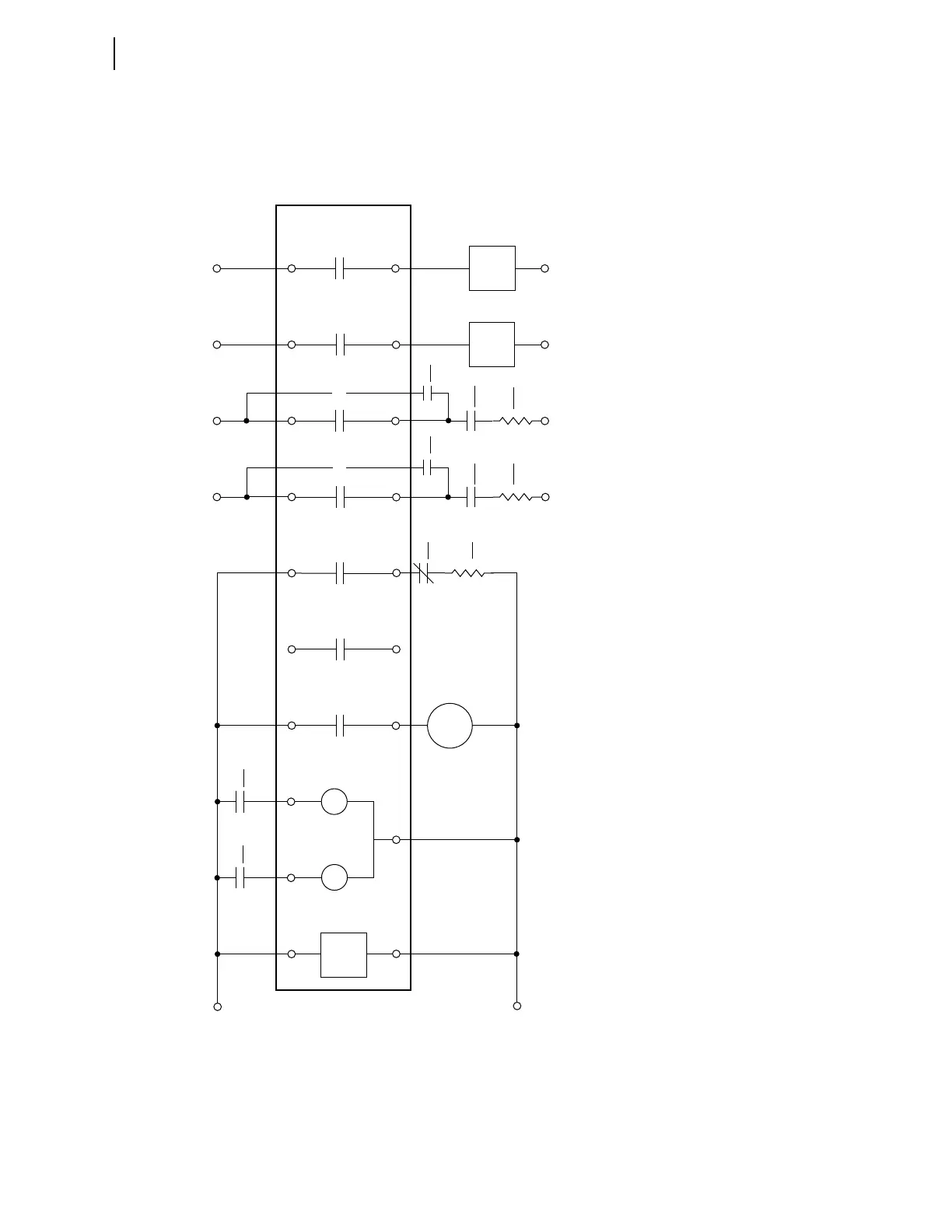

Figure 2.24 Example DC Connections

A01 A10 A12 A03 A05 A07 C01 C03 C05 C07

52-1 52-2

a a

A01 A11 A04 A06 A08 C02 C04 C06 C08

Relay

Fail

ANN

IN101 IN102

Power

Supply

86T

–DC

–DC -DC -DC -DC

SEL-787

(Partial)

Note 1: Assumes an optional 4DI/4DO card in Slot C for OUT301—OUT304.

Note 2: Remaining 4 inputs (IN301–IN304) and 1 output (OUT102)

Settings required for the above implementation:

52-1

Circuit

52-2

Circuit

52-1 52-2

a a

52-1

52-2

+DC +DC +DC +DC +DC

OUT101 OUT102 OUT103 OUT301 OUT302 OUT303

OUT304

OUT101 := HALARM

OUT101FS := Y

OUT102 := 0

OUT103 := TRIPXFMR

OUT103FS := N

52A1 := IN101

52A2 := IN102

OUT301 := TRIP1

OUT302 := TRIP2

OUT303 := CLOSE1

OUT304 := CLOSE2
