Vacuum Module
X
TRA Operator’s Manual 20077/021 US 13-3
Preliminary Setup
To use the XVAC, attach the vacuum line from the blood collection reservoir vacuum port to the inlet
port on the lid of the vacuum overflow trap. Refer to “Step 3: Setup of the Vacuum Line” on page 4-6.
Refer to
Chapter 15: Maintenance
for information about removing the vacuum overflow trap for
cleaning.

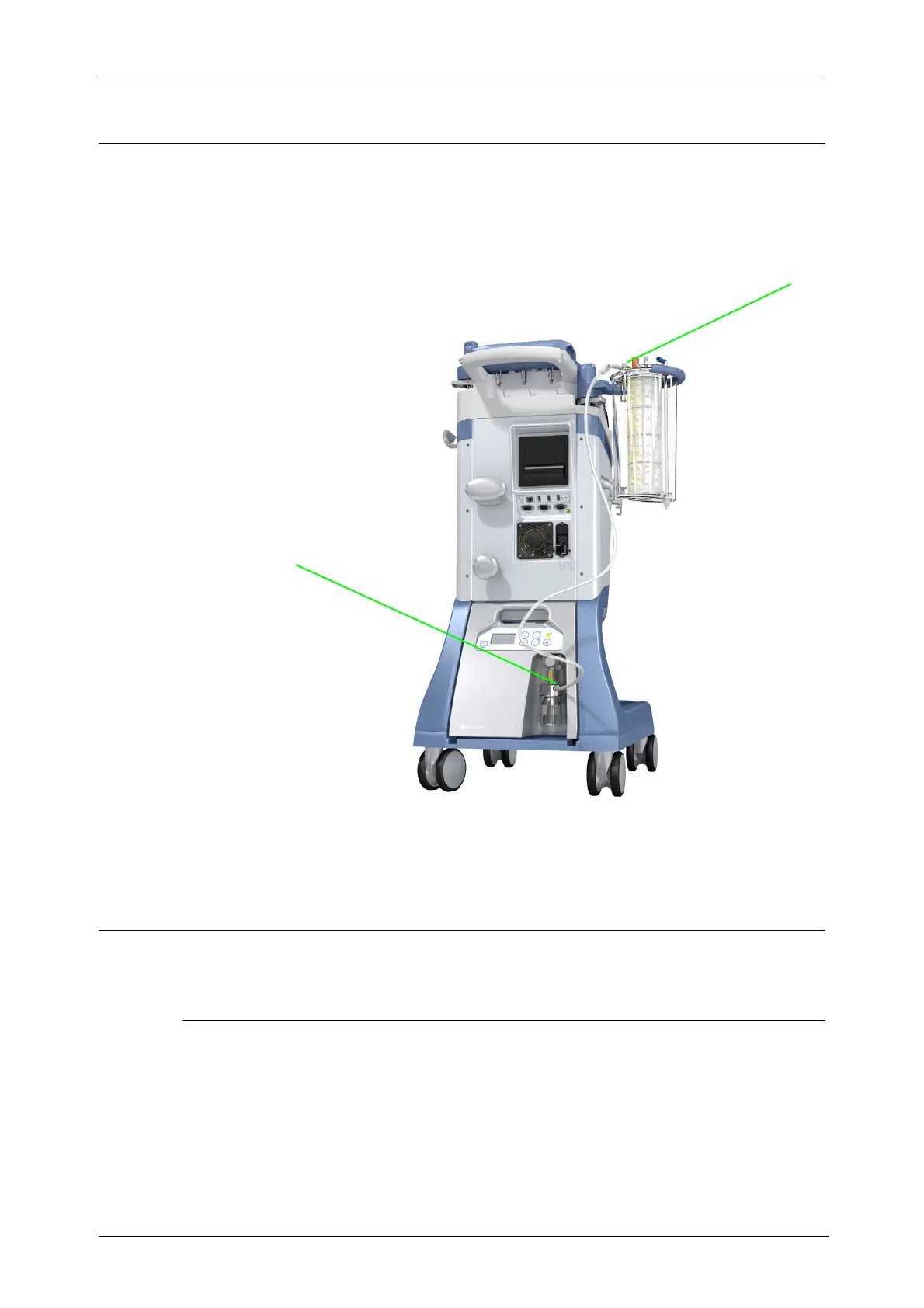

Figure 13-2 Vacuum Line Connecting Reservoir to Inlet Port
Performing a Blood Collection Procedure With the XVAC Module
XVAC Used Through the XTRA System Touch Screen Interface (Remote
Control)
The XVAC vacuum module may be used in combination with the XTRA system when it is installed into
the X
TRA cart and is connected to the XTRA via the power and serial communications cables:
1. Connect the X
VAC to the XTRA power supply (see Figure 13-3).
2. Connect the X
VAC RS422 female serial connector to the XTRA RS422 female serial connector using
the DB9 male to DB9 male cable (see Figure 13-3).
1
1 Vacuum port (yellow capped)
2 Vacuum inlet port
2
