sorin XTRA - Removal of the Overflow Trap from the Vacuum Pump; Figure; Composition of the Overflow Trap

Maintenance
X
TRA Operator’s Manual 20077/021 US 15-5
The trap should be removed and disassembled for cleaning. Push up on the quick-lock connector to
remove the trap from the vacuum system (see Figure 15-4).

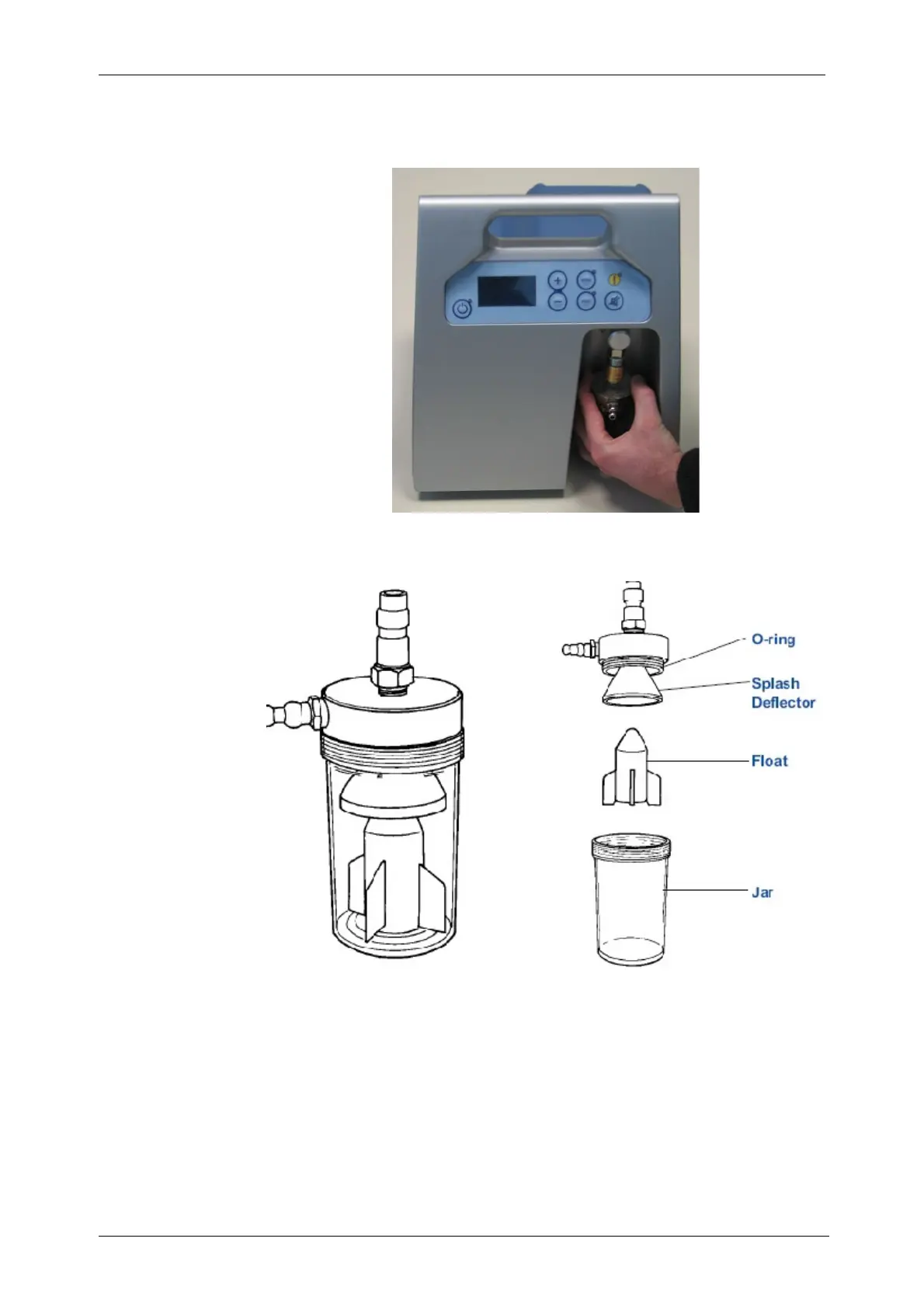

Figure 15-4 Removal of the Overflow Trap from the Vacuum Pump
The following drawing illustrates the disassembled parts of the overflow trap.
Figure 15-5 Composition of the Overflow Trap
After removing the trap from the XVAC do the following:
1. Unscrew the jar from the cap.
2. Remove the float from the jar; pull the rubber splash deflector from the base of the cap.
3. Clean all surfaces and air passages thoroughly; replace any worn or damaged parts.
4. Sparingly lubricate the rubber O-ring on the cap with Dow-Corning 111 silicone grease.
5. Reassemble the trap and reconnect to the X
VAC Vacuum System.
